Key Features

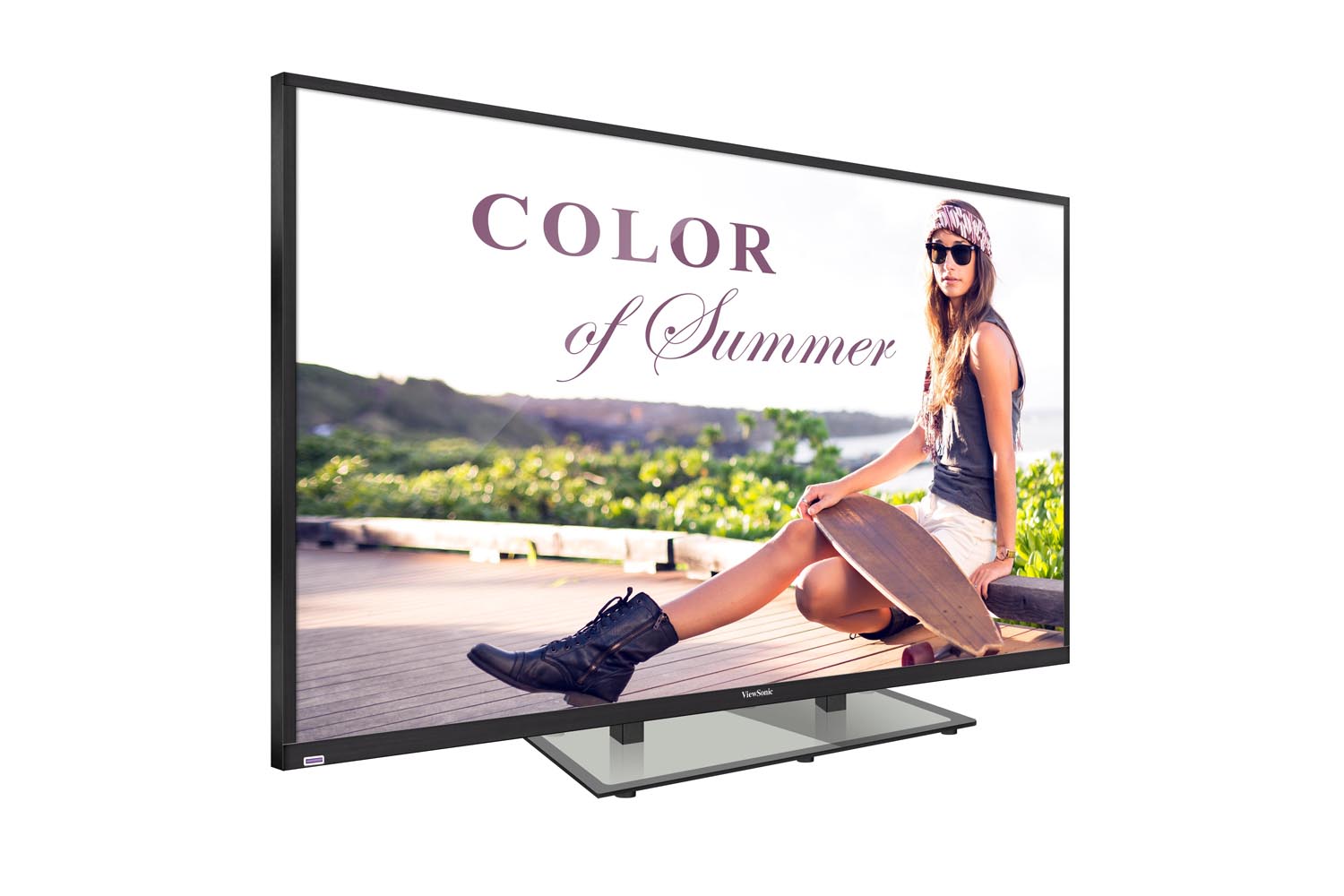

CDE6500-L
Product Description
The ViewSonic CDE6500-L is a 65’’ (64.5’’ viewable) commercial-grade LED display that provides high-impact messaging in hotels, restaurants, and other businesses. The built-in media player supports USB playback of photos and music, as well as direct content cloning with hospitality mode—this provides an easy and efficient way for loading content onto multiple displays. This display features Full HD resolution, SuperClear® wide-angle viewing technology, 350-nit brightness, 5000:1 native contrast ratio, and dual integrated 10W speakers to deliver crystal-clear multimedia content to targeted audiences. Versatile connectivity options include HDMI (x3), VGA, Composite, YPbPr, RS232, and SPDIF interface for easy installation and control of a variety of high-definition devices. It also supports RS232 with IR pass-through and HDMI CEC pass-through, providing easy management and control of multiple-display installations with connected HD set-top boxes, media players, and Blu-ray™ players.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 64.5"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 1428.5(H) x 803.5 (V) (64.5” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    Colors: 1.07Billion
    Brightness: 350 nits (typ.)
    Contrast Ratio: 5000:1 Typ.
    Response Time: 6.5ms
    Viewing Angles: H = 176, V = 176 typ.
    Backlight Life: 30,000 Hours Typ.
    Surface Treatment: AG coating (Haze 1%)
    Orientation: Landscape / Portrait
  • INPUT
    HDMI: x3
    RGB / VGA: x1
    Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
    CVBS: x1
    YPbPr: x1
    RS232: x1, w/ IR pass thru
  • OUTPUT
    Audio: x1 Earphone Out
    SPDIF: x1
    IR Pass Thru: thru RS232
    Remote Control Out: x1
  • USB
    Type A: x1
  • SPEAKERS
    10W x 2
  • COMPATIBILITY
    RGB PC/HDMI PC: Refer to timing table
    CVBS: 480i,576i
    YPbPr: 480i, 480p,720p, up to 1080p
    HDMI: 480i, 480p,720p, up to 1080p
  • CONTROLS
    Physical- Top OSD: PICTURE: Picture Settings Picture Mode(Power Saving/Dynamic/Stander/Movie/User),
    Screen Size ( Wide/Cinema/Zoom/Normal)
    PC Settings
    Color Temparature ( Normal/Warm/Cool)
    Backlight (Medium/High/Low)
    Advanced Picture Settings(Dynamic Contrast-Low/Medium/high/off; Film Mode-on/off; Noise Reduction-Low/Medium/high/off; MPEG Noise Reduction- low/Medium/high/off.
    SOUND: Sound Setting( Standard/Soft/User/Dynamc),Analog Sound, Digital Sound, Digital Audio Output, Equalizer Setting.
    PARENTAL: Lock Parent Control, V-CHIP,Change Password, Keypad Lock, Source Lock, System Lock.
    SETUP: Closed Caption, Menu Language( English/French/Spanish/German/Portuguese), Clock, OSD Transparency, OSD Timer.
    OTHERS: Blue Back, No Signal Power Off, No Operation Power Off, User Moniro, Audio Only, TV ID, All Reset.
    Multimedia: PICTURE: JPG
    AUDIO: MP3
  • POWER
    Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
    Consumption: 160W (typ), 180 W (max)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 400 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% @40°C non-condensing
  • DIMENSIONS
    (W X H X D)
    Physical (inch / mm): 57.6 x 37.1x 11.0 / 1462.8 x 942.4 x 280 (w/ stand)
    57.6 x33.8 x2.9 / 1462.8 x 857.1 x 74.3 (w/o stand)
    Packaging (inch / mm): 60.7x39.4x 8.9 / 1540 x 1000x 225 (w/o stand)
  • WEIGHT
    Net (lb / kg): 82.0 / 37.2 (w/o stand)
    92.3 / 42 (with Stand)
    Gross (lb / kg): 125.6 / 57
  • PACKAGE CONTENTS
    1. CDE6500-L display with glass stand 2. Remote control with batteries 3. Power cable 4. User Guide 5. Quick Start Guide 6. Screw driver

    *Actual content may differ from market to market
