Toets Features
  • 10-point PCAP Touch Technology
  • IP65 Dustproof & Water-resistant Screen
  • 24/7 Operation
  • MoHs 7 Scratch-Resistant Surface
  • VESA-mountable

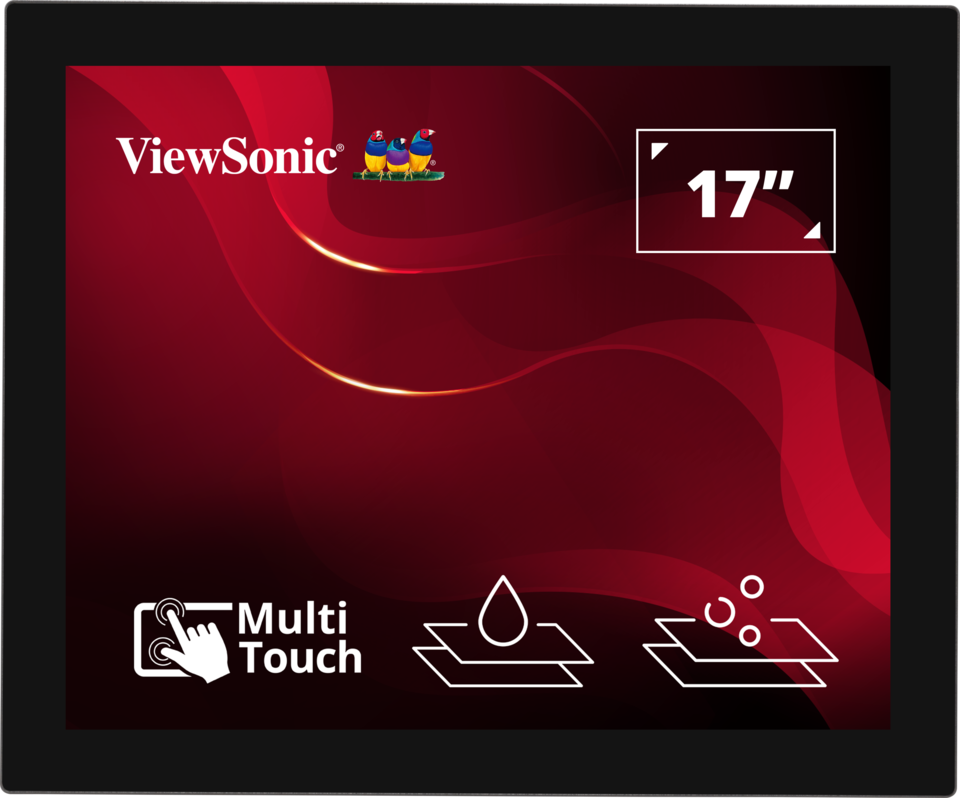

XF1740
Product Omschrijving
The ViewSonic XF1740 is an open-frame monitor designed for commercial and industrial applications, such as manufacturing, ensuring reliable 24/7 operation. Its durable 3mm thick glass screen protects against moisture and scratches, ensuring long-lasting performance. The intuitive 10-point PCAP touch technology delivers smooth, responsive interaction, enhancing the user experience. With versatile connectivity options, including HDMI, DisplayPort, and VGA, content sharing is simple and seamless. The VESA-compatible design allows for flexible installation on any surface or orientation. Optional features include a wide operating temperature range from -30°C to 85°C for demanding environments, stylus support with either EMP or MPP technology, and a light sensor that adjusts screen brightness for optimal visibility and energy efficiency.
  1. Speakers
  2. VESA Compatible(Wall Mount 75 x 75mm & 100 x 100 mm
  3. Menu Control Panel
  4. USB
  5. DC12V
  6. HDMI
  7. DP
  8. VGA
  9. PC IN
Bezoek Gebruikers
  • www.viewsonic.com
  • DISPLAY
    Aspectratio: 5:4
    Screen Size: 17"
    Active Area: 337.92 (H) x 270.34 (V)
    Pixel Pitch (mm): 0.26 (H) x 0.26 (V)
    Resolutie: 1280 x 1024
    Contrastverhouding: 1000:1
    Helderheid: 210 cd/m²
    Kijkhoeken: H:170° V:160°
    Reactietijd: 5 ms
    Display Colors: 16.7 M
    Levensduur achtergrondverlichting: 30,000 hrs
    Color Gamut: NTSC 72%
    Oppervlakte behandeling: Hard coating (7H)
    Cover Glass Thickness: 3 mm
    Touchscreen: PCAP 10 points
  • COMPATIBILITEIT
    PC-resolutie (max.): 1280 x 1024
    Mac Resolution (max): 1280 x 1024
    Besturingssysteem: Windows & macOS
  • CONNECTOR
    USB 2.0 Type-B: 1 (for touch screen only)
    3.5mm Audio in: 1
    HDMI: 1
    DisplayPort: 1
    VGA: 1
    Power In: DC socket
  • STROOM
    Power Consumption (typical): 12.98 W
    Power Consumption (max): 15 W
    Stand-by: 1.69 W
    Spanning: AC 100 - 240V, DC 12V/4A
  • BESTURING
    Fysieke controles: Auto, Menu, Left, Right, Exit, Power
    OSD: Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Reset
  • BEDRIJFSOMSTANDIGHEDEN:
    Temp. (operating): 0 - 50˚C (Non-condensation)
    Temp. (storage): -20 - 60˚C (Non-condensation)
    Luchtvochtigheid: 5-90 (%RH)
  • MUURBEVESTIGING
    VESA-compatibel: 75 x 75 mm & 100 x 100 mm
  • AFMETINGEN
    Physical (W x H x D): 390.4 x 324 x 48 mm
    Box (W x H x D): 470 x 420 x 140 mm
  • STYLUS SUPPORT
    Stylus: MPP 1.5 or later protocol supported (optional), EMR (optional)
  • INGRESS PROTECTION RATING
    IP65 front touchscreen
  • ALGEMEEN
    Package Contents: HDMI cable x1, USB A/B cable x1, 3-pin power cord x1, Quick start guide x1, AC/DC adapter x1
    Regulation / Compliance: FCC, CE, CB, RoHS
    Optional: Light sensor, Wide temperature (-30 - 85˚C)
  • MATERIAL
    Conductive ABS (for capacitive touch compatibility)
