Toets Features
  • Android 8.1 embedded OS
  • myViewBoard digital whiteboard software
  • ViewBoard® Cast Content Sharing Software
  • HDMI output naar extern display
  • Interactief 'front-facing' lesgeven en samenwerken
  • Met ingebouwde camera 5MP auto-focus

ViewBoard Mini IFP2410

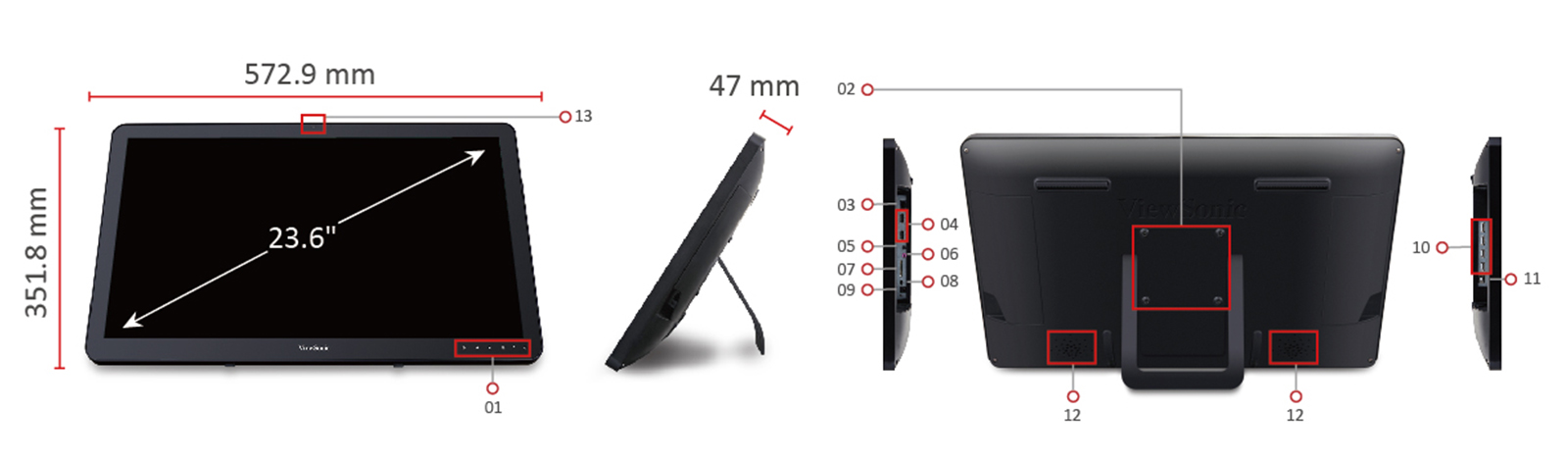

Product Omschrijving

  1. Menu Controls
  2. VESA Compatible (Wall Mount 100 x 100 mm)
  3. LAN
  4. HDMI/MHL In/Out
  5. Audio In
  6. Headphone
  7. SD Card Reader
  8. Mini USB
  9. DC Power In
  10. USB 2.0 x 4
  11. USB Type-B
  12. Internal Speakers
Bezoek Gebruikers
  • www.viewsonic.com
  • DISPLAY
    Paneelgrootte: 23.6"
    Type/Tech: TFT liquid crystal display
    Display Area (mm): 544.8(H) x 320.5 (V) (23.6” diagonal)
    Aspectratio: 16:9
    Native Resolution: 1920 x 1080
    Helderheid: 250 nits (typ.)
    Contrast Ratio: 3000:1 Typ.
    Kijkhoeken: H = 178, V = 178 typ.
    Levensduur achtergrondverlichting: 40,000 Hours Typ.
    Oriëntatie: Landscape
  • PLATFORM
    Processor: ARM based SoC
    RAM: 2GB DDR3
    Opslag: 16GB EMMC iNand
  • TOUCH
    Type/ Tech: PCAP touch technology
    Touch Point: 10 points touch, 10 points writing
  • INPUT
    HDMI: x1
    Audio: x1 PC audio(3.5 mm)
    SD/SDHC: Yes
  • OUTPUT
    HDMI: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x4
    Type B: x1 for touch
    Mini USB: x1 ( For OTG)
  • CAMERA
    Secondary Camera (Front): View Angle Free (R/L 178 – Typ.)
    Reactietijd: 5.0MP Autofocus
  • SPEAKERS
    SPEAKERS: 2.5Wx2
  • COMPATIBILITY
    HDMI: 480i, 480p,720p,1080i,1080p
  • EMBEDDED OS
    Embedded OS: Android 8.1
  • USB SUPPORTED FILE FORMAT
    USB SUPPORTED FILE FORMAT: Text: TXTJPEG/BMP/ GIF (non-animated)
    Picture: AVI/RM/ RMVB/ MOV/ FLV/ 3GP/ MP4/MKV
    Video: Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps

    Audio: AAC/ APE/ WMA/ MP3/ OGG/ WAV/ FLAC
  • BUNDELSOFTWARE
    Basis annotatiesoftware: myViewboard for Android
    Draadloze presentatie met Touch Feedback: Viewboard Cast: vCastReceiver
  • POWER
    Spanning: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: 35W (typ), 40W (max)
    < 0.5W ("Off")
  • ERGONOMICS
    Wandmontage (VESA®): 100 x 100
  • OPERATING CONDITIONS
    Temperatuur (º C): 5°C to 40°C (Landscape only)
    Humidity: 20% ~ 90% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (mm): 572.9 x 351.8 x 47mm
    Packaging (mm): 643 x 435 x 140 mm
  • WEIGHT
    Net (kg): 5.64 kg
    Gross (kg): 7.56 Kg
  • REGULATIONS
    REGULATIONS: FCC, cUTVus, FCC-ID, IC-ID, CE, CB, R&TTE, RoHS, ErP, WEEE
  • PACKAGE CONTENTS
    PACKAGE CONTENTS: 1. IFP2410
    2. Power adapter
    3. Power cord (depend on regions.)*
    4. Quick Start Guide
    *Applicable power cord is shipped with the product to the point of destination. (VSA: US ; VSE: EU+UK ; VSCN: CN)
