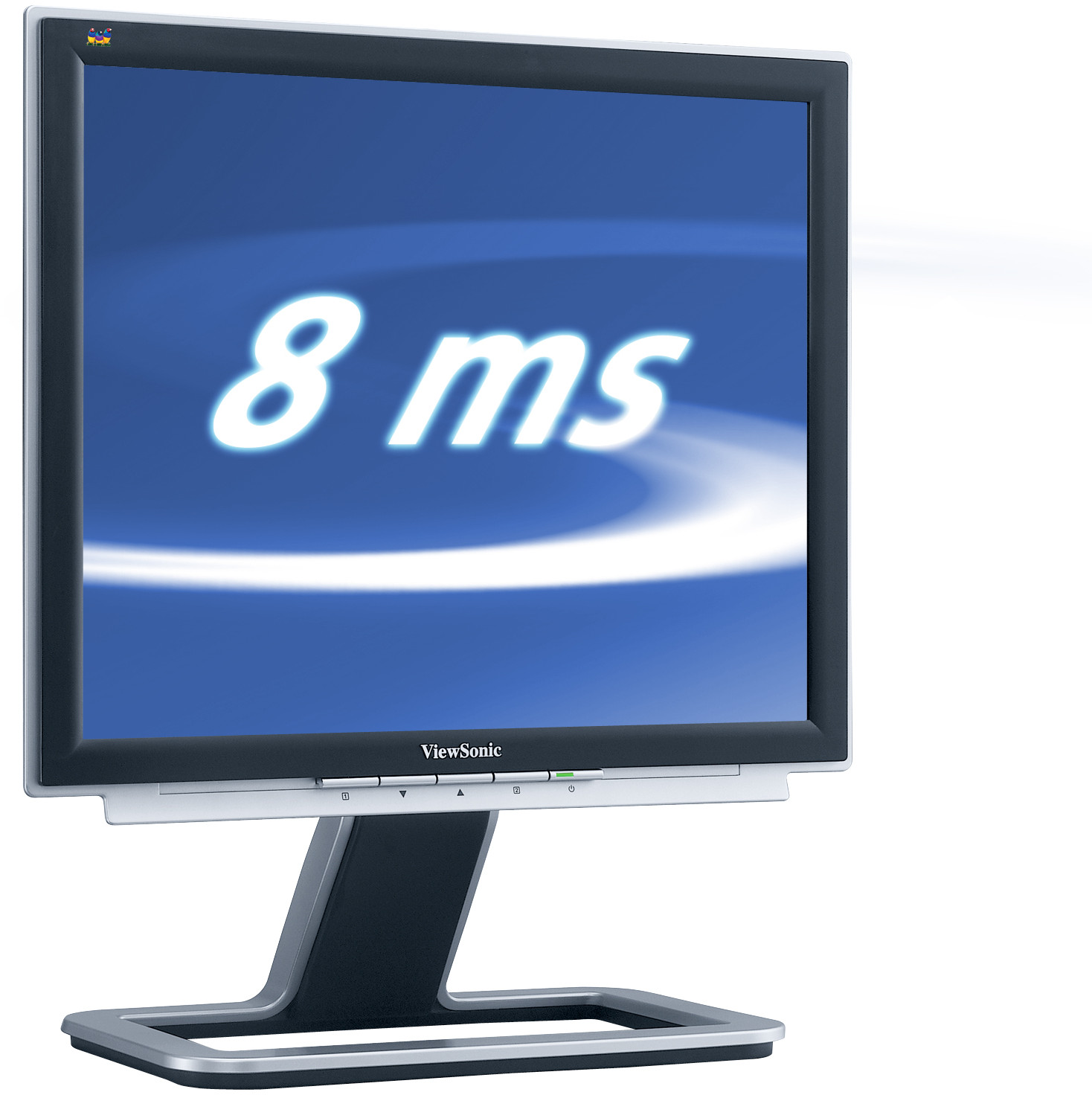

VX712
Product Omschrijving
Bezoek Gebruikers
  • www.viewsonic.com
  • LCD
    Type: 43cm / 17" TN colour TFT active matrix SXGA LCD
    Contrast Ratio: 500:1 (typ.)
    Kijkhoeken: 140° horizontal, 130° vertical (at 10:1)
    160° horizontal, 160° vertical (at 5:1)
    Display Area: 33,8cm horizontal x 27.0cm vertical, 43.2cm diagonal
    Optimum Resolution: 1280 x 1024
    Reactietijd: 8ms (off-on-off) (typ.)
    Panel Surface: 300cd/m²
    Pixel Pitch: 0.264mm
    Colour Support: 16.2M colours (6-bit+2-bit FRC)
    Pixel Clock: 135MHz
    Helderheid: 300cd/m²
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz)
  • DIMENSIONS
    W x H x D mm: 388 x 438 x 176 (with stand)
    388 x 332 x 61 (without stand)
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start
    Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • WARRANTY
    Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
  • INPUT
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
    Digital: DVI-D (TMDS, 100 ohm)
    Frequency: Fh: 24 – 82kHz, Fv: 50 – 85Hz
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Audio (input/output): 3.5mm stereo audio line-in
    Power: 3-pin (CEE22)
  • POWER
    Spanning: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
    Consumption: 35 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power on/off, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), colour adjust
    (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency,
    pixel clock, model number, serial number, website), manual image adjust (H/V
    position, H size, fine tune, sharpness), setup menu (language, resolution notice,
    OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperatuur: 0°C to 40°C
    Humidity: 20% to 90% (non-condensation)
  • WEIGHT
    Net: 5.0kg (with stand), 3.5kg (without stand)
  • POWER MANAGEMENT
    LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start
    Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FPMPMI 100mm x 100mm
  • ERGONOMICS
    Kantelen: Down 5°, Up 20°
  • AUDIO
    Speakers: 2 x 1 watt
