LED Display

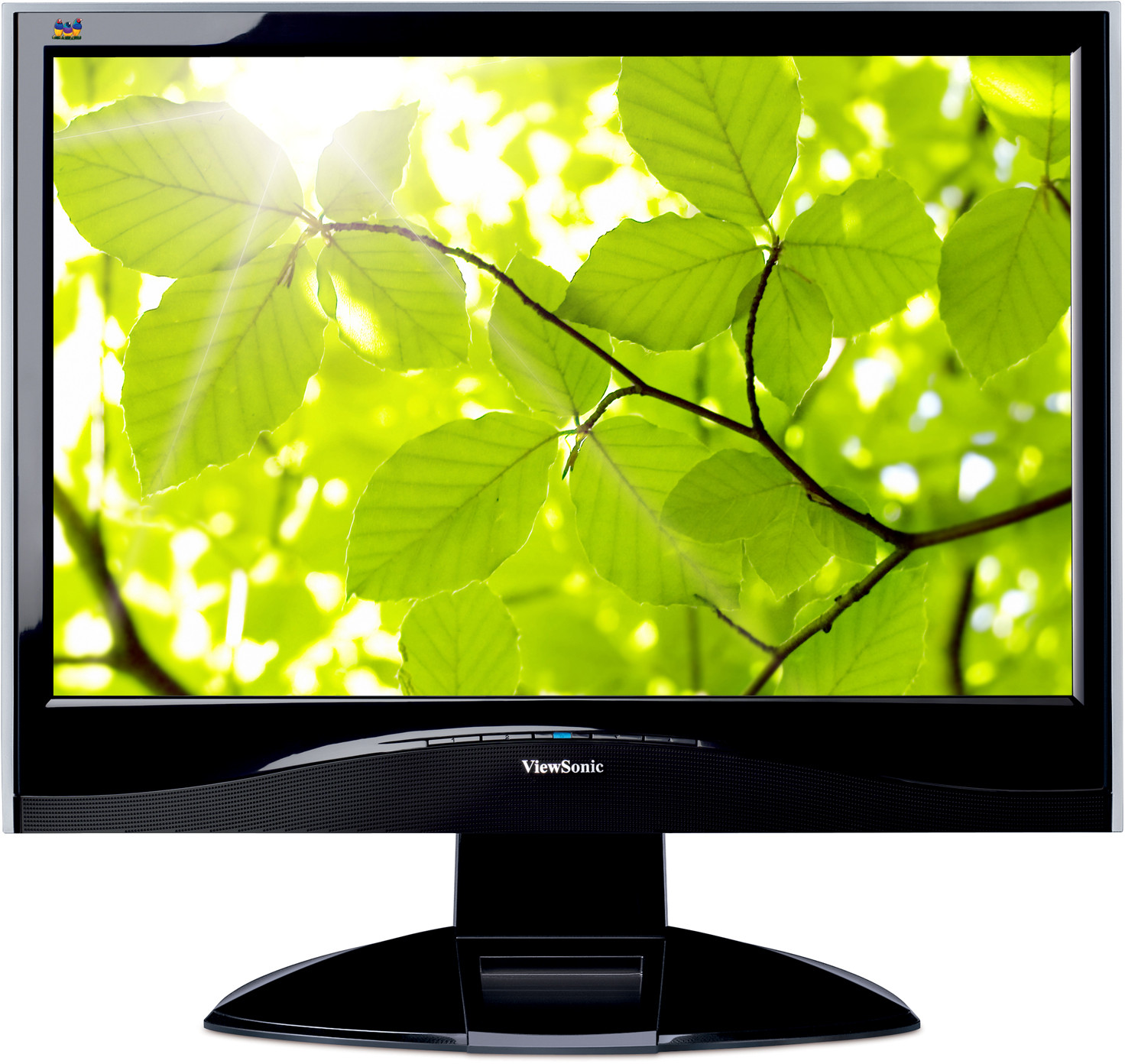

VX1932wm-LED
Toets Features
Product Omschrijving
Bezoek Gebruikers
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 49 cm / 19" wide Color TFT Active Matrix LCD Contrastverhouding: 1000:1 (typical) Kijkhoeken: 170° (H), 160° (V) (CR≧10) Display Area: 474mm(H)×296mm(V) / 18.6in(H)×11.6in(V) Optimum Resolution: 1440 x 900 Reactietijd: 5 ms (G to G) Lichtbron: 30,000 (typical) (White LED) Panel Surface: Anti-glare Pixel Pitch: 0.282 mm(H) x 0.282 mm(V) Helderheid: 250 cd/m² (typical) Dynamische contrastverhouding: >1,000,000:1 (Mega) -
COMPATIBILITY
PC: VGA up to 1440x900 Non Interlaced Mac®: Mac OS (up to 1440x900 ) -
DIMENSIONS
Fysiek (BxHxD): 450 mm x 434 mm x 209 mm (
17.7" x 17" x 8.2") -
CONNECTOR
Digital: DVI-D x 1 Analog: 15 pin mini D-sub x 1 -
POWER
Spanning: 100-240VAC; 50/60 Hz Consumptie: 15.5 W (typical) / 19.5 W (maximum) -
CONTROLS
Basic: [1], [2], Soft power button, Up[▲], Down[▼] Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust (sRGB,
9300K, 6500K, 5400K, User Color [R, G, B]), Information,Manual Image
Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness, Aspect Ratio,
ECO Mode), Setup Menu (Language Select, Resolution Notice, OSD
Position, OSD Time Out, OSD), Background, Memory Recall -
OPERATING CONDITIONS
Temperatuur: 0°C - 40°C (32°F - 104°F) Luchtvochtigheid: 20% to 80% (no condensation) -
WEIGHT
Netto: 4.7 Kg (10.3 lbs) -
VIDEO INPUT
Frequency: Fh: 24 – 82 kHz , Fv : 50 – 75 Hz Sync: H/V Separated, Composite, Sync On Green(TTL) Analogue: RGB Analogue (75 ohms, 0.7 Vp-p) Digital: DVI-D (TMDS, 100 ohms) -
VESA MOUNT COMPLIANT
Meet VESA (100mm x 100mm) Standards -
ERGONOMICS
Kantelen: 20 ~ -5 degrees -
AUDIO
Speakers: 2W x 2
