LED Display

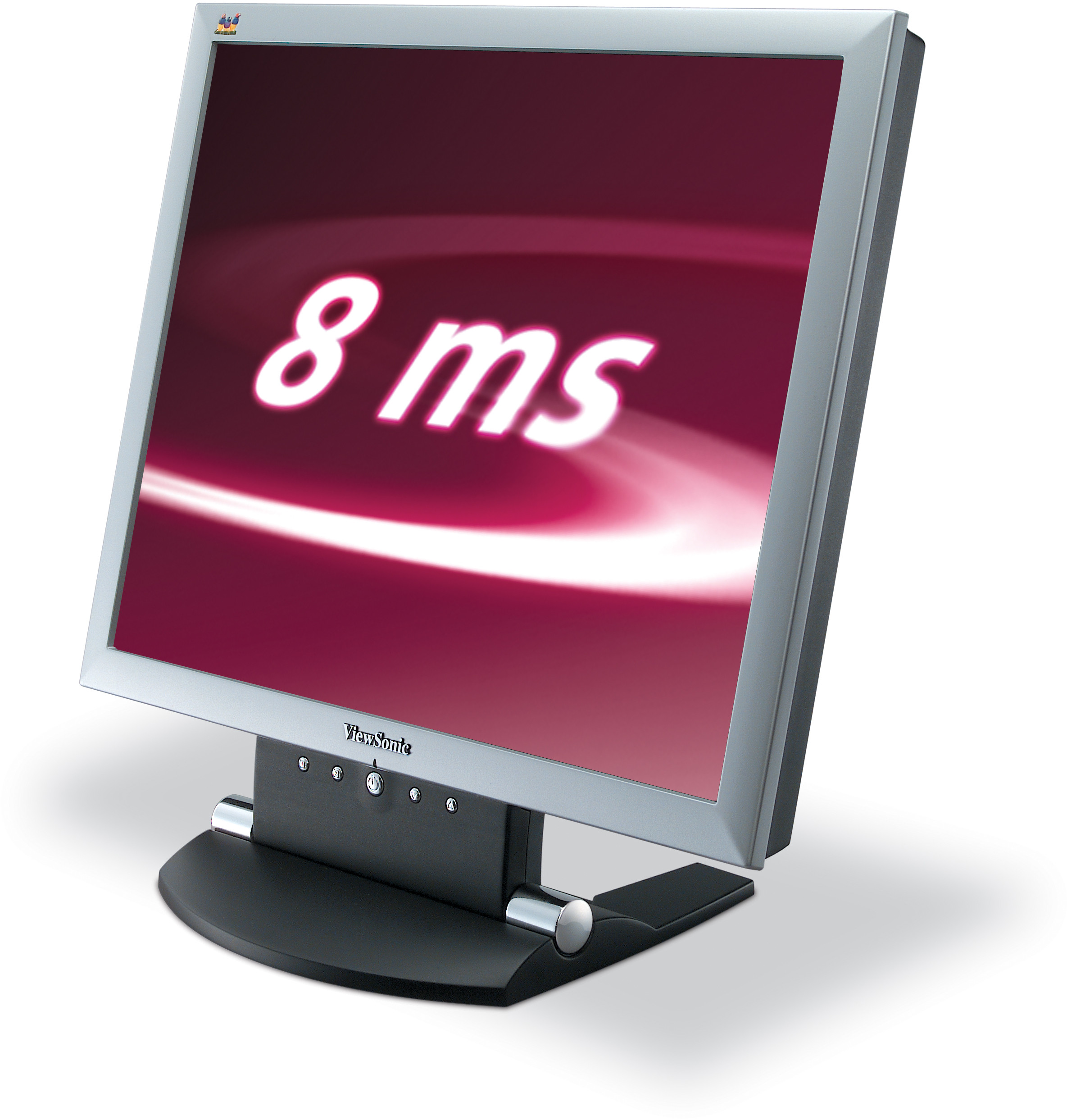

VA902
Toets Features
Product Omschrijving
Bezoek Gebruikers
- www.viewsonic.com
-
LCD
Type: 48 cm / 19" TN-Colour TFT Active Matrix SXGA LCD Contrastverhouding: 600:1 (typ.) Kijkhoeken: 140° horizontal, 130° vertical @ 10:1
160° horizontal, 150° vertical @ 5:1Helderheid: 250cd/m² (typ.) Display Area: 376mm horizontal x 301mm vertical; 48.3cm diagonal Optimum Resolution: 1280 x 1024 Reactietijd: 8ms (typ.) Panel Surface: Anti-glare 3H Pixel Pitch: 0.294mm Colour Support: 16.2M colours (6-bit + 2-bit FRC) Pixel Clock: 135MHz -
COMPATIBILITY
PC: 15-pin mini D-Sub (detachable cable) Mac®: Power Mac™ G3/G4/G5 1152 x 870 (@ max. 75Hz) -
DIMENSIONS
Fysiek (mm): 414 x 407 x 219 -
VERPAKKINGSINHOUD
LCD display, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD -
INPUT
Sync: H/V separated (TTL) Frequency: Fh: 30-82kHz, Fv: 50-85Hz Video: RGB analogue (75 ohms, 0.7 Vp-p) -
CONNECTOR
Analogue: 15-pin mini D-Sub (attached cable) Stroom: 3-pin AC plug, (CEE22) -
POWER
Spanning: AC 100–240V, 50–60Hz (auto switch), internal power supply Consumptie: 35W (typ.); ≤ 1 watt in power save mode -
CONTROLS
OSD: Auto image adjust, brightness, contrast, ViewMatch® colour adjust
[sRGB, 9300K, 6500K (default), 5400K, user colour (R,G,B)],
information [resolution, H. frequency, V. frequency, pixel clock,
model number, serial number], manual image adjust [H. size,
H./V. position, fine tune, sharpness, scaling], setup menu
[language (English, French, German, Italian, Spanish, Finnish,
Japanese, Traditional Chinese, Simplified Chinese),
resolution notice, OSD position, OSD timeout, OSD background],
memory recall, OSD lock, power lockPhysical: Power on/off, menu, down, up, select -
OPERATING CONDITIONS
Temperatuur: 0°C to 40°C Luchtvochtigheid: 10% to 90% (non-condensation) -
WEIGHT
Netto: 5.4kg -
POWER MANAGEMENT
Meets TCO’03, ENERGY and Energy Star standards -
ERGONOMICS
Down 5°, Up 20°
