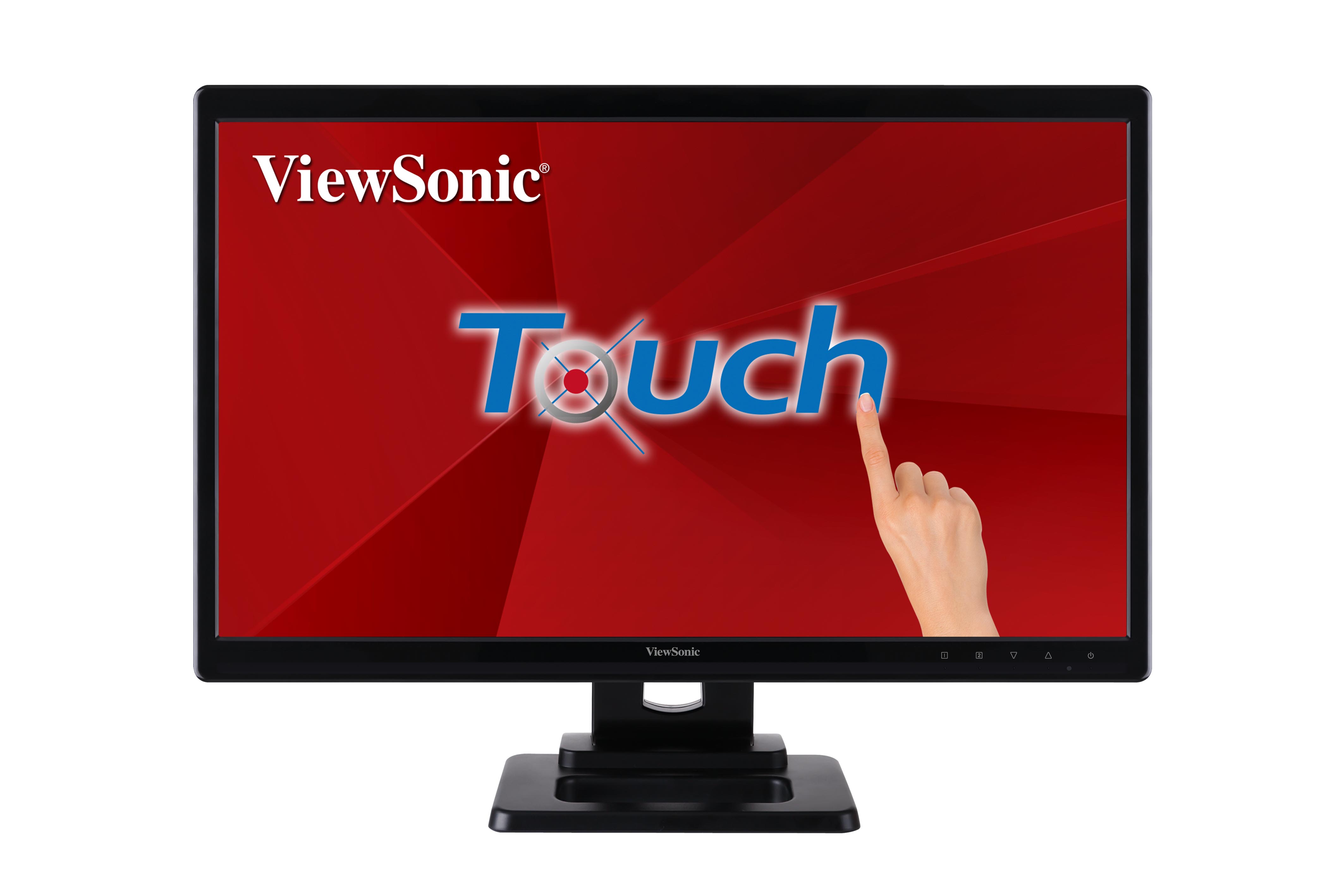

ViewSonic TD2420 24" FHD 2 Points Touch LED Monitor with VGA, DVI, HDMI, Speakers and Touch Pen

Toets Features

Product Omschrijving

The ViewSonic® TD2420 is the perfect solution for both commercial and consumer touch screen applications. With an intuitive multi-touch LED display, interactive stylus, and full HD resolution, the TD2420 delivers a versatile touch solution for use as a POS display, information kiosk, or in hospital and classroom environments. With Windows® 8 compatible Dual Point Optical technology, the TD2420 provides a fun and interactive experience to engage users. Equipped with 1920x1080 Full HD resolution, and 20,000,000:1 MEGA Dynamic Contrast Ratio, the ViewSonic TD2420 delivers extremely sharp and crisp images. As a complete multimedia package, the display also includes a pair of integrated 2-watt speakers with SRS Premium Sound®. HDMI, VGA, and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional convenience for use as a wall-mounted display. The versatile TD2420 is the one-stop solution for your multi-touch display needs.

Bezoek Gebruikers

www.viewsonic.com

LCD

Type:	24" (23.6" viewable) Wide Color TFT Active Matrix LED
Optimum Resolution:	1920x1080
Contrastverhouding:	1000:1 (typ.)
Kijkhoeken:	170º horizontal, 160º vertical
Reactietijd:	5ms (typ.)
Panel Surface:	hard-coating (7H)
Display Area:	20.5" horizontal x 11.5" vertical; 23.6" diagonal 521.28(W) x 293.22(H) mm
Helderheid:	210 cd/m² (typ)
Dynamische contrastverhouding:	20,000,000:1
Backlight:	White-light LED
Levensduur achtergrondverlichting:	30,000 hours (min.)

VIDEO-INGANG

Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Digital: HDMI, DVI (TMDS, 100 ohms)

Frequency: Fh: 24~82kHz, Fv: 50~75Hz

Sync: Separate Sync
COMPATIBILITEIT

PC: PC compatibles (Windows® 7 / 8 Operating System)
CONNECTOR

Audio: Audio In (3.5mm mini-jack)
Headphone (3.5mm mini-jack)

Stroom: Internal power board, 3-pin plug (CEE22)
BESTURING

Front Panel: 1, 2, Down, Up, Power
DIMENSIONS

Fysiek (mm): 622.29 x 459.30 x 192.50

Physical (in): 24.49" x 18.08" x 7.57"

Packaging: 678 x 525 x 179

26.69" x 20.66" x 7.04"
POWER

Conserve: 20W (typ.)

Spanning: AC 100–240V (universal), 50 / 60Hz

Consumptie: 25W (typ.)

Optimize: 22W (typ.)
WEIGHT

Net With Stand: 6.6 kg (3 lbs)

Net Without Stand: 5.23 kg (2.38lbs)

Bruto: 8.1kg (3.68lbs)
VESA® MOUNT

100mm * 100mm
POWER MANAGEMENT

Eco Mode
ERGONOMICS

Kantelen: -2° ~ 18° degrees
OPERATING CONDITIONS

Temperatuur: 32° F to 104° F (0° C to 40° C)

Luchtvochtigheid: 10% to 90% (no condensation)
AUDIO OUT

Speakers: 2W x2
VERPAKKINGSINHOUD

AC/DC Adaptor *1, Power Cable *1，Audio Cable *1, VGA Cable*1，Quick Start Guide *1, ViewSonic CD Wizard *1 USB cable *1, DVI cable *1, stylus*1

Analog:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Digital:	HDMI, DVI (TMDS, 100 ohms)
Frequency:	Fh: 24~82kHz, Fv: 50~75Hz
Sync:	Separate Sync

Audio:	Audio In (3.5mm mini-jack) Headphone (3.5mm mini-jack)
Stroom:	Internal power board, 3-pin plug (CEE22)

Fysiek (mm):	622.29 x 459.30 x 192.50
Physical (in):	24.49" x 18.08" x 7.57"
Packaging:	678 x 525 x 179 26.69" x 20.66" x 7.04"

Conserve:	20W (typ.)
Spanning:	AC 100–240V (universal), 50 / 60Hz
Consumptie:	25W (typ.)
Optimize:	22W (typ.)

Net With Stand:	6.6 kg (3 lbs)
Net Without Stand:	5.23 kg (2.38lbs)
Bruto:	8.1kg (3.68lbs)

Temperatuur:	32° F to 104° F (0° C to 40° C)
Luchtvochtigheid:	10% to 90% (no condensation)
