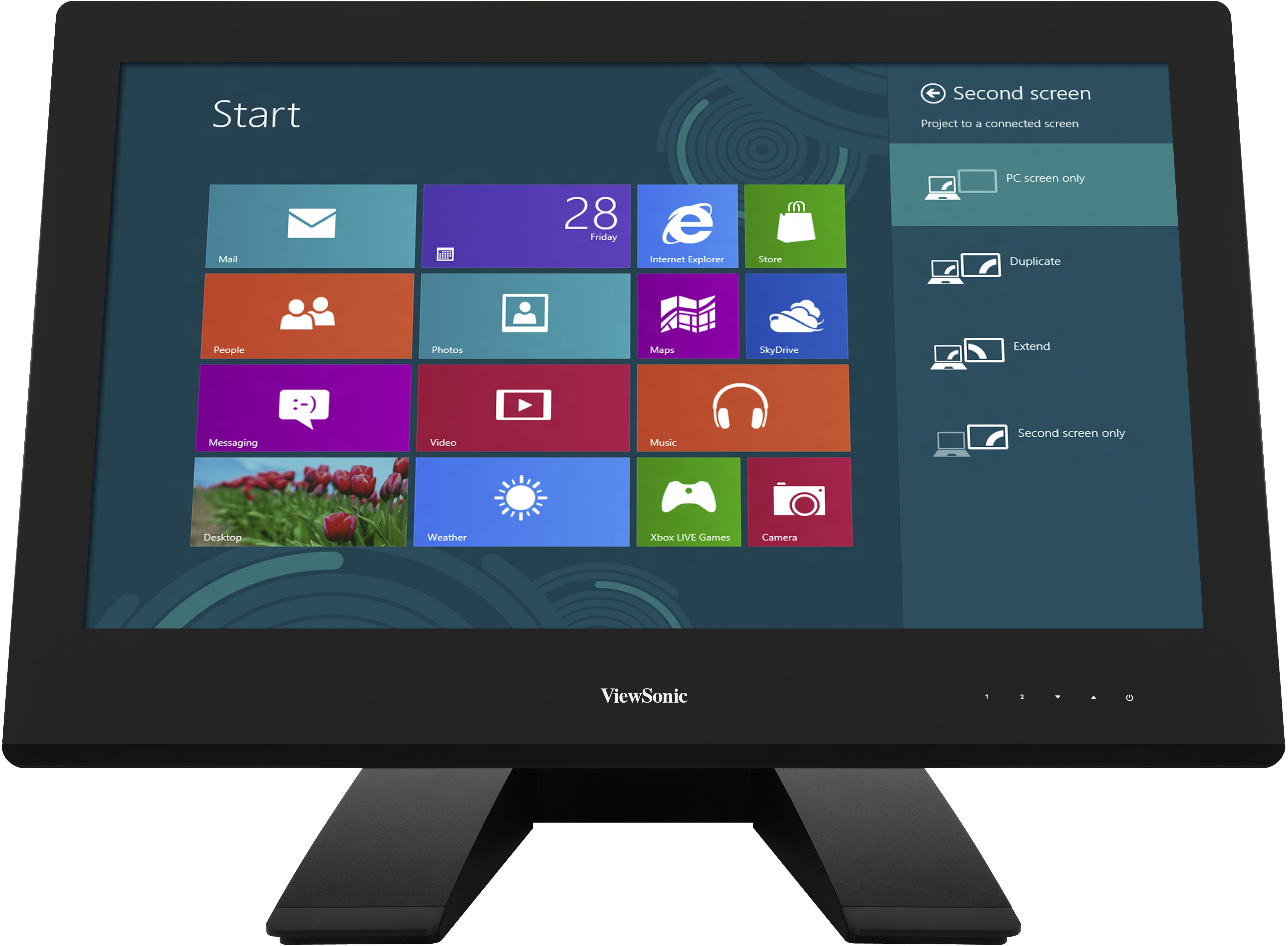

ViewSonic TD2340 23" FHD 10 Points Touch Flicker Free IPS LED with VGA, HDMI, DisplayPort, 2 USB, Speakers, Pivot and Height adjustment

Toets Features

Product Omschrijving

Exceptional interactivity comes standard in the ViewSonic® TD2340 Windows® 8 certified 23"" 10-point multi-touch IPS monitor. 1920x1080 Full HD resolution with projected capacitive touch technology delivers seamless and accurate touch experience. Stunning color performance with IPS technology and 20,000,000:1 MEGA Dynamic Contrast Ratio. Integrated speakers with SRS Premium Sound® complete the multimedia package. DisplayPort®, HDMI, VGA inputs provide flexible and convenient connectivity. Dual hinge stand design ensures outstanding ergonomic comfort and productivity. Even VESA mountable design for additional convenience. The TD2340 is fully USB HID compliant and certified with Windows 8. This is the gateway to the new world of interactivity.

Bezoek Gebruikers

www.viewsonic.com

LCD

Type:	23" Wide Color TFT Active Matrix LED
Optimum Resolution:	1920x1080
Contrastverhouding:	1000:1 (typ.)
Kijkhoeken:	178º horizontal, 178º vertical
Reactietijd:	7ms (typ.)
Panel Surface:	hard-coating (7H)
Display Area:	20.0" horizontal x 11.3" vertical; 23.0" diagonal
Helderheid:	250 cd/m² (typ.)
Dynamische contrastverhouding:	20,000,000:1
Backlight:	White-light LED
Levensduur achtergrondverlichting:	30,000 hours (min.)

VIDEO-INGANG

Digital: HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)

Frequency: Fh: 24~83kHz, Fv: 50~76Hz

Sync: Separate Sync

Analogue: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
COMPATIBILITEIT

PC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)

Mac®: Power Mac (up to 1920 x 1080)
CONNECTOR

Analog: 15-pin mini D-sub (VGA)

Audio: Audio In (3.5mm mini-jack)

Earphone Out (3.5mm mini-jack)

USB: USB x2, USB Upstream x1

Stroom: Internal power board, 3-pin plug (CEE22)
BESTURING

Front Panel: 1, 2, Down, Up, Power

DIMENSIONS

Physical Without Stand:	22.7 x 17.9 x 2.6 in. / 576.6 x 453.8 x 66.5 mm
Packaging:	26.4 x 20.1 x 9.2 in. / 671 x 510 x 234 mm
Physical With Stand:	22.7 x 17.9 x 12.8 in. / 576.6 x 453.8 x 324.5 mm

WARRANTY

Three-year limited warranty on parts, labor and backlight.
RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.
POWER

Consumptie: w/o audio 22W (typ.) / w/ audio 45W (typ.)

Optimize: 23W (typ.)

Conserve: 18.5W (typ.)

Spanning: AC 100–240V (universal), 50 / 60Hz
VESA® MOUNT

100mm x 100mm
POWER MANAGEMENT

ENERGY STAR® standards / EPEAT Gold
ERGONOMICS

Rotation: 90º

Kantelen: 50º~-5º
WEIGHT

Net With Stand: 20.4 lb. / 9.2 kg

Net Without Stand: 14.5 lb. / 6.6 kg

Bruto: 26.9 lb. / 12.2 kg
OPERATING CONDITIONS

Temperatuur: 32–104º F (0–40º C)

Luchtvochtigheid: 20–90% (non-condensing)
AUDIO OUT

Speakers: 2-watt (x2)
VERPAKKINGSINHOUD

TD2340 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)

Digital:	HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)
Frequency:	Fh: 24~83kHz, Fv: 50~76Hz
Sync:	Separate Sync
Analogue:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

PC:	PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)
Mac®:	Power Mac (up to 1920 x 1080)

Analog:	15-pin mini D-sub (VGA)
Audio:	Audio In (3.5mm mini-jack) Earphone Out (3.5mm mini-jack)
USB:	USB x2, USB Upstream x1
Stroom:	Internal power board, 3-pin plug (CEE22)

Consumptie:	w/o audio 22W (typ.) / w/ audio 45W (typ.)
Optimize:	23W (typ.)
Conserve:	18.5W (typ.)
Spanning:	AC 100–240V (universal), 50 / 60Hz

Net With Stand:	20.4 lb. / 9.2 kg
Net Without Stand:	14.5 lb. / 6.6 kg
Bruto:	26.9 lb. / 12.2 kg

Temperatuur:	32–104º F (0–40º C)
Luchtvochtigheid:	20–90% (non-condensing)

Rotation:	90º
Kantelen:	50º~-5º
