Smart Display
SD-A245
Toets Features
Product Omschrijving

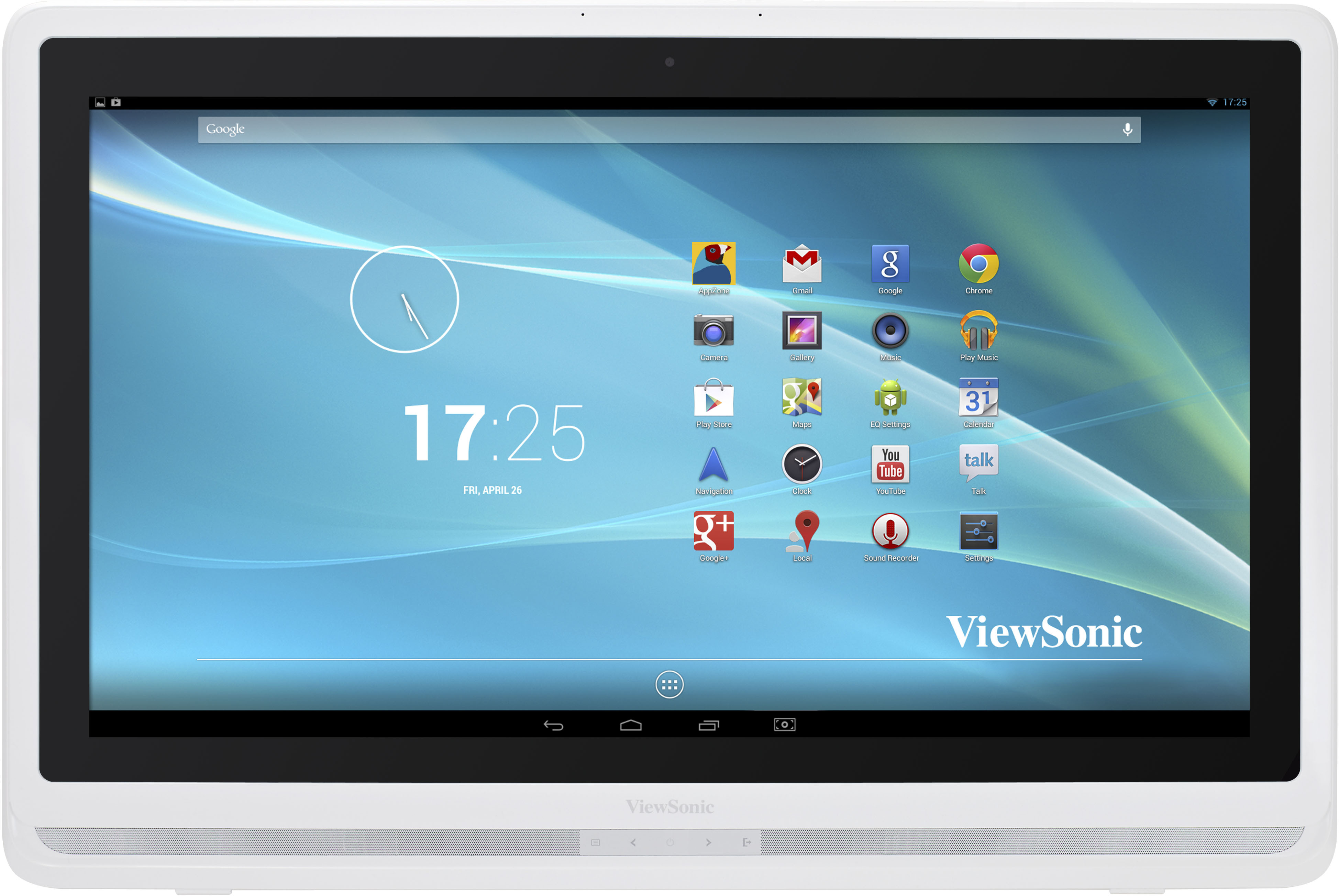

The ViewSonic SD-A245 is a 24” (23.8” viewable) multi-touch Smart Display with 1920 x 1080 Full HD resolution. It features a NVIDIA Tegra 33 1.7Ghz processor and Citrix® XenMobile® to provide a manageable, locked-down solution for enterprise. Versatile connectivity options include HDMI (MHL), two full-size USB ports, micro & mini USB, SD card reader, RJ45 and headphone jack, and also a 2M-pixel webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents and multimedia files. Integrated speakers with the ViewSound Premium Audio system complete the package for multimedia enjoyment. The SD-A245 provides the security and control needed on your desktops to leverage the investments being made in mobile and cloud-based tools.
Bezoek Gebruikers
- www.viewsonic.com
-
LCD
Type: 24" (23.8" viewable) Wide Colour TFT Transmissive LED Contrastverhouding: 1000:1 (typ.) Kijkhoeken: 170º horizontal, 160º vertical Display Area: 19.0" horizontal x 10.7" vertical; 23.8" diagonal Optimum Resolution: 1920 x 1080p Reactietijd: 5ms (typ.) Helderheid: 250 cd/m2 Backlight: White-light LED Levensduur achtergrondverlichting: 30,000 hours (min.) Touch Controller: Dual touch with pinch and zoom Touch Panel: Optical touch type, with glass 8H -
COMPATIBILITY
PC: PC-compatible (from VGA up to 1920x1080 non-interlaced) -
DIMENSIONS
Fysiek (BxHxD): 24.0 x 18.9 x 3.0 in. / 610 x 480 x 75 mm Packaging: 29.0 x 20.5 x 6.5 in. / 735 x 520 x 164 mm -
WARRANTY
**Warranty offered may differ from market to market -
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws -
CONNECTOR
HDMI (input): HDMI (with MHL) USB: Type A (x2), micro USB (x1), mini USB (x1) Audio: Headphone jack Card Reader: SD card LAN: RJ45, Wi-Fi 802.11 b/g/n, Bluetooth V2.1 Stroom: DC-In jack (ID 1.7mm, OD 4.0mm) Speaker: 2W (x2) -
POWER
Spanning: AC-DC power (Input: 100V~240V / Output: DC 19V , 3.4 A) Consumptie: 65 Watt (typ.) -
VESA® MOUNT
100 x 100 mm -
CAMERA
2.0MP – HD 1080p -
ERGONOMICS
Kantelen: 15º – 70º -
WEIGHT
Bruto: 18.7 lb. / 8.5 kg Netto: 15.9 lb. / 7.2 kg -
OPERATING CONDITIONS
Luchtvochtigheid: 20–90% (non-condensing) Temperatuur: 32–104º F (0–40º C) -
VERPAKKINGSINHOUD
SD-A245 smart display client, power cord and adapter, micro USB cable, mini USB cable, Quick Start Guide
*Actual content may differ from market to market -
SYSTEM
CPU Processor: NVIDIA® Tegra® 3 Quad-Core 1.7GHz Besturingssysteem: Android™ 4.2 Jelly Bean System Memory: LPDDR3 1GB Storage Memory: 8GB (eMMC4.4) Internal MIC: Echo cancelling
