Toets Features

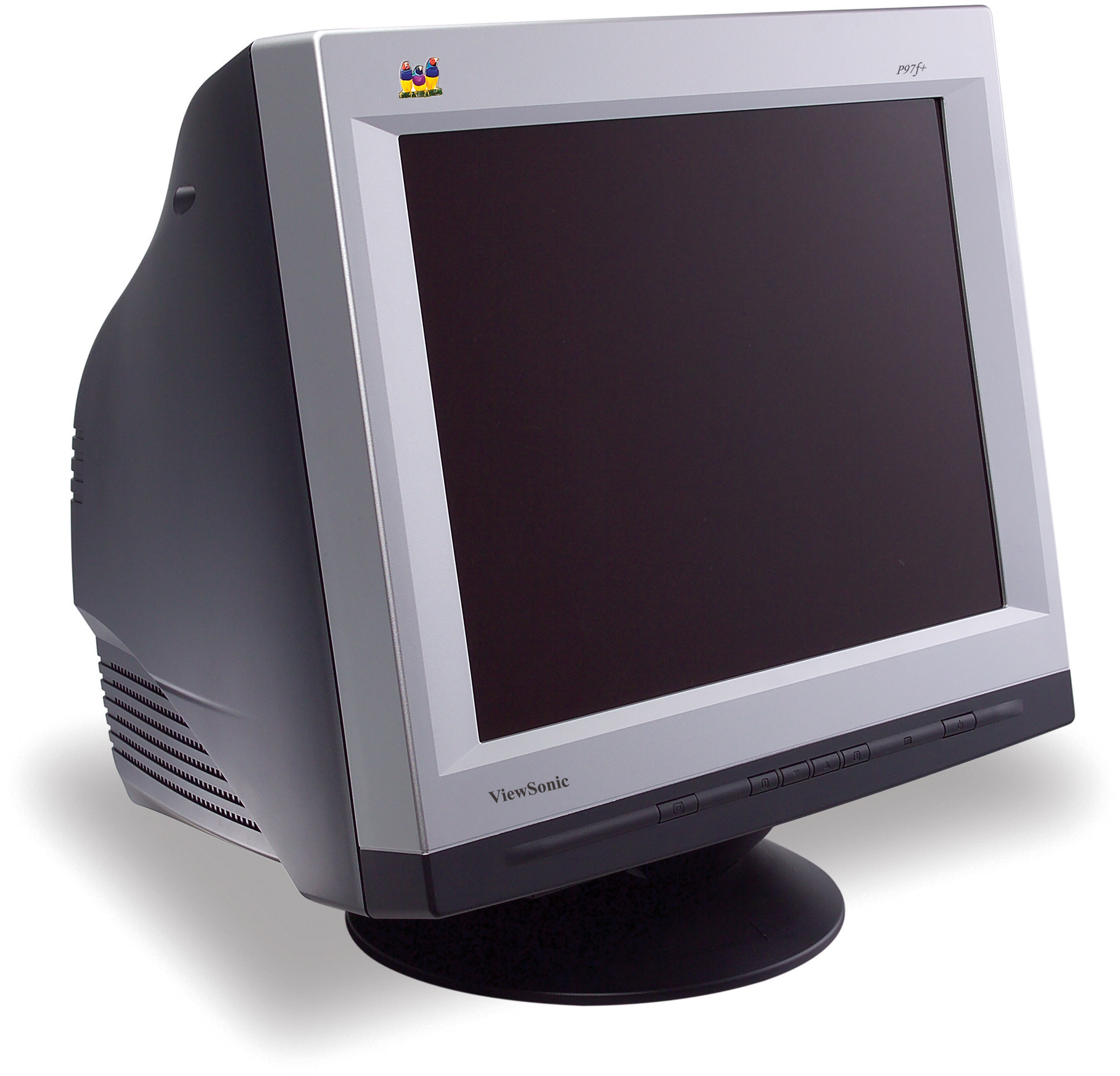

P97fSB
Product Omschrijving
Introducing ViewSonic’s ultra-stylish black-on-silver P97f+SBwith UltraBrite™ technology. With an easy touch of the UltraBritebutton, choose between HIGH-BRIGHTNESS TO ENHANCEGAMING, DVD, TV AND GRAPHICS or normal brightness forword processing, spreadsheets and text. The absolutely flatPerfectFlat® APERTURE GRILL TECHNOLOGY DELIVERS RICH,NATURAL HUES and precise colour fidelity. Combined withadvanced screen treatments, it ensures hours of comfortable,distortion-free viewing. With superior performance and at anexceptional price point, the P97f+SB is the perfect choice.
Bezoek Gebruikers
  • www.viewsonic.com
  • COMPATIBILITY
    PC: VGA up to 2048x1536
    Mac®: Power Mac ™ G3/G4 VGA up to 1152x870
    Other: Most workstations
  • DIMENSIONS
    Physical (WxHxD): 459mm (W) x 476mm (H) x 478mm (D)

    18.1” (W) x 18.7” (H) x 18.8” (D)
  • INPUT SIGNAL
    Frequency: Fh: 30 - 110kHz, Fv: 50 - 160Hz
    Video: RGB analogue (0.7Vp-p, 75ohms)
    Sync: H/V separated (TTL), composite
  • CONNECTOR
    Signal: 15-pin D-sub (attachable)
    Power: 3-pin plug (IEC320)
  • POWER
    Spanning: 90 - 240 VAC, 50-60 Hz (auto-switch)
    Consumption: 97 watts (typ), 130 watts (max)
  • CONTROLS
    Basic: Power on/off, menu, up, down, select, UltraBrite hot key
    OSD: Contrast, brightness, H/V-size, H/V-position, pincushion,
    pin-balance, Trapezoid, parallelogram, rotation, zoom, moiré,
    H/V-convergence, degauss, ViewMatch® colour (9300k, 6500k,
    5000k, user), ViewMeter®(mode information) , language, recall
  • WEIGHT
    Net: 23.4kg (51.6lbs)
  • VIDEO INPUT
    Bandwidth: 285MHz
  • POWER MANAGEMENT
    Meets TCO and ENERGY STAR®
  • CRT
    Type: 19” (18.0” viewable) CRT, 90° deflection, PerfectFlat
    Dot Pitch: 0.24mm aperture grill (uni-pitch)
    Phosphor: RGB B22 medium-short persistence
    Glass Surface: Tint: (TM ~ 47.5%), anti-reflection, anti-static (ARAG®)
  • MISCONVERGENCE
    0.25mm (max) at centre

    0.35mm (max) at corners
  • DISPLAY AREA
    Factory Setting: 353mm (H) x 265mm (V) (typ)
    Maximum Scan: 367mm (H) x 275mm (V), depending on signal timing used
  • OPERATING CONDITIONS
    Humidity: 5% to 95% (non condensation)
    Temperatuur: 0°C to 40°C
