LCD TV

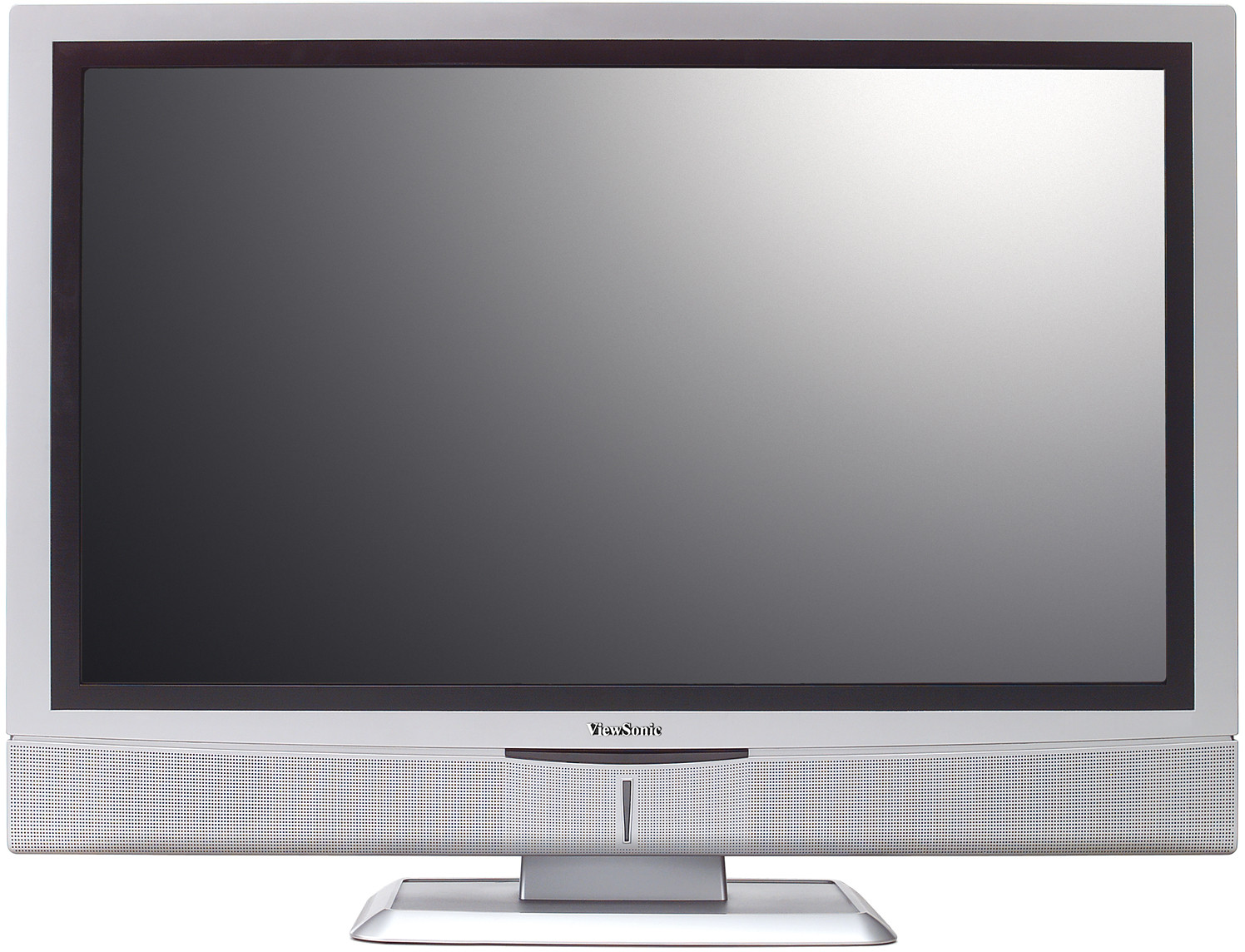

N3240w
Toets Features
Product Omschrijving
Bezoek Gebruikers
- www.viewsonic.com
-
LCD
Type: 32” VA extreme colour TFT active matrix, wide XGA 1366 x 768 Contrastverhouding: 1200:1 (typ.) Kijkhoeken: 176° horizontal, 176° vertical (at 20:1) Helderheid: 500cd/m² (typ.) Glass Surface: Anti-glare 3H Display Area: 70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal Reactietijd: 8ms (grey-to-grey) Aspectratio: 16:9 native -
COMPATIBILITY
PC: Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred Mac®: Power Mac™ up to 832 x 624 -
DIMENSIONS
W x H x D mm: 810 x 605 x 237 (with base)
810 x 556 x 116 (without base)
984 x 707 x 252 (packaging) -
VERPAKKINGSINHOUD
LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language) -
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm -
AUDIO
Speaker: 2 x 10 watts SRS WOW (virtual surround-sound) -
CONNECTOR
Digital: 1 x HDMI (HDCP) Audio Out: 1 x L/R RCA set Stroom: 3-pin plug (CEE22) Composite Video Input: 2 x RCA S-Video Input: 1 x 4-pin mini DIN jack Audio Input: 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)Audio: Audio-In 1 x L/R RCA set (for composite1/component)
1 x L/R RCA set (for composite2/S-video)
1 x 3.5mm mini stereo jack (for PC)
Audio-Out 1 x L/R RCA setSCART: 2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out],
SCART 2 [S-video In, CVBS In, Audio In])Tuner: 1 x Coax RF (PAL/SECAM) PC-VGA: 1 x 15-pin mini D-sub Composite Video: 1 x RCA set (YPbPr/YCbCr) -
POWER
Spanning: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply Consumptie: 180 watt (max.) -
CONTROLS
Basic: Power, source, menu, channel up/down, volume up/down OSD: Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock -
OPERATING CONDITIONS
Temperatuur: 0°C to 35°C Luchtvochtigheid: 20% to 90% (non condensation) -
WEIGHT
Netto: 15.6kg (with base), 14.1kg (without base) Bruto: 19.1kg -
VESA MOUNT COMPLIANT
VESA FDMI 200mm x 200mm, M6 screws -
VIDEO INPUT
PAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i) -
TELETEXT/MHEG5
Yes (1000 pages)
