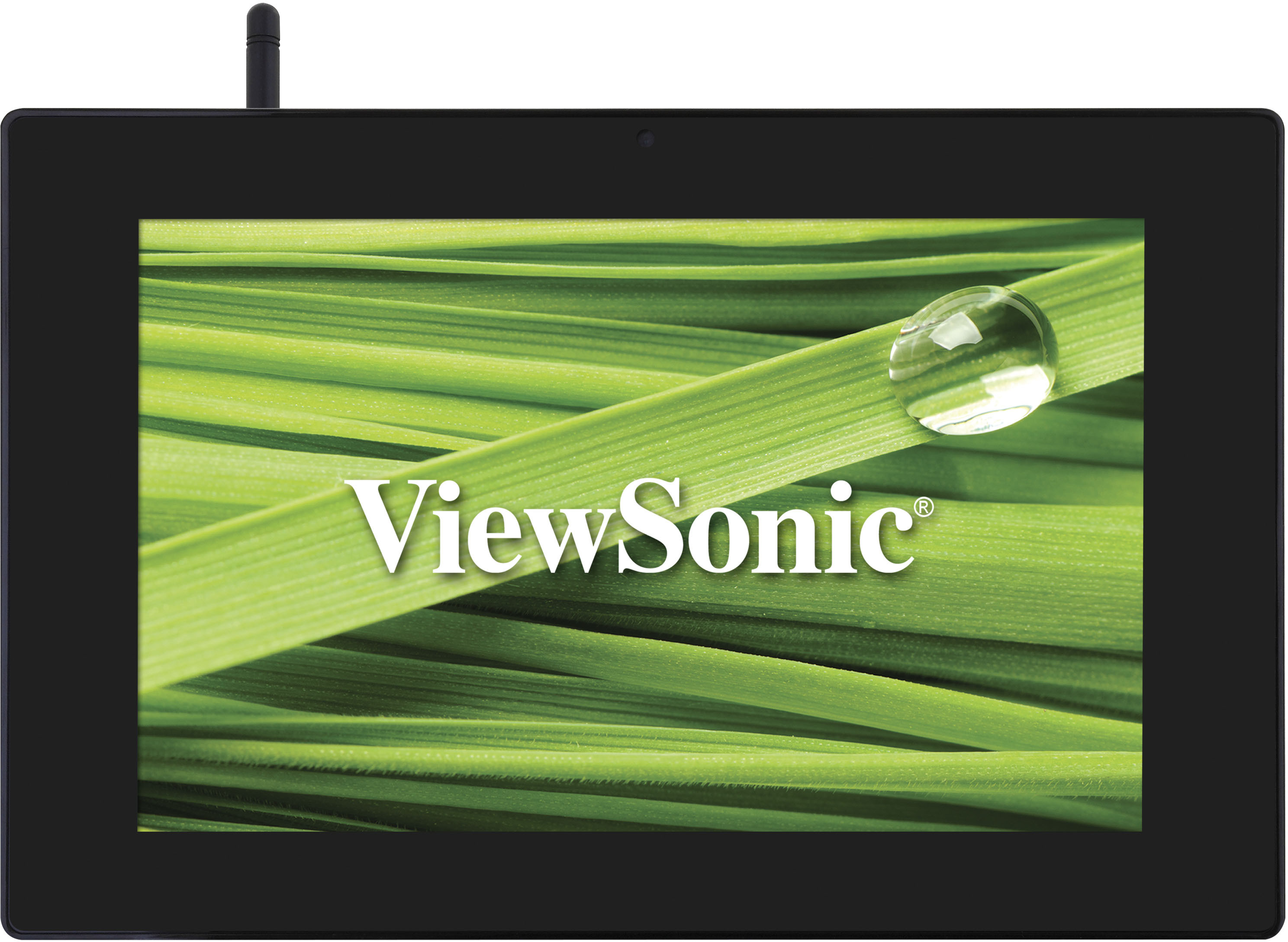

ViewSonic EP1032r-T 10.1’’ Touch Digital Poster

Toets Features

Product Omschrijving

The ViewSonic EP1032r-T is a 10’’ multimedia all-in-one interactive digital ePoster. It delivers eye-catching touch-interactive commercial messaging at retail POS, hotel lobbies and front desks, conference and exhibition venues, and other high-visibility locations. The EP1032r-T features wireless b/g/n network and LAN connectivity for easy loading of content, and supports Power over Ethernet (PoE) for convenient one-wire installation. Multi-touch compatibility with HTML5 and SMIL formats delivers a 2-way interactive platform for dynamic, customized content. Its built-in media player, 4GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. Bundled with Signage Manager Express software, the EP1032r-T effectively delivers customized messaging to target audiences. With VESA-mount compliance, the EP1032r-T is installation-ready for any high-visibility, high-traffic location.

Bezoek Gebruikers

www.viewsonic.com

COLORS

Black

LCD

Type:	TFT LCD Module with LED Backlight
Contrastverhouding:	700:1 (typ.)
Kijkhoeken:	Top 75°/ Bottom 70°/ Left 75° / Right 75°
Display Area:	216.96(W) x 135.6(H)
Optimum Resolution:	1280 x 800
Reactietijd:	25ms
Colour Support:	16.7M colors
Size:	10.1’’ viewable
Helderheid:	300 cd/m2
Backlight:	LED

COMPATIBILITY

HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
DIMENSIONS

Fysiek (BxHxD): 10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)

Packaging: 12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

VERPAKKINGSINHOUD

1. AC Adapter

2. Ethernet Cable

3. Standard 3.5mm to RCA AC cable

4. Display stand and screws

5. Hardware Quick Start Guide

6. Software Quick Start Guide

7. Documentation CD

*Actual content may differ from market to market

WARRANTY

1-year limited

**Warranty offered may differ from market to market
CONNECTOR

HDMI (input): x1

Audio: x1

LAN: x1

SD: x1 (for expand storage)

Speaker: 2-watt x2
POWER

Spanning: 100-240VAC +/- 10% Wide Range
CONTROLS

Physical: Touch button
OPERATING CONDITIONS

Temperatuur: 32°F to 104°F (0°C to 40°C)

Luchtvochtigheid: Operating: 5% ~ 85% @ 40°C, non-condensing

Altitude: <2000M
VESA® MOUNT

75 x 75mm
WEIGHT

Bruto: 3.64 (lbs)/ 1.65 (kg)

Netto: 1.72 (lbs)/ 0.78 (kg)
INVOER

USB-type A: x 2 (for content loading, F/W upgrade, Key board, Mouse)

USB Type B (mouse control): x 1 (for F/W troubleshooting)
STORAGE / SHIPPING CONDITION

Temperatuur: -4°F to 140°F (-20°C to 60°C)

Luchtvochtigheid: 5% ~ 85% non-condensing

Altitude: <2000M
POWER SAVING FUNCTION

On: Max. : 12W

Off (Suspend): <0.5 W

Fysiek (BxHxD):	10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)
Packaging:	12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)

HDMI (input):	x1
Audio:	x1
LAN:	x1
SD:	x1 (for expand storage)
Speaker:	2-watt x2

Temperatuur:	32°F to 104°F (0°C to 40°C)
Luchtvochtigheid:	Operating: 5% ~ 85% @ 40°C, non-condensing
Altitude:	<2000M

USB-type A:	x 2 (for content loading, F/W upgrade, Key board, Mouse)
USB Type B (mouse control):	x 1 (for F/W troubleshooting)

Temperatuur:	-4°F to 140°F (-20°C to 60°C)
Luchtvochtigheid:	5% ~ 85% non-condensing
Altitude:	<2000M

Bruto:	3.64 (lbs)/ 1.65 (kg)
Netto:	1.72 (lbs)/ 0.78 (kg)

On:	Max. : 12W
Off (Suspend):	<0.5 W
