Commercial Display
CDP4235
Toets Features
Product Omschrijving

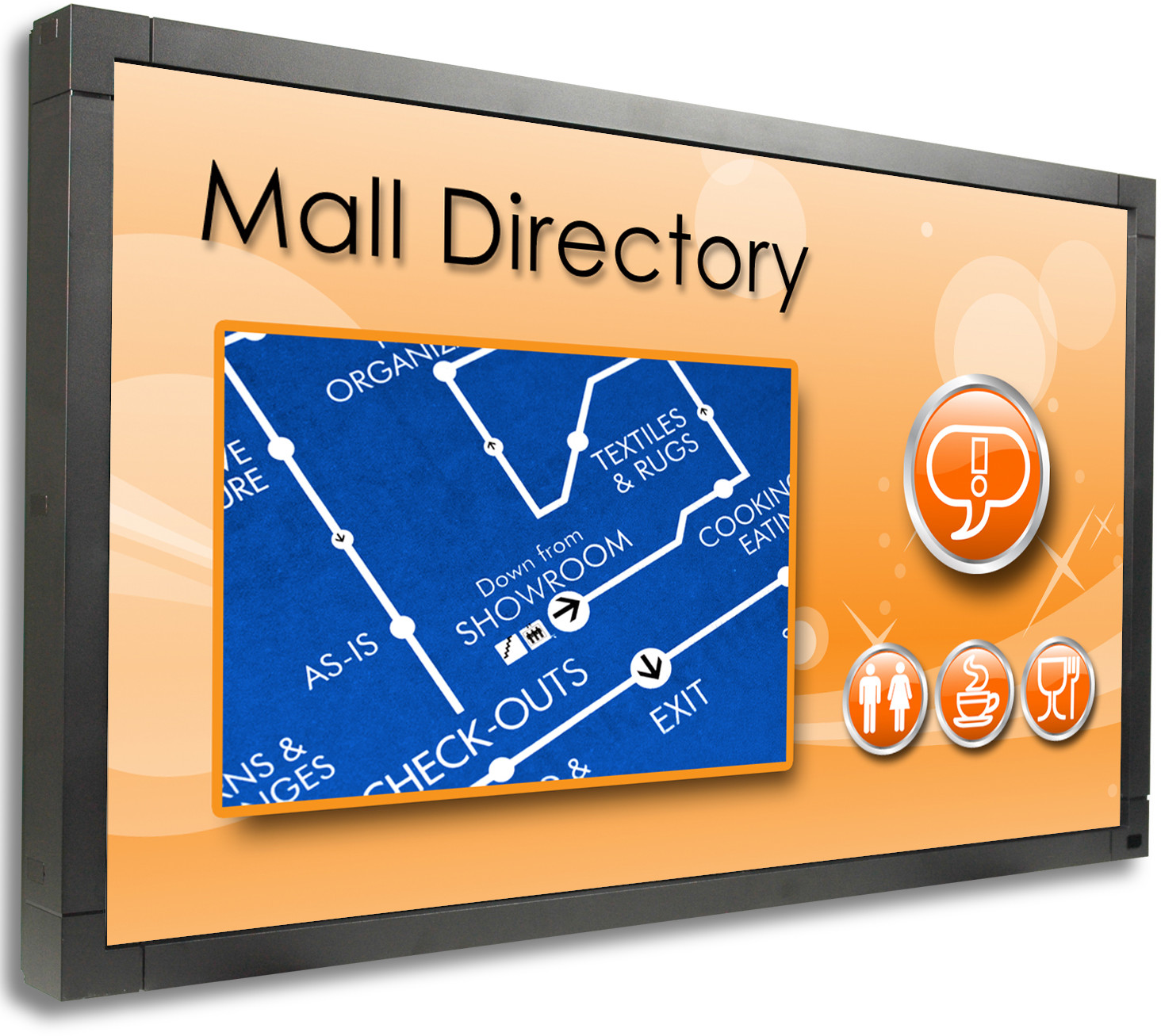

ViewSonic’s new CDP4235 Full HD Commercialdisplay features a FHD 1920 x 1080panel with 4000:1contrast and Intel’s Open Pluggable Specification(OPS) for applications requiring an integrated mediaplayer. Additional features include versatile inputs –HDMI, DVI, VGA, S video and composite, YPbPr andbuilt in 10W x 2 speakers. The CDP4235 will supportup to a 5x5 display video wall with internal clock andscheduler. RS232 daisy chain and RJ45 are providedfor remote control.
Bezoek Gebruikers
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 42" colour TFT active matrix, wide LCD Contrastverhouding: 4000:1 (typ) Kijkhoeken: 178º horizontal, 178º vertical Helderheid: 450 cd/m2(typ) Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Resolution: 1920 x 1080, 435mm dot pitch Reactietijd: 8ms Lichtbron: 50,000 hrs. (typ) Aspectratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical With Stand: 39.04" x 25.38" x 11.24"
(991.6mm x 621mm x 328.8mm)Physical Without Stand: 39.04" x 25.5" x1.47"
(991.6mm x 115.5mm x 25.5mm) -
VERPAKKINGSINHOUD
LCD display, power cable, remote control with batteries, User Guide CD -
INPUT
Video-ingang: HDMI, DVI, component, VGA, S-Video, composite Video Output: VGA, component, DVI Control Input/Output: RS-232/RJ45 -
INPUT SIGNAL
TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p -
CONNECTOR
Digital: HDMI, DVI Stroom: 3-pin plug Analog: 9-pin mini D-sub (VGA) -
POWER
Spanning: AC 100–240V (universal), 50–60Hz Consumptie: 210W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, colour temperature, temperature adjust, sharpness Front Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset Audio: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Invoer: VGA, DVI, HDMI, YPbPr OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position -
VESA MOUNT COMPLIANT
VESA 400mm x 400mm -
WEIGHT
Net With Stand: 51.8 lb. (23 kg) Net Without Stand: 50.7 lb. (23 kg) Gross With Stand: 61.7 lb. (28 kg) -
OPERATING CONDITIONS
Luchtvochtigheid: 10–80% (non-condensing) Temperature (landscape): 32–104ºF (5–40ºC) Temperature (portrait): 32–95ºF (5–35ºC) -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in
accordance with local, state or federal laws. -
AUDIO OUT
Speakers: 2 x 10w
