Commercial Display
CDE7500
Toets Features
- Geïnstalleerde ViewBoard® Cast and Zoom videoconferentie
- USB multimediaspeler
- Ondersteunt HDMI CEC pass-through
- Flicker-free and Blauw-licht filter tegen vermoeide ogen
- HDMI, VGA, RS232, RJ45 input compatibiliteit

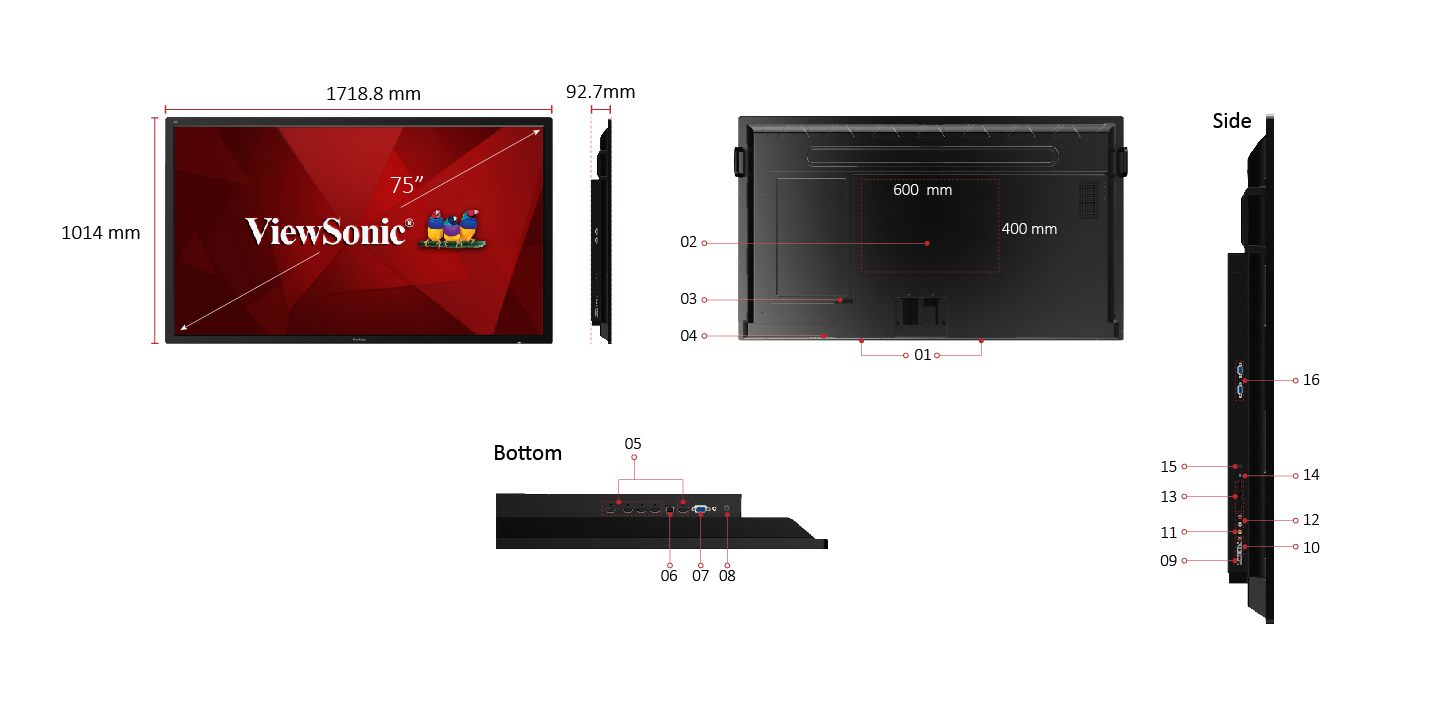

Product Omschrijving
- Internal Speakers
- VESA Compatible® Wall Mount 600 x 400 mm
- AC In
- Menu Controls
- HDMI ports
- LAN ports
- VGA port
- VGA-AUDIO
- AV-OUT
- YPbPr/YCbCr IN ports
- AV-IN ports
- AUDIO-IN port
- USB ports
- Headset port
- SPDIF port
- RS232 IN/OUT port
Bezoek Gebruikers
- www.viewsonic.com
-
LCD PANEL
Paneelgrootte: 75" Type: TFT LCD Module with LED Backlight Weergavegebied (mm): 1649.66(H) x 927.94(V) Aspectratio: 16:09 Resolutie: 3840 x 2160 Colors: 1.07B colors (10bit) Helderheid: 450 nits (typ.) 400 nits (min.) Contrastverhouding: 1200:1 (typ.) Reactietijd: 8 ms Kijkhoeken: H = 178, V = 178 (typ.) Backlight: DLED Levensduur achtergrondverlichting: 30,000 Hours Min. Hardness: 7H -
INPUT
HDMI: x 4 RGB/VGA: x 1 Audio: x 1 CVBS (AV): x 1 YPbPr: x 1 RS232: x 1 PC Slot: x 1 PC Slot -
OUTPUT
HDMI: x 1 (for one of HDMI1/2/3) Audio (Earphone out): x 1 SPDIF: x 1 RS232: x 1 -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 2 (side x1, top x1) 3.0 Type A: x 2 (side) -
SPEAKERS
20W x 2 -
BUILT-IN PC
Processor: ARM Cortex A53 Dual Core 1.5G Hz CPU Geheugen: 2GB Opslag: 16GB -
COMPATIBILITY
VGA: Refer to timing table HDMI: 480i, 480p,720p, 1080p, up to 2160p CVBS: 480i -
POWER
Spanning: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Consumptie: 300 W -
ERGONOMICS
Wandmontage (VESA®): 600 x 400mm; Screw: M8 x 20mm -
OPERATING CONDITIONS
Temperatuur (º C): 32°F to 104°F (0°C to 40°C) Luchtvochtigheid: 10% ~ 90% non-condensing -
DIMENSIONS
Physical w/o Stand (mm / inch): 1735.4 x 1014.0 x 93.2 mm / 68.32 x 39.92 x 3.67 inch Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 51.77 x 13.78 in -
WEIGHT
Net (kg / lb): kg / lbs Net w/o Stand (kg / lb): 43.05 kg / 94.91lbs Gross (kg / lb): 65.40 kg / 144.18lbs
