CDE3204
Product Omschrijving

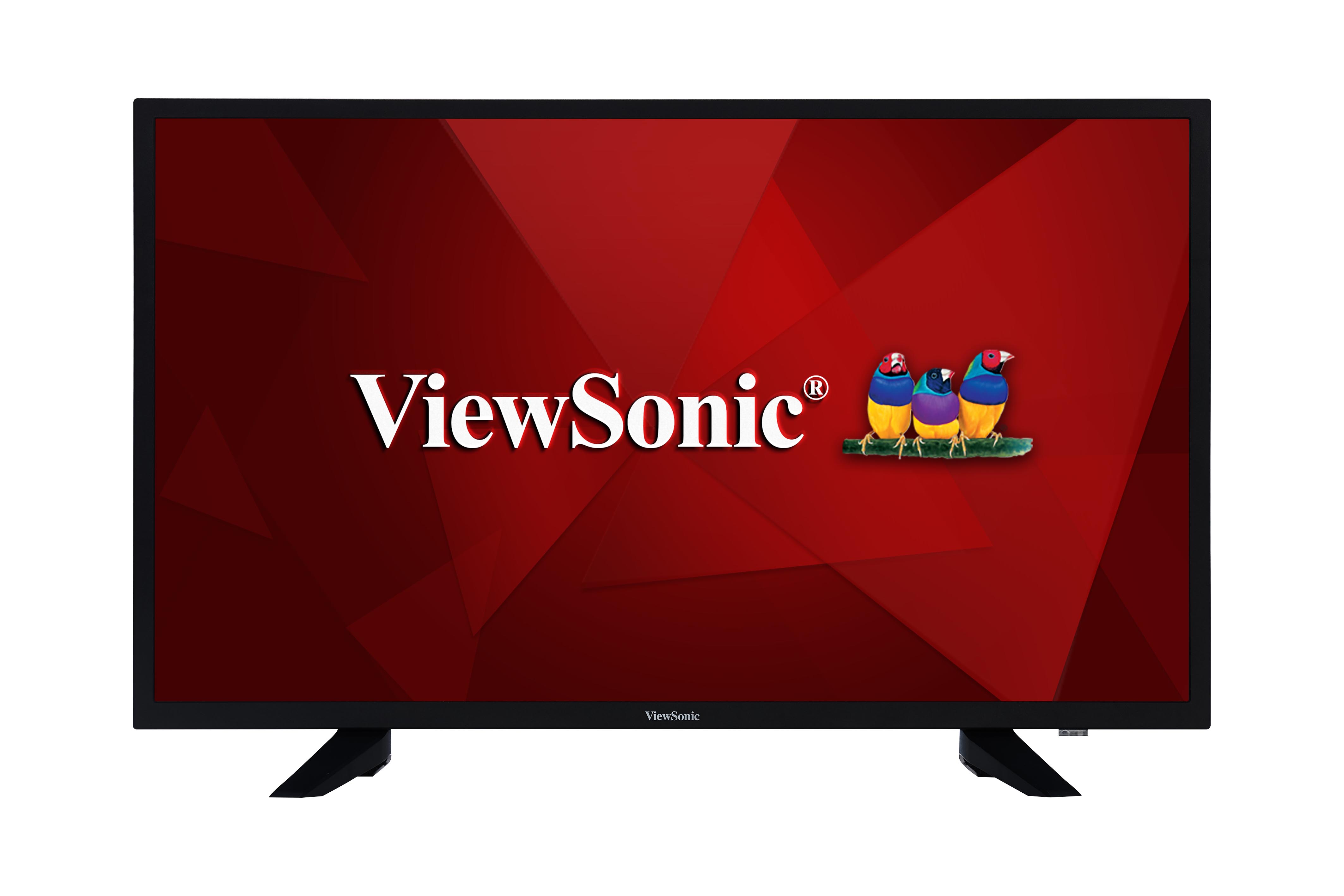

The ViewSonic CDE3204 is a great value, high performance 32’’ (31.5” viewable) Full HD LED commercial display for hotel, restaurant and hospitality environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, SPDIF, YPbPr, the display comes with a simple and convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, wide viewing angles and dual 10W stereo speakers, the slim-bezel CDE3204 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
Bezoek Gebruikers
  • www.viewsonic.com
  • LCD PANEL
    Paneelgrootte: 32'' (31.5” diagonal)
    Type: ADS type
    Weergavegebied (mm): 698.4 (H) x 392.85 (V)
    Aspectratio: 16:09
    Resolutie: 1920 x 1080
    Colors: 16.7 M colors
    Helderheid: 350 nits (typ.)
    Contrastverhouding: 1200:1 (typ.)
    Reactietijd: 8 ms
    Kijkhoeken: H = 178, V = 178 (typ.)
    Backlight: ELED
    Levensduur achtergrondverlichting: 50,000 Hours (typ.)
    Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%)
  • INPUT
    HDMI: x 2 (HDMI1.4)
    RGB/VGA: x 1
    DVI: x 1
    Audio: x 1
    CVBS: x 1
    YPbPr: x 1
    RS232: x 1
  • OUTPUT
    Audio: x 1
    SPDIF: x 1
    IR: x 1
  • USB
    Type A: x 1
  • SPEAKERS
    10W x 2
  • COMPATIBILITY
    VGA: 480i, 480p,720p,1080i,1080p
    DVI: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
    Picture Mode, Contrast, Brightness, Sharpness, Tint, Color, Blue Light Filter, Color Temp,
    Zoom Mode, DLC
    Sound Mode, Digital Output, Surround Sound, AVC, Balance
    Sleep Timer, Time Zone, DST, Time Format, Clock, Time Management
    Menu Language, Transparent, OSD Time Out, Restore Default, Software Update(USB),
    CEC, Blue Screen, Monitor ID, HDMI Mode
    System Lock, Change Password, Input Block
  • POWER
    Spanning: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumptie: Normal 41W, Max 68W
  • ERGONOMICS
    Wandmontage (VESA®): 200x4200mm ; Screw: M4*L8
  • OPERATING CONDITIONS
    Temperatuur (º C): 0 to 40°C (Landscape)/0 to 35°C (Portrait)
    Luchtvochtigheid: 20% ~ 80% non-condensing
  • "DIMENSIONS (W X H X D)"
    Fysiek (inch/mm): 733 x 468.5 x 191.4 mm / 28.86 x 18.44 x 7.54 in
    Physical w/o Stand (inch / mm): 733 x 431.2 x 57.0 mm / 28.86 x 16.98 x 2.24 in
    Verpakking (inch / mm): 794 x 496 x138 mm / 31.26 x 19.53 x 5.43 in
  • WEIGHT
    Netto (lb / kg): 6.4 kg / 14.11 lbs
    Net w/o Stand (lb / kg): 6.3 kg / 13.89 lbs
    Bruto ( lb/kg): 8.07 kg / 17.79 lbs
  • WHAT'S IN THE BOX?
    1. CDE3204 commercial display

2. Remote Control with batteries

3. User manual CD wizard

4. Quick Start Guide

5. Power Cables
  • CONTACT DETAILS
    Bruto ( lb/kg): 19.8 kg / 43.65 lbs
