Digital Signage
CD4233
Toets Features
Product Omschrijving

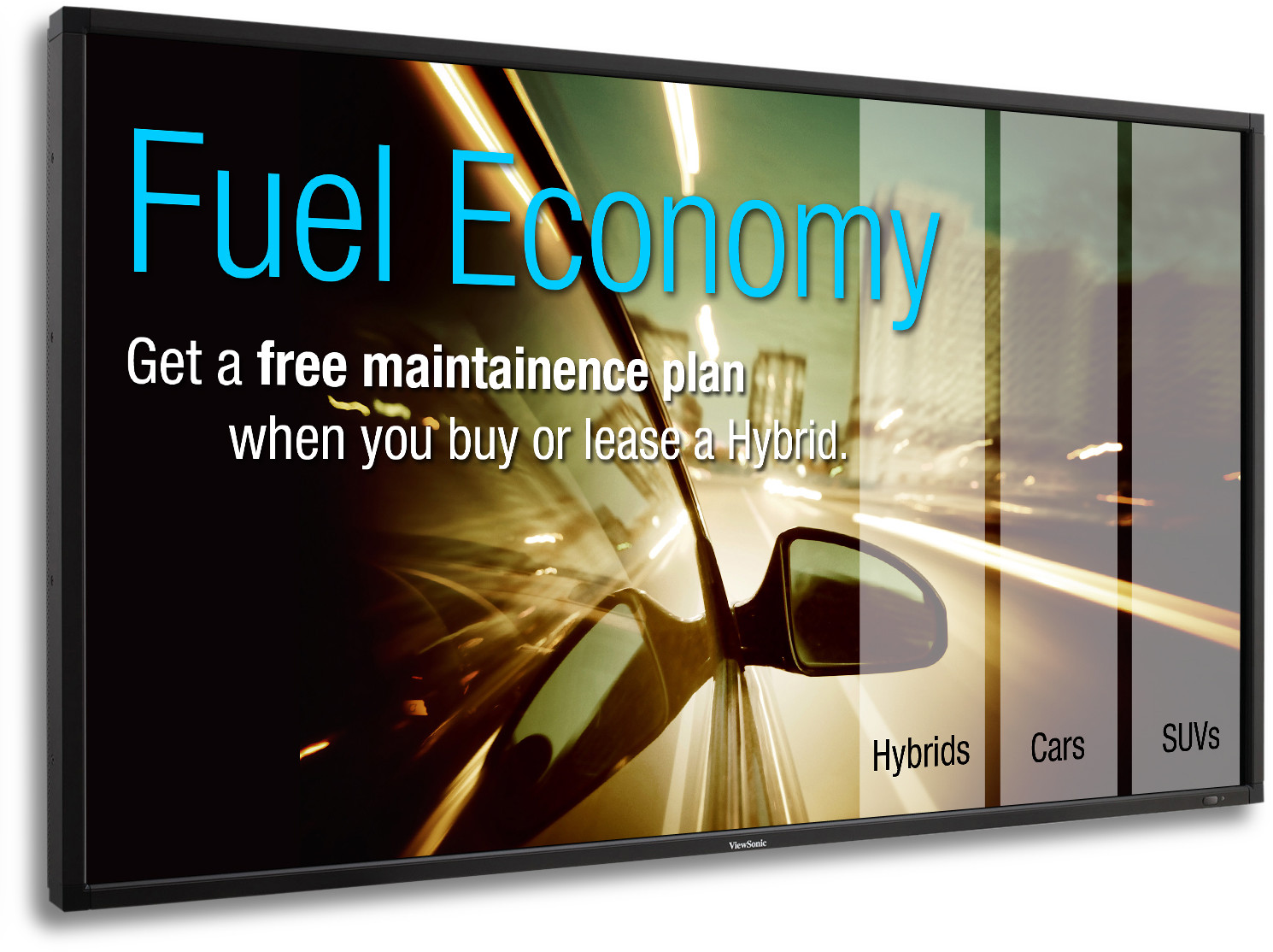

ViewSonic’s 42" CD4233 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.
Bezoek Gebruikers
- www.viewsonic.com
-
COLORS
Black -
LCD
Type: 42" color TFT active matrix, wide LCD Contrastverhouding: 1100:1 (typ) Kijkhoeken: 178º horizontal, 178º vertical Helderheid: 700 cd/m2 (typ) Display Area: 36.6" horizontal x 20.6" vertical; 42" diagonal Optimum Resolution: 1920x1080, 600mm dot pitch Reactietijd: 9ms Lichtbron: Long life, 50,000 hrs. (typ) Aspectratio: 16:9 Panel Surface: Anti-glare, hard coating (3H) -
DIMENSIONS
Physical Without Stand: 38.1" x 22.0" x 4.9" (967.6mm x559.6mm x 123.1mm) Physical with stand (optional): 38.1" x 25.5" x 15.9" (967.6mm x 647.7mm x 403.9mm) -
VERPAKKINGSINHOUD
LCD display, power cable, remote control with batteries,
User Guide CD -
AUDIO
Amplifier: 7-watt / 8 ohm -
INPUT
Video-ingang: HDMI, DVI, component, VGA, S-Video, composite Video Output: VGA, component, DVI Control Input/Output: RS-232 -
CONNECTOR
Digital: HDMI, DVI Stroom: 3-pin plug Analog: 15-pin mini D-sub (VGA) -
POWER
Spanning: AC 100–240V (universal), 50–60Hz Consumptie: 280W (typ) -
CONTROLS
Picture: Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpnessFront Panel: Power, Exit, +, –, Menu/Enter Special: Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, resetAudio: Volume, mute, audio source Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect Invoer: VGA, DVI, HDMI, YPbPr OSD Setting: Languages, OSD H. position, OSD V. position, OSD timer VGA Setting: Auto adjustment, clock, phase, sharpness,
H. position, V. position -
VESA MOUNT COMPLIANT
VESA 100mm x 100mm, 12 holes -
WEIGHT
Gross without stand: 76.5 lb. (34.7 kg) Net With Stand: 69.8 lb. (31.7 kg) Net Without Stand: 65.0 lb. (29.5 kg) -
OPERATING CONDITIONS
Luchtvochtigheid: 20–80% (non-condensing) Temperature (landscape): 41–104ºF (5–40ºC) Temperature (portrait): 41–95ºF (5–35ºC) -
INPUT SIGNAL
Video: 480i, 480p, 720p, 1080i, 1080p -
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
