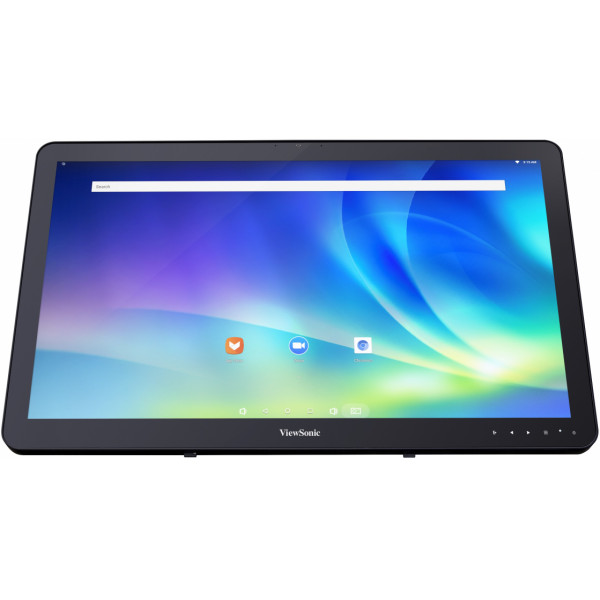

VSD243

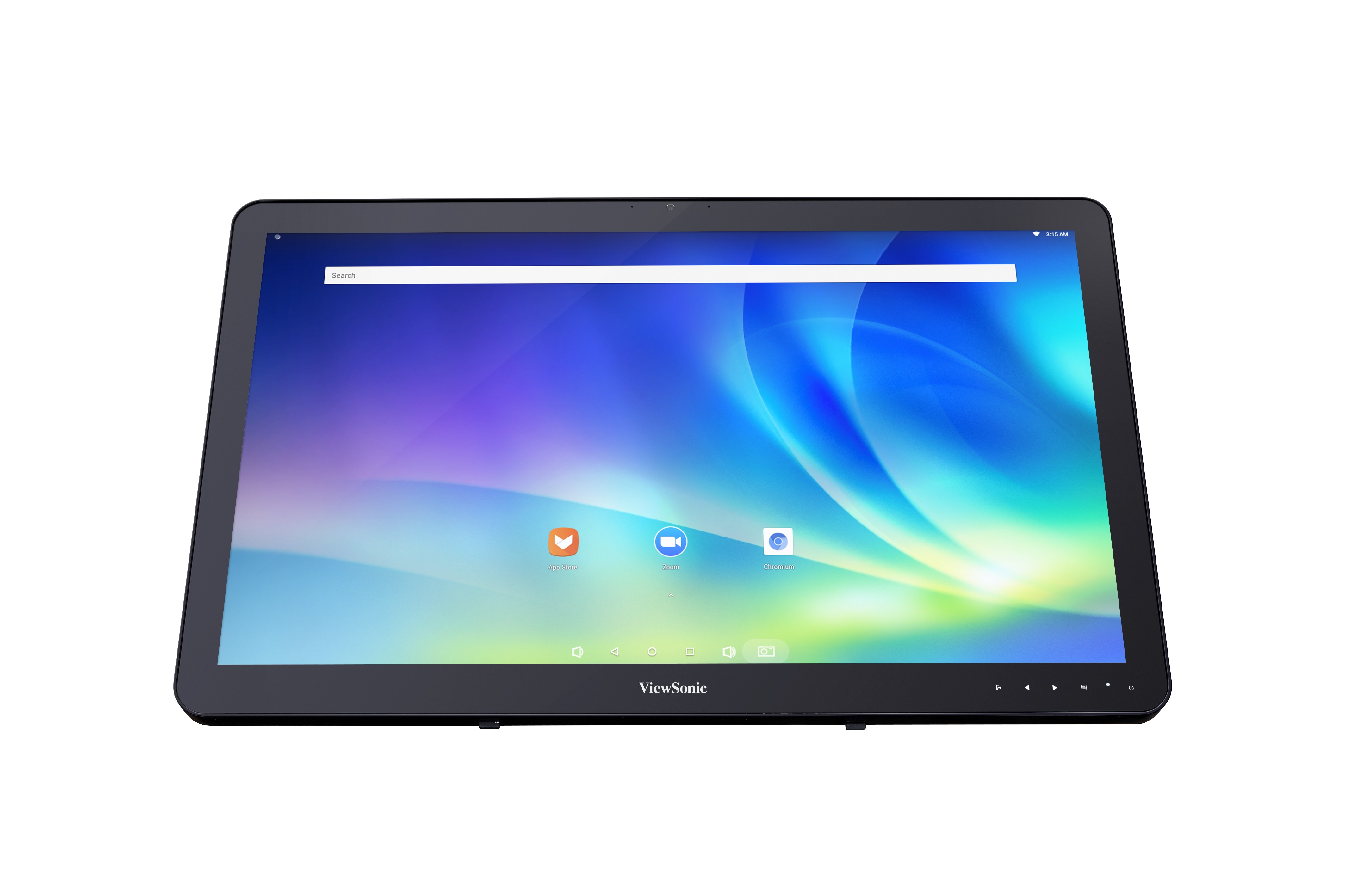

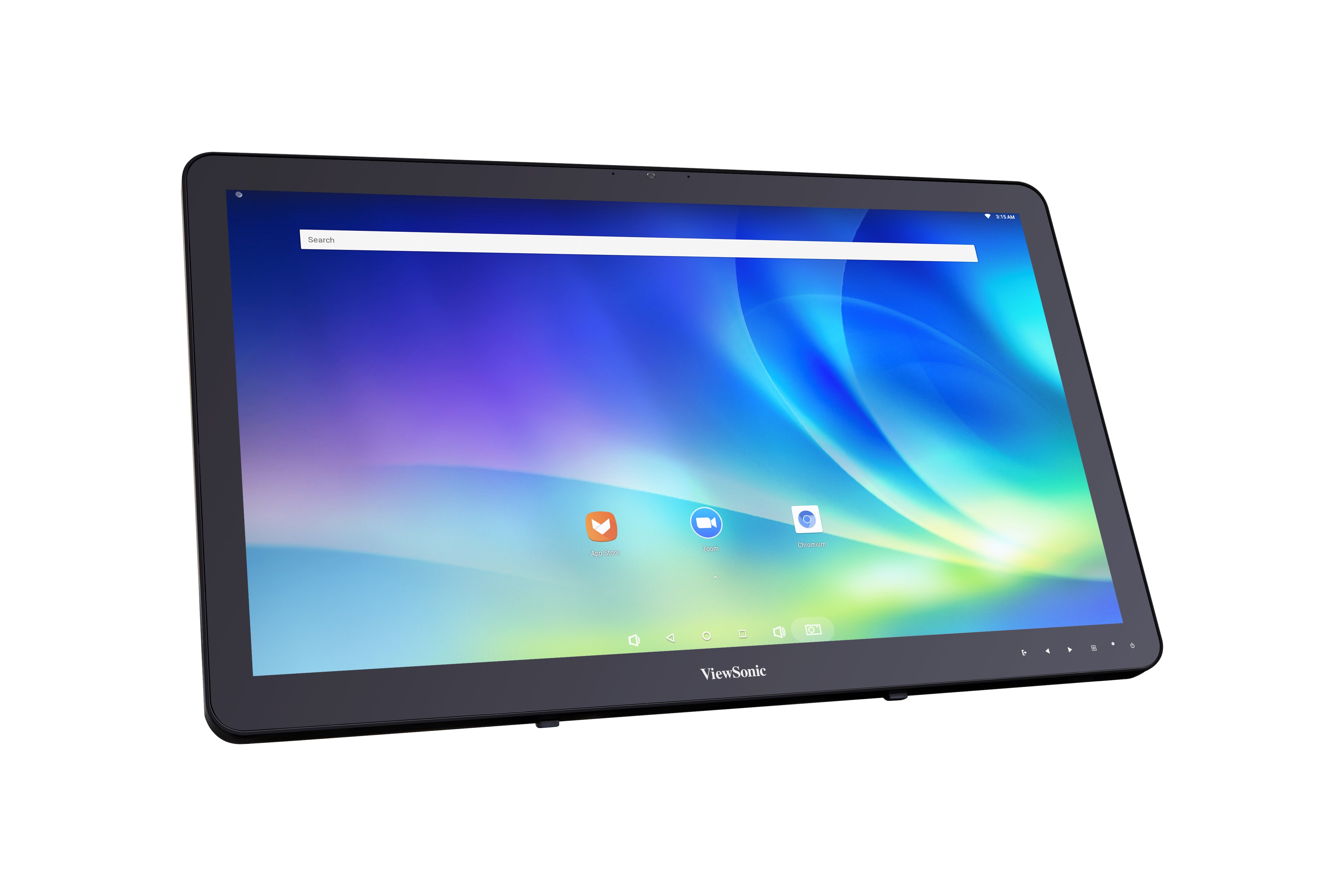

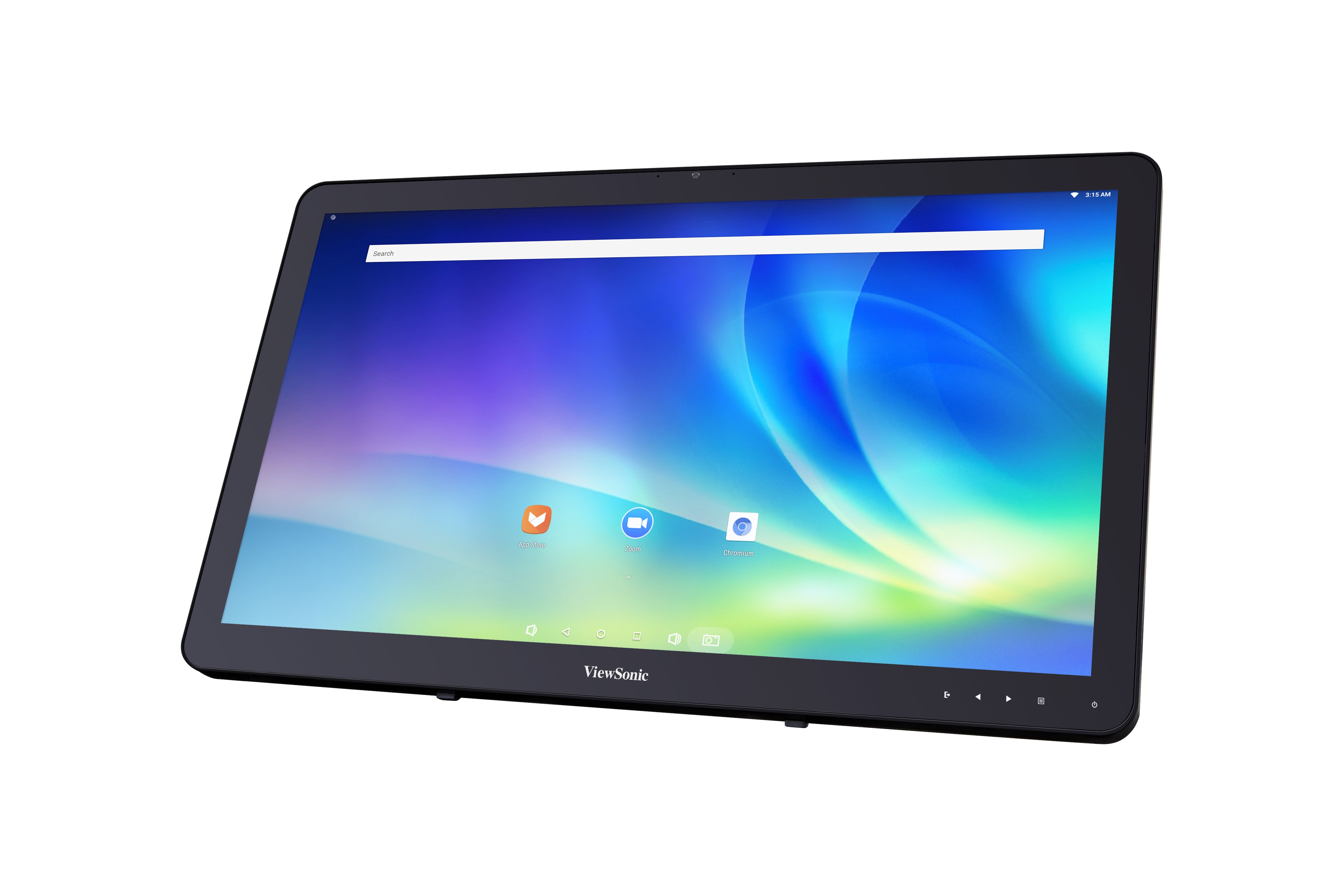

24” (23.6” viewable) Smart Display for Android™

Full HD 1080p resolution
10-point Multi-touch
Equipped with Wi-Fi, Bluetooth, and RJ45
Built-in webcam, integrated microphone and speakers
Powerful Quad Core Processor

Gallerij

Specificaties

OPERATING SYSTEM
Platform: Support Android 8.0
Type: 23.6” TFT liquid crystal display, VA panel
PANEL
Type: 23.6” TFT liquid crystal display, VA panel
Resolutie: 1920 x1080
Color Depth: 8-bit + Hi FRC
Helderheid: 250 cd/m2 (typ.) & 200 cd/m2 ( Min.)
Contrast: 3000:1 (typ.) / 2000:1 ( Min.)
Touch Panel: PCT10 points touch supported
Oppervlakte behandeling: Touch CS Soda-Lime glasses (≧7H)
Viewing Angle: View Angle Free (R/L 178 – Typ.)
Reactietijd: 16 ms GTG ( typ.)
PROCESSOR
CPU Processor Type: Rockchip® RK3288 Cortex-A17 ( Quad- Core 1.8 GHz)
Scalar: Realtek RTD2483AD-CG

MEMORY
System: 16GB eMMC iNand
Opslag: 2GB DDR3
AUDIO
Microphone: Yes
Speaker: 2.5W *2 stereo
Headset: 3.5mm audio jack for stereo headset
SOFTWARE
Protocols: Support Android 8.0
CONNECTIVITY
WiFi: WiFi :802.11 b/g/n
Bluetooth: BT4.0
USB: USB2.0 -typeA*4 ; USB type B*1 ; Mini-USB for OTG
HDMI-IN: Yes
HDMI-OUT: Yes
RJ45 LAN: 10M/100M/1000M
Screen Mirroring: Yes ( depends on receiver compatibility)
CAMERA
Secondary Camera (Front): View Angle Free (R/L 178 – Typ.)
Reactietijd: 5.0MP Autofocus
SUPPORTED FILE
Text: TXTJPEG/BMP/ GIF (non-animated)
Picture: AVI，RM，RMVB，MOV，FLV，3GP，MP4，MKV
Video: Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps
POWER
Spanning: AC Input voltage 100~240VAC, 50/60Hz (universal)
Consumptie: - On mode: 40 W (Max)
-Standby Mode: < 2 W
-Off mode : 0.5 W

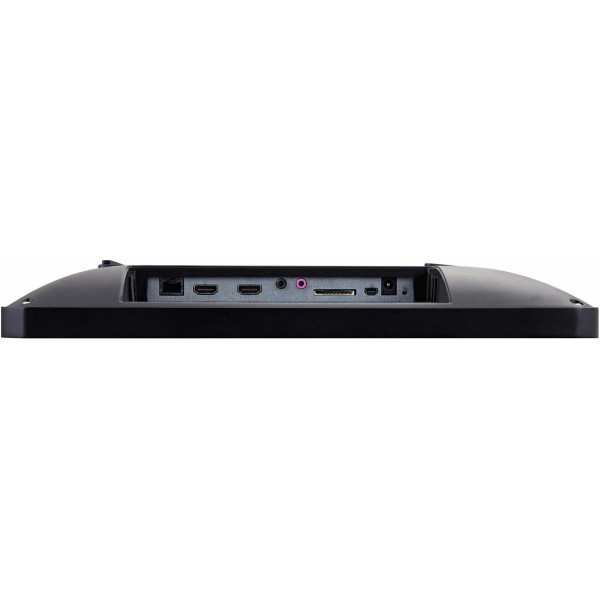

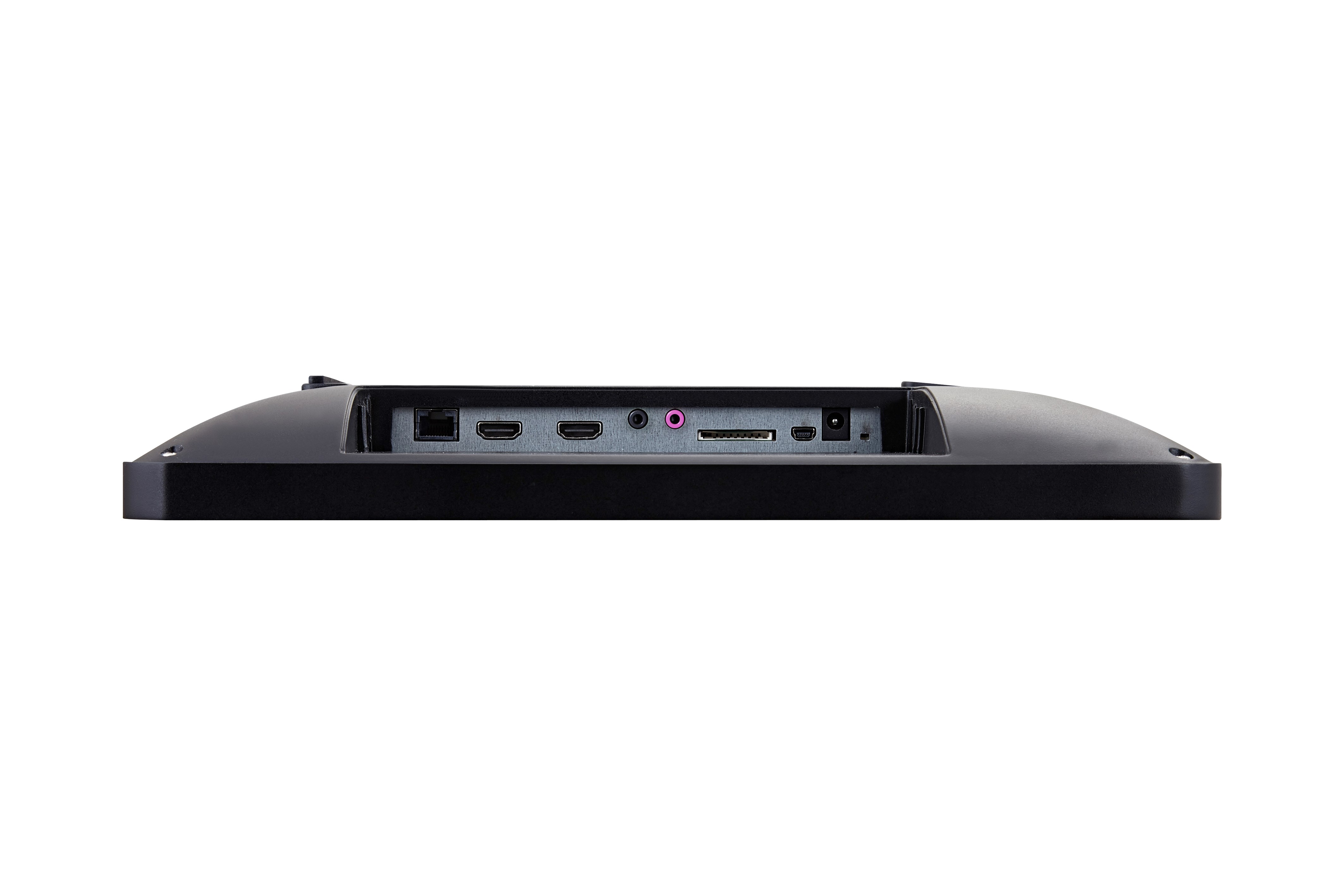

INTERFACE
I/O ports: 3.5mm headset jack
3.5mm Microphone-IN jack
DC jack
SD card slot
HDMI-IN
HDMI-OUT
RJ45 LAN
MiniUSB*1-OTG
USB 2.0*4 – type A
USB 2.0*1 –type B*
*( Extermal HDMI display mode for USB upstream, and Touch-screen
control functionality.)
OPERATING CONDITIONS
Temperature (º F / º C): 0°C to 35°C
Luchtvochtigheid: 20%~90% non-condensing
DIMENSIONS (W x H x D) (inch / mm)
Physical with stand (inch/mm): 572.9 x 351.8 x 47mm ( 22.6 x 13.9x 1.9 inches)
Packaging (inch/mm): 643 x 435 x 140 mm
( 25.32 x 17.13 x4.93 inches)
WEIGHT
Net with stand (lb / kg): 5.64 kg
(12.43 lb)
Bruto ( lb/kg): 7.56 Kg
(16.65 lb)

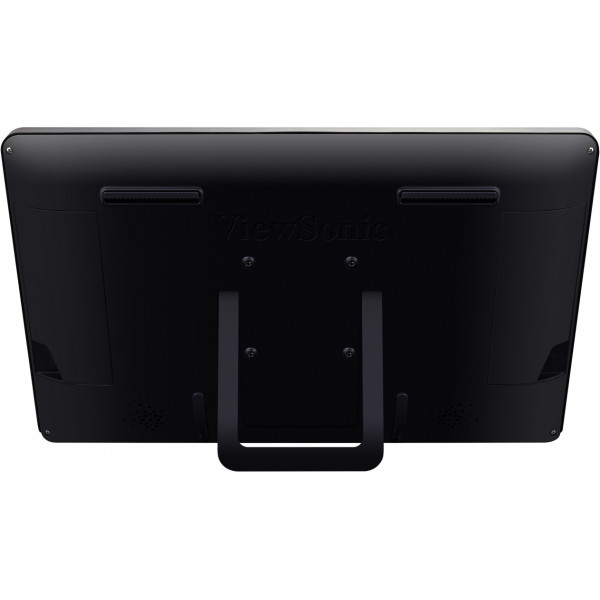

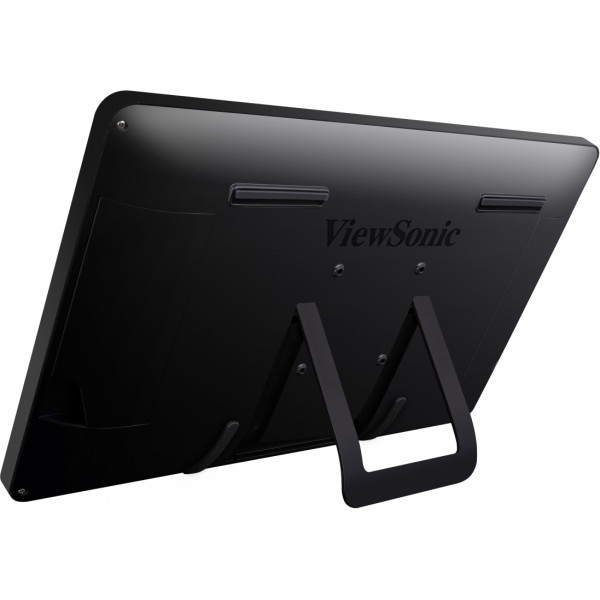

WALL MOUNT
VESA®: 100x100mm
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws
WARRANTY
*Warranty offered may differ from market to market
WHAT'S IN THE BOX
1. VSD243
2. Power adapter with
3. Power cord (depend on regions.)*
4. Quick Start Guide
* Applicable power cord is shipped with the product to the point of
destination.
*Actual content may differ from market to market
