CDE6561T

RGB/VGA: x1
Audio: x1 (Earphone out)
SPDIF: x1 (Coxial)

RJ45: x1

Type A: x3 (2.0); x1 (3.0)
Type B: x1 (for touch)

10W x 2

Processor: ARM Cortex A9 Dual Core CPU
Graphic: ARM Mali400 MP4
Geheugen: 1.5GB
Opslag: 8GB
Networking: Integrated 10/100/1000M Adaption

RGB PC/HDMI PC: Refer to timing table
CVBS: 480i
HDMI: 480i, 480p,720p, up to 1080

Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist

Spanning: 100-240VAC +/- 10% Wide Range
Consumptie: "On" 270W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W

Wall Mount (VESA® ): 600 x 400 (M8 x 60mm) With Wall Mount Spacer

Temperature (º C): 32°F to 104°F (0°C to 40°C)
Luchtvochtigheid: 20% ~ 80% non-condensing

Fysiek (inch/mm): 59.96x36.38x3.9 in/ 1523x924x98
Verpakking (inch / mm): 66.18x42.17x8.66 in / 1697x1071x220

Netto (lb / kg): 100.31lb / 45.5kg
Bruto ( lb/kg): 125.66 lb /57kg

**Warranty offered may differ from market to market

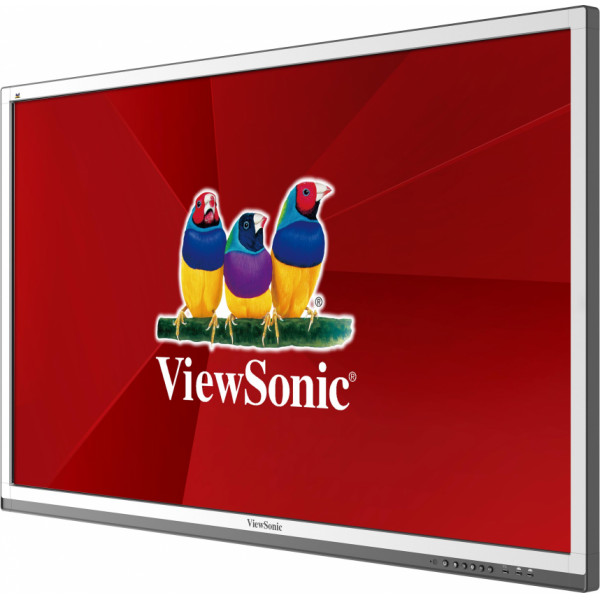

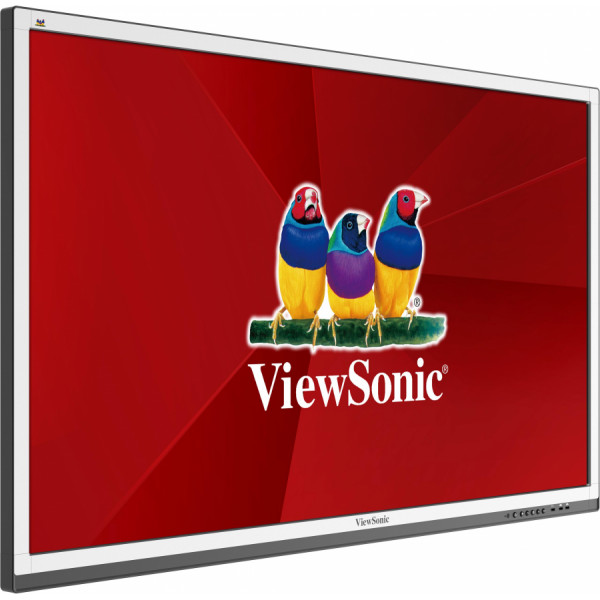

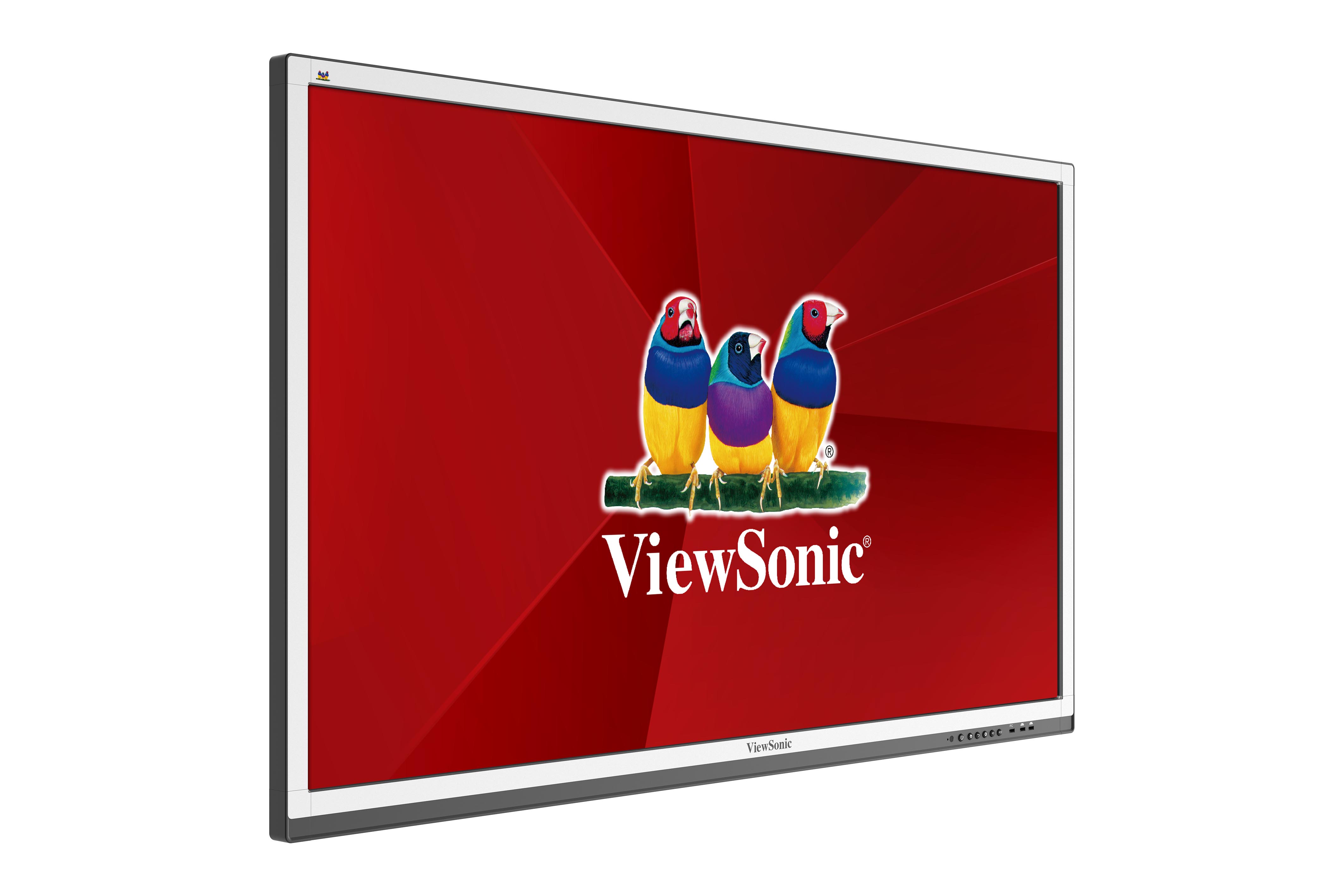

CDE Interactive Large Format Display Monitor
VGA cable
Power cable x 4
Remote control
USB cable
Audio cable
Touching pen x 3
User manual CD wizard
RS232 adapter
Wall Mount Spacer
