LCD Display
VA22E2-H
Key Features
- SuperClear® VA panel with Full HD 1080p resolution
- 100Hz Refresh rate delivers fluid visuals
- Variable Refresh Rate eliminates screen tearing and reduce stuttering
- HDMI and VGA inputs for flexible connectivity
- Eye ProTech for comfortable viewing
Product Description

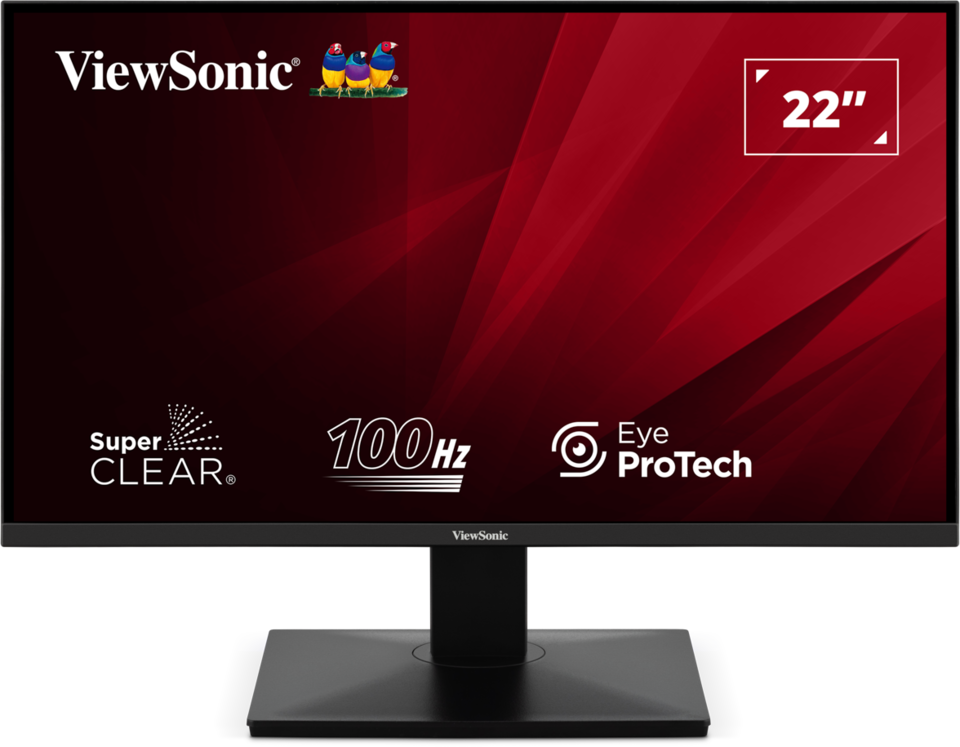

The ViewSonic VA22E2-H is a 22” Full HD monitor featuring HDMI and VGA inputs for business and home use. The optimal screen performance and comfortable viewing without tearing or stuttering are delivered through variable refresh rate, eye-care technology, and various ViewMode presets. Simply expand your workspace and experience truly seamless multitasking on just one screen with a VESA-compatible mount at a low power consumption.
- Joystick Key
- VESA Compatible(Wall Mount 100 x 100mm)
- Power In
- HDMI
- VGA
- Audio Out
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: VA Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 4,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit true Aspect Ratio: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 30000 Hrs (Min) Curvature: Flat Input Fv (Max; Hz): 100 Variable Refresh Rate Technology: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 75% size (Typ) sRGB: 106% size (Typ) Pixel Size: 0.249 mm (H) x 0.241 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10/11 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 Power in: DC Socket (Center Positive) -
POWER
Eco Mode (Conserve): 14W Eco Mode (optimized): 17W Consumption (typical): 19W Consumption (max): 20W Voltage: AC 100-240V Stand-by: 0.3W Power Supply: External Power Adaptor -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: U, R, D, L, EN (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 30 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz Frequency Vertical: RGB Analog: 56 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 20º -
WEIGHT (IMPERIAL)
Net (lbs): 4.6 Net Without Stand (lbs): 4.2 Gross (lbs): 6.8 -
WEIGHT (METRIC)
Net (kg): 2.1 Net Without Stand (kg): 1.9 Gross (kg): 3.1 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 21.7 x 16.1 x 3.8 Physical (in.): 19.37 x 14.08 x 7.28 Physical Without Stand (in.): 19.37 x 11.05 x 1.68 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 552 x 408 x 97 Physical (mm): 491.97 x 357.62 x 185 Physical Without Stand (mm): 491.97 x 280.6 x 42.75 -
GENERAL
PACKAGE CONTENTS: VA22E2-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 PACKAGE CONTENTS (VSI): VA22E2-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 PACKAGE CONTENTS (VSE): VA22E2-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 PACKAGE CONTENTS (VSA): VA22E2-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 PACKAGE CONTENTS (VSCN): VA22E2-H x1, HDMI Cable (v1.4; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
