Key Features
  • Google certified EDLA with access to Google apps on Android™ 14
  • Advanced security controls and compliance standards that safeguard your data​
  • Efficient data transfer and power delivery with the USB-C port
  • Expandable micro SD storage options for superior performance and flexibility.

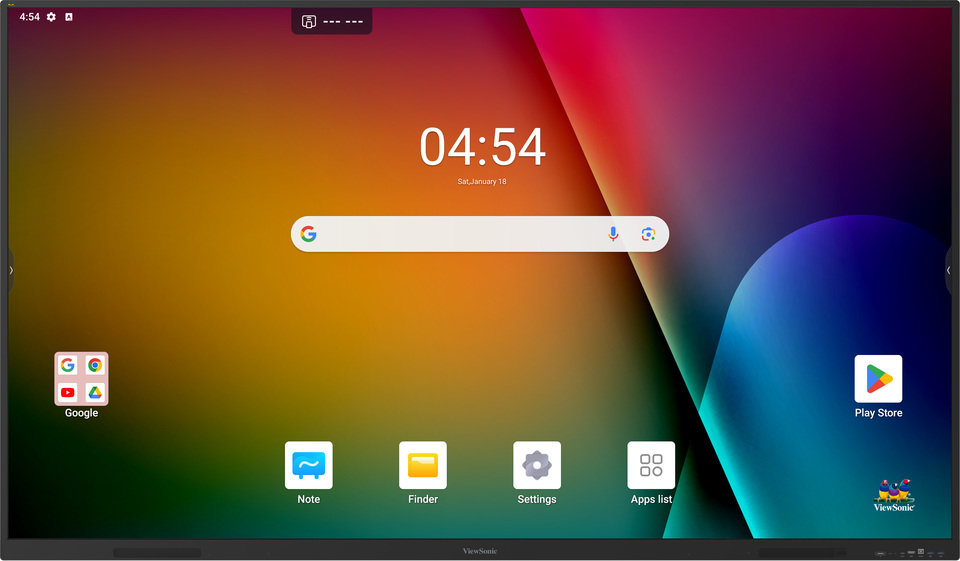

ViewBoard IN8603-1C
Product Description
The ViewBoard IN8603-1C interactive flat panel, powered by the Android™ Enterprise Device License Agreement (EDLA), integrates Android™ 14 and Google Play Store access for secure and enriched learning experiences. It features 4K UHD resolution with advanced bonding technology for vibrant colors and reduced glare. The 40-point Ultra Fine Touch touchscreen enables intuitive collaboration with fingers or dual-tip pens, while built-in speakers and one USB-C port enhance user convenience.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 86"
    Panel Type: TFT LCD Module with DLED Backlight
    Display Area (mm): 1895.04 (H) X 1065.96 (V) (85.6")
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07G colors (8-bit + FRC)
    Brightness: 450 nits
    Contrast Ratio: 5000:1 (max. with DCR enabled)
    Response Time: 8ms
    Viewing Angles: H=178, V=178
    Backlight Life: 50,000 Hours
    Surface Treatment: Hardness: 9H Anti-glare coating
    Orientation: Landscape
  • PLATFORM
    Processor: Octa-Core CPU (A53*4 + A73*4)
    GPU: Mali-G52 MP8
    RAM: 8GB DDR4
    Storage: 128GB
  • TOUCH
    Type/ Tech: Ultra Fine Touch Technology
    Touch Point: Windows: 40 Android: 40
  • INPUT
    HDMI: x2 (Frontx1:HDMI2.0 with CEC ; Rearx1: [HDMI2.0 with CEC/ ARC)x1]
    RGB / VGA: x1
    Audio: x1
    RS232: x1
    SD/SDHC: x1
    OPS: x1 (Optional Intel Standard OPS)
  • OUTPUT
    HDMI: x1
    Audio: x1
    SPDIF: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB3.2 Gen 1:Front x2 , Rear x2 (all support SmartPort)
    USB2.0:Rear x1
    Type B: USB 2.0:Frontx1, Rear x1
    Type C: USB 2.0: Front x1 with PD15W
  • SPEAKERS
    20W x 2
  • EMBEDDED OS
    Android 14 (EDLA)
  • POWER
    Voltage: 100-240V AC
    Consumption: On: 240W(Normal) ; Off: <0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 800*600
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 77.1x45.6x3.9(in) / 1957x1159x98.8 (mm)
    Packaging (inch / mm): 83.1x50.8x7.3(in) / 2110x1291x185(mm)
  • WEIGHT
    Net (lb / kg): 118.2lb / 53.6 kg
    Gross (lb / kg): 140.7lb / 63.8kg
  • REGULATIONS
    BIS, Energy Star
  • PACKAGE CONTENTS
    1. 3m power India power plug x 1 2. 3m HDMI cable x 1 3. 3m Touch USB cable (USB2.0) x 1 4. Touch pen x 2 5. Remote control x 1 6. AAA battery x 2 7.Wifi Dual band antenna*2 8. Quick Start Guide with Compliance statement 9. Screw x 4 (wall mount M8*25mm)
  • COMPATIBLE SLOT-IN PC
    VPCF5-W55-G1 / VPCF5-2A / VPC37-W53-G1 / VPC35-W53-G1
