Key Features
  • USB multimedia player
  • vController software
  • Supports HDMI CEC pass-through
  • HDMI, VGA, DVI, YPbPr, USB, IR, RJ45 input compatibility
  • Flicker-free and Blue Light Filter eye-care technologies

CDE3205-EP
Product Description
The ViewSonic CDE3205-EP is a great value 32’’ (31.5” viewable) Full HD LED presenation display with high reliability working time 16 hours per day/7 days a week for retail, hospitality, and QSR (Quick Service Restaurant) environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, YPbPr, USB, IR, RJ45, the display comes with a convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, IPS 178-degree wide viewing angles and 2 x 10W stereo speakers, the slim-bezel CDE3205-EP delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. Creating a more comfortable viewing experience, the display is equipped with Blue Light Filter technology.

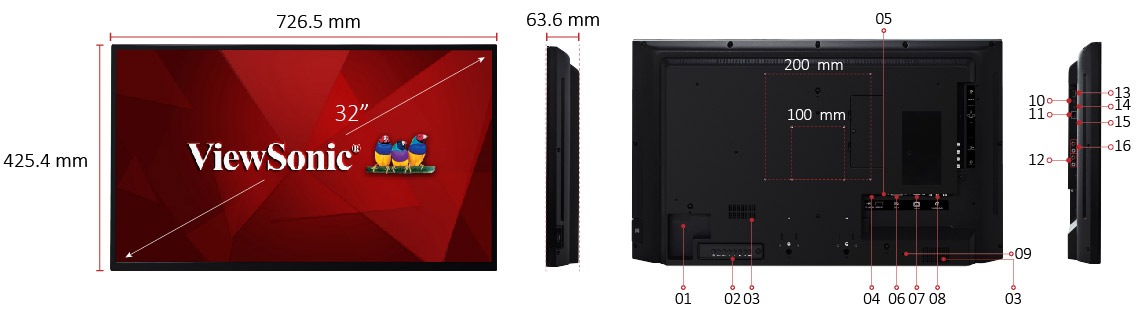

  1. AC In & Power Switch
  2. Menu Controls
  3. Speakers
  4. Audio In
  5. HDMI
  6. DVI In
  7. VGA In
  8. YPbPr IN
  9. Kensingtion Lock Slot
  10. RS232 In
  11. LAN
  12. RCA Audio In
  13. USB 2.0 (USB playback)
  14. RS232 out
  15. IR out
  16. RCA Audio Out
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 32"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 698.4(H) x 392.85(V)
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 16.7M colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: WLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 3H
  • INPUT
    HDMI: x 1
    RGB / VGA: x 1
    DVI: x 1
    Audio: x1 PC audio (3.5 mm), x 1 (RCA L/R)
    CVBS (AV): x 1 (Share with Y)
    YPbPr: x 1
    RS232: x 1
    IR: x 1 (over audio port)
  • OUTPUT
    Audio: x 1 (RCA L/R)
    RS232: x 1
    IR: x 1 (over audio port)
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 1 (USB Playback)
  • SPEAKERS
    10W x 2
  • COMPATIBILITY
    VGA: Up to 1920 x 1080
    DVI: Up to 1920 x 1080
    HDMI: 480i, 480p,720p, 1080i, 1080p
    CVBS: 480i
    YPbPr: 480i, 480p,720p, 1080i, 1080p
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: Normal 57 W, Max 81 W
  • ERGONOMICS
    Wall Mount (VESA® ): 100x100mm / 200x200mm ; Screw: M4*8 mm
  • OPERATING CONDITIONS
    Temperature (º C): 5°C to 40°C
    Humidity: 20% ~ 80% non-condensing
  • WEIGHT
    Net (kg / lb): 6.67 kg / 14.7 lbs (with Stand)
    Net w/o Stand (kg / lb): 5.20 kg / 11.46 lbs
    Gross (kg / lb): 7.8 kg / 17.20 lbs
  • REGULATIONS
    Standard: CE, CB, RoHS, ErP, WEEE
  • WHAT'S IN THE BOX?
    1. CDE3205-EP presenation display
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables
    6. VGA cable
    7. RS232 cable
    8. RS232 daisy chain cable (2.4mm – 2.4mm)
    9. IR sensor cable
