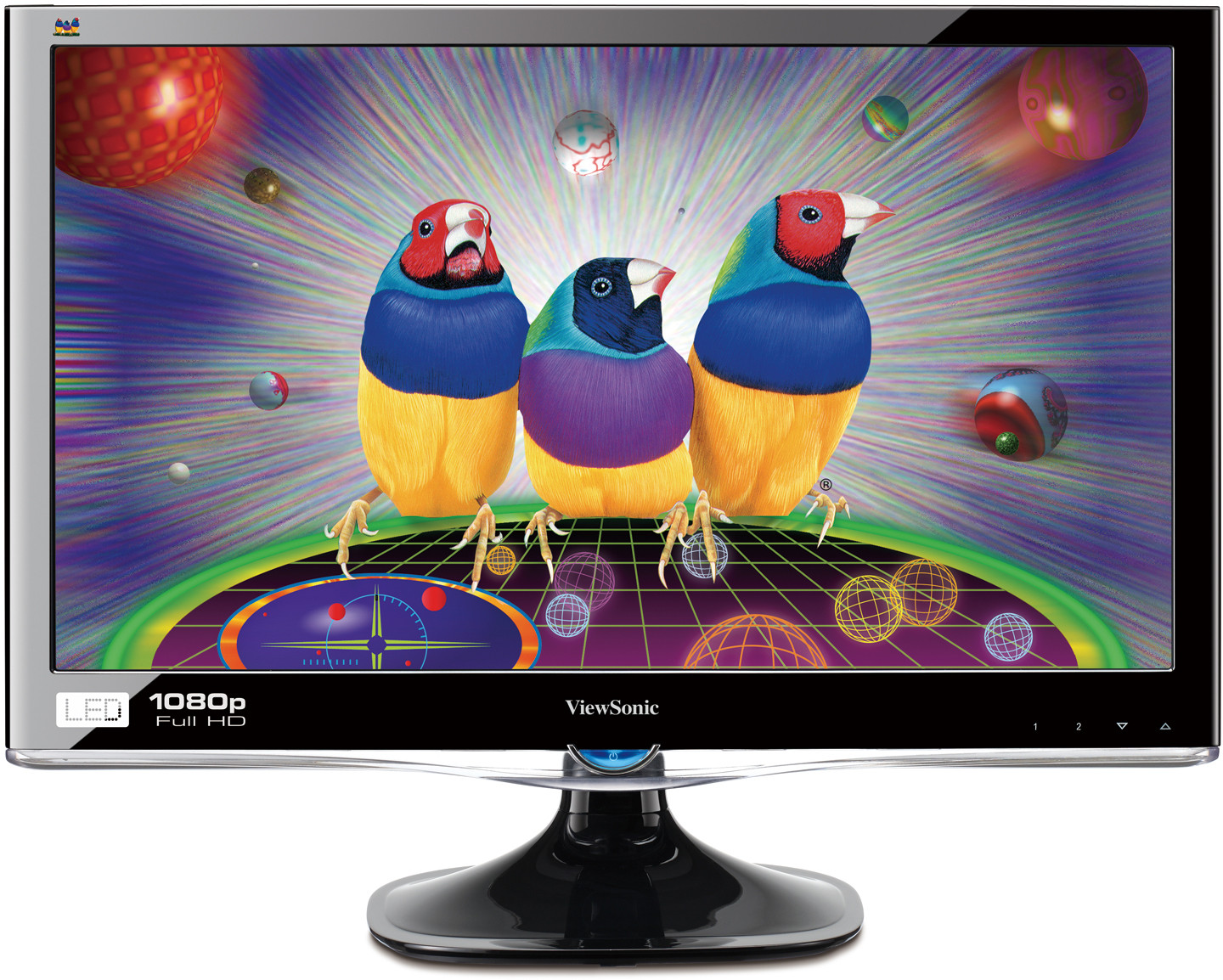

ViewSonic VX2450wm-LED 60cm/23.6" LED DISPLAY

COLORS

Black

LCD

Rapport de contraste:	1000:1(typical)
Angles de vue:	170° (H), 160° (V)
Résolution optimale:	1920×1080
Temps de réponse:	5 (typical)
Source lumière:	30,000 (typical)
Surface panneau:	Anti-Glare, Hard coating (3H)
Pas de pixel:	0.2715 mm (H) x 0.2715mm (V)
Prise en charge des couleurs:	16.7 Millions
Taille:	60cm/23.6" wide Color a-Si TFT Active Matrix LCD with 16:9 aspect ratio
Luminosité:	300 (typical)
Rapport de contraste dynamique:	20,000,000:1

COMPATIBILITÉ

Ordinateur: VGA up to 1920×1080 Non Interlaced

Mac®: 1920×1080 Non Interlaced
DIMENSIONS (MM)

Physique (LxHxP): 566.22 mm (W) x 443.22 mm (H)x214.48 mm (D)
ENTRéE

Synchronisation: Separate Sync / Composite Sync / SOG

Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Fréquence: 24–83kHz / 50–76Hz
CONNECTEURS

Analogique: 1×15 pin mini D-sub

Numérique: 1×DVI-D

Audio: 1x3.5mm jack

Alimentation: Built-in power Adapter, 3-Pin plug
ALIMENTATION

Tension: AC 100-240V (Universal); 50/60Hz(Switch)

Consommation: 28W (maximum)

Mode Economie (W): ≦0.1W

COMMANDES

De base:

[1], [2], Power, Down[▼], Up[▲]

OnView®:

Auto Image Adjust, Contrast/Brightness, Input Select, D-SUB, DVI, Audio Adjust Volume
mute, Colour Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Colour [R, G, B],
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness,
Dynamic Contrast, Response Time, Aspect Ratio, ECO Mode, Setup Menu Language,
Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off,
Memory Recall

MONTAGE MURAL

VESA® Mount Complliant 100 × 100
AUDIO

Haut-parleurs: 2.5w x 2
POIDS

Net: 4.5kg (9.92lbs)
CONDITIONS D'EXPLOITATION

Humidité: 10 - 90 (%)

Température: 0 - 40 (°C) / 32 - 104 (°F

Ordinateur:	VGA up to 1920×1080 Non Interlaced
Mac®:	1920×1080 Non Interlaced

Synchronisation:	Separate Sync / Composite Sync / SOG
Analogique:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Fréquence:	24–83kHz / 50–76Hz

Analogique:	1×15 pin mini D-sub
Numérique:	1×DVI-D
Audio:	1x3.5mm jack
Alimentation:	Built-in power Adapter, 3-Pin plug

Tension:	AC 100-240V (Universal); 50/60Hz(Switch)
Consommation:	28W (maximum)
Mode Economie (W):	≦0.1W

Humidité:	10 - 90 (%)
Température:	0 - 40 (°C) / 32 - 104 (°F
