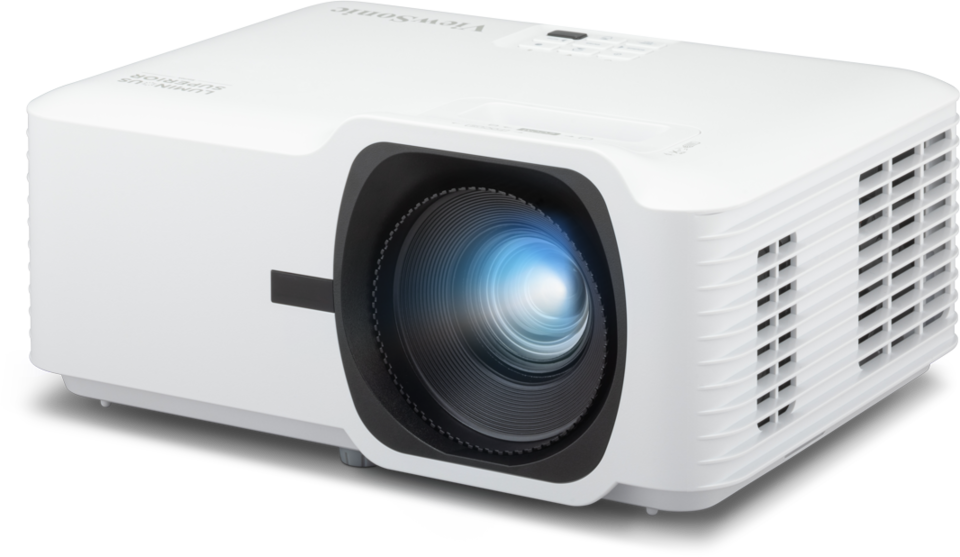

Проектор
LSD401HD
Ключевые особенности
- 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
- Centralized LAN control for efficient management
Описание продукта
The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

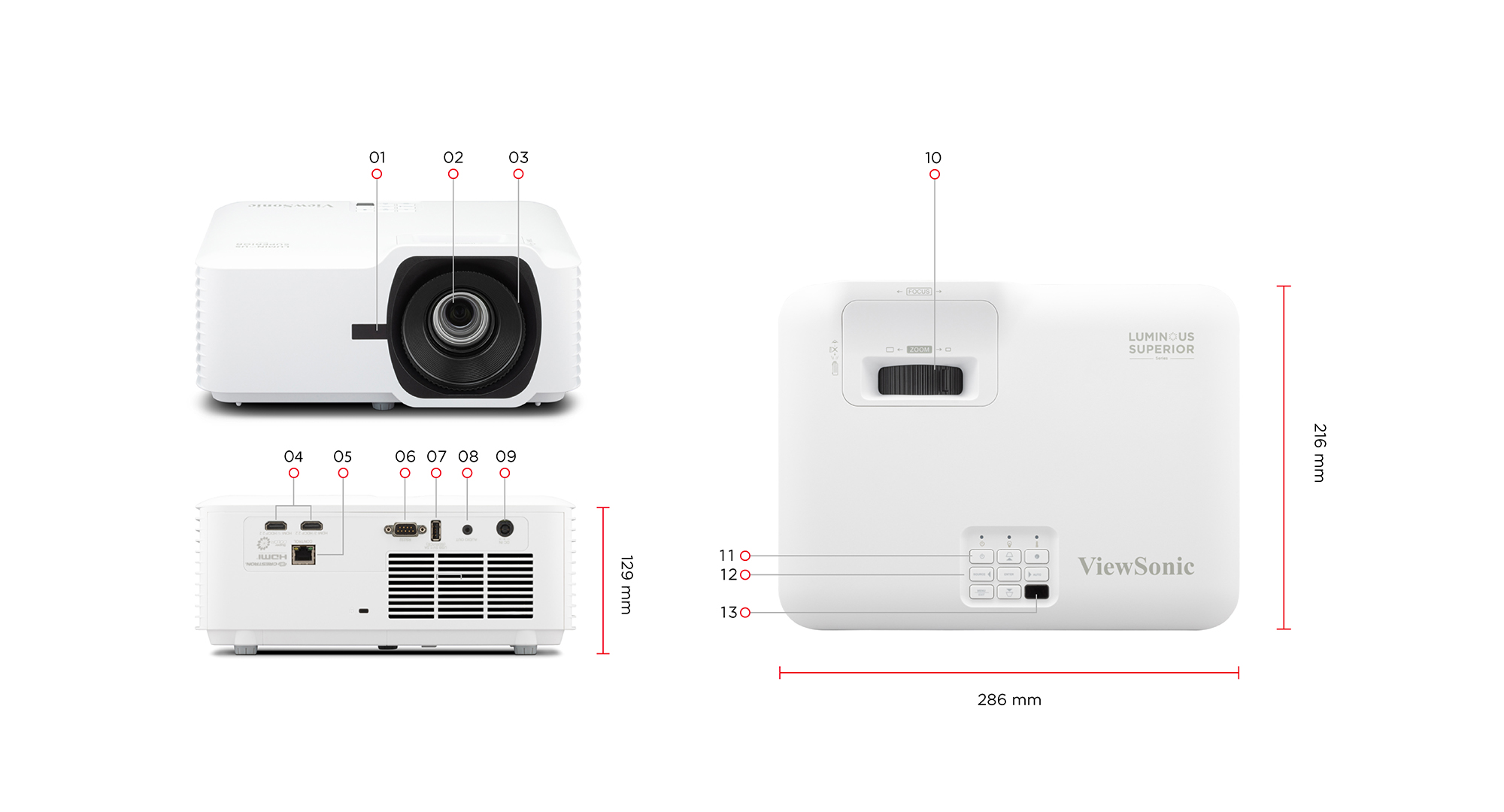

- Front IR
- Lens
- Focus Ring
- HDMI 2.0 / HDCP 2.2 x2
- RJ45
- RS232
- USB-A (5V/1.5A, Service)
- Audio Out
- DC In
- Zoom Ring
- Power Button
- Keypad
- Top IR
Посетите нас
- www.viewsonic.com
-
Спецификация
Проекционная система: 0.65" 1080P Аппаратное разрешение: 1920x1080 Яркость: 4000 (ANSI Lumens) Brightness (Center Lumens): 4400 Коэффициент контрастности: 3000000:1 Display Color: 1.07 Billion Colors Тип источника света: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Объектив: F=2.43-2.78, f=16.90-21.61mm Смещение проекции: 132%+/-10% Проекционный коэффициент: 1.13-1.47 Оптический зум: 1.3X Цифровой зум: 0.8x-2.0x Размер изображения: 30"-300" Проекционное расстояние: 0.75-9.76m
(100"@2.50m)Коррекция трапецеидальных искажений: H:+/-30° , V:+/-30° Слышимый шум (нормальный режим): 32dB Audible Noise (Eco): 27dB Задержка ввода: 16.7ms Поддержка разрешения: VGA(640 x 480) to 4K UHD(3840 x 2160) HDTV-совместимость: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Частота горизонтальной развертки: 15K-135KHz Скорость вертикального сканирования: 24-120Hz -
Вход
HDMI: 2
(HDMI 2.0, HDCP 2.2) -
Выход
Audio-out (3.5mm): 1 Speaker: 15W USB Type A (Power): 1 (5V/ 1.5A) -
Управление
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
Другое
Напряжение питания: Power adaptor:
Input: 100~240V
Output: 19.5VDC / 9.23AПитание: Normal: 143W
Standby: <0.5WРабочая температура: 0~40℃ Carton: Brown Вес нетто: 3.00kg Gross Weight: 4.50kg Размеры (ШxГxВ) с регулировочной ногой: 286x216x129mm Packing Dimensions: 400x280x155mm Язык меню: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Шнур питания: 1 Пульт ДУ: 1 Инструкция по быстрому запуску: Yes Warranty Card: Yes (CN Only) -
Дополнительные аксессуары
Wall/Ceiling Mount: PJ-WMK-007 Сумка для переноски: PJ-CASE-008
