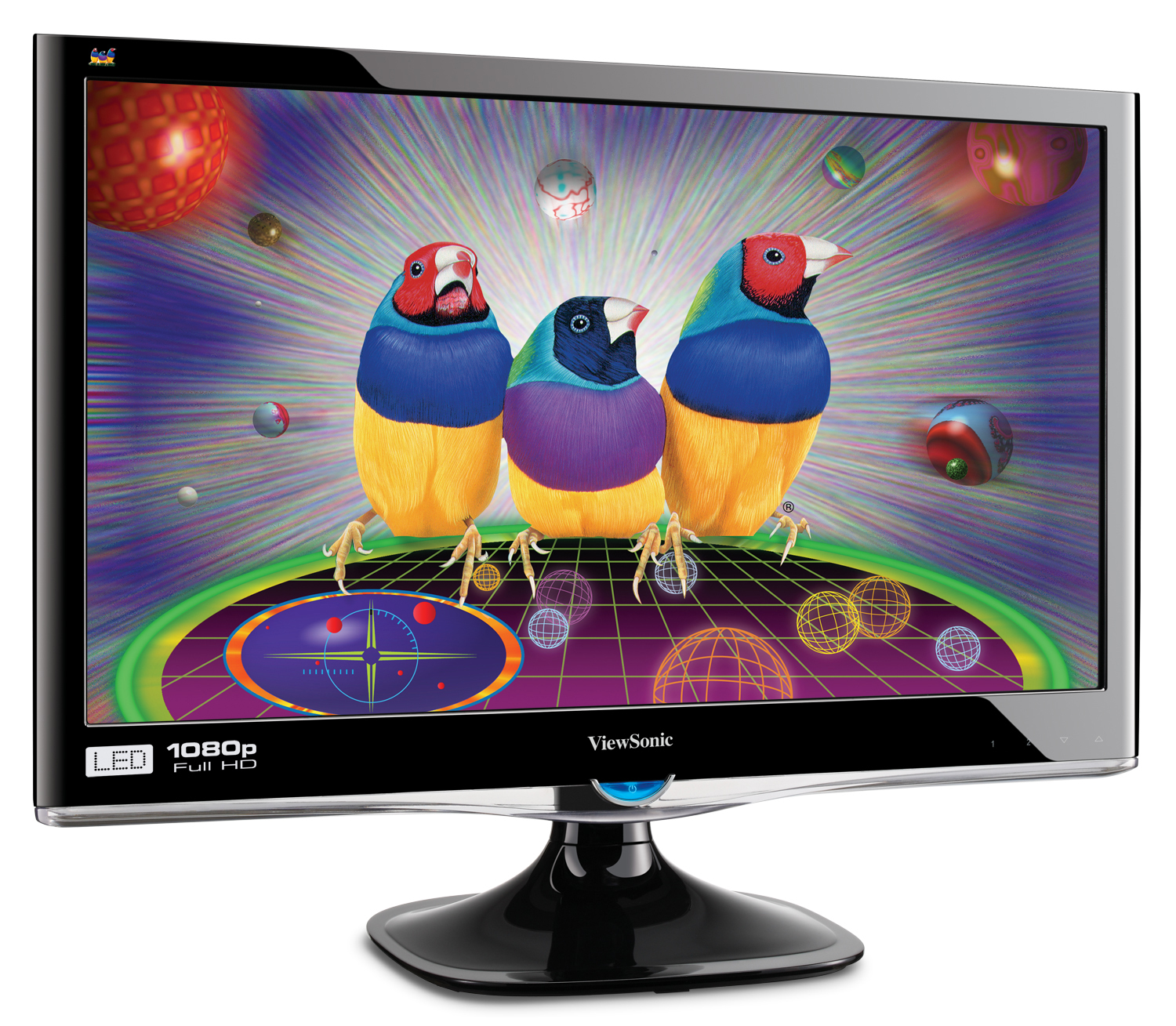

ViewSonic VX2250wm-LED 55cm/21.5" LED Display

LCD

유형:	21.5" wide Color TFT Active Matrix LCD 16:9 aspect ratio
Display Area:	21.5 inch
Optimum Resolution:	1920x1080
대비 비율:	1000:1 (typical), 20000000:1 (DCR)
밝기:	250 cd/m² (typ)
보기 각도:	170° (H), 160° (V) (CR≥10 / CR≥5)
응답 시간:	5ms
Panel Surface:	Anti-Glare, Hard coating (3H)
광원:	25,000 hrs (minimum)

비디오 입력

Analog: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: Fh: 24-83KHz; Fv: 50-75Hz

Sync: Separate Sync / Composite Sync / SOG
호환성

PC: VGA up to 1920×1080 Non Interlaced

Mac: 1920×1080 Non Interlaced
커넥터

Analog: 1×15 pin mini D-sub

Digital: 1×DVI-D (Supported HDMI ver.1.3 spec/Display port 1.1 spec

오디오: 3.5mm jack

힘: Built-in power Adapter, 3-Pin plug
힘

전압: AC 100-240V (Universal); 50/60Hz(Switch)

소비.: 26W (typical) / 39W (maximum)

컨트롤

Basic:

[1], [2], Power, Down, Up

OSD:

Auto Image Adjust, Contrast/Brightness, Input Select: D-SUB, DVI, Color Adjust sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]Information Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Response Time, Aspect Ratio , ECO Mode Setup Menu: Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory Recall: [ 1 ] : Main Menu [ 2 ] : Input Select

작동 조건

온도: 0 - 40 (°C) / 32 - 104 (°F)

습도: 20-90% (Non condensed)
치수

Physical: 521.21mm (폭) x 403.71mm (신장) x 189.98mm (깊이)
체중

그물: 3.5 kg
벽 마운트

100mm x 100mm

Analog:	RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)
Frequency:	Fh: 24-83KHz; Fv: 50-75Hz
Sync:	Separate Sync / Composite Sync / SOG

PC:	VGA up to 1920×1080 Non Interlaced
Mac:	1920×1080 Non Interlaced

Analog:	1×15 pin mini D-sub
Digital:	1×DVI-D (Supported HDMI ver.1.3 spec/Display port 1.1 spec
오디오:	3.5mm jack
힘:	Built-in power Adapter, 3-Pin plug

전압:	AC 100-240V (Universal); 50/60Hz(Switch)
소비.:	26W (typical) / 39W (maximum)

온도:	0 - 40 (°C) / 32 - 104 (°F)
습도:	20-90% (Non condensed)
