주요 기능

VG2239m-LED
제품 설명

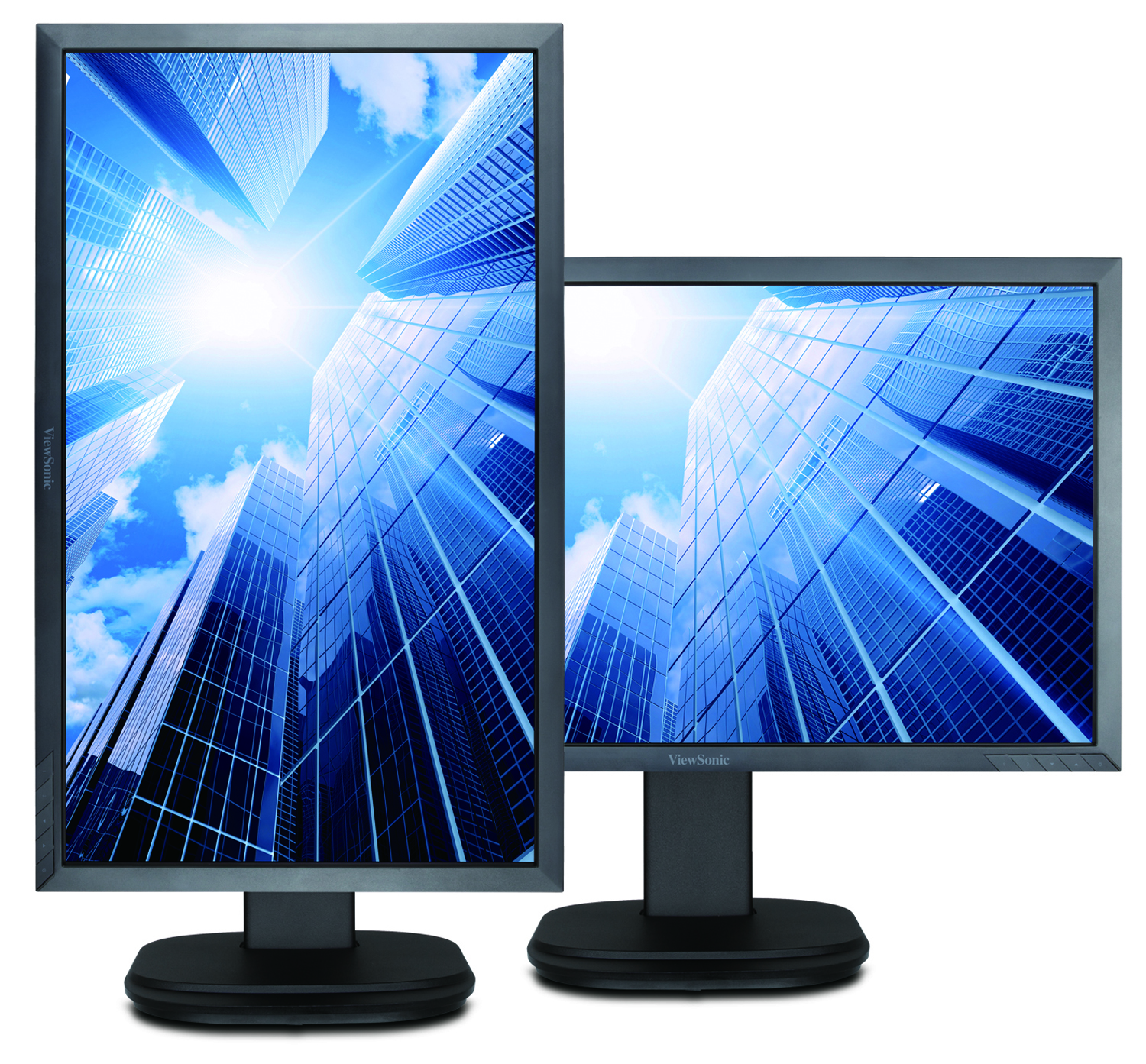

The VG2239m-LED widescreen monitor is one of two new members of ViewSonic’s new VG39 family. Its 56cm/22” (55cm/21.5” viewable) display with a native Full HD resolution. What makes it even more appealing is the LED backlight for up to 50% energy savings. This monitor is also fully ergonomic with 90º pivot, height adjust, swivel and tilt. The slim bezel design coupled with hidden stereo speakers make the VG2239m-LED a space saver. You can put it on your desk or mount on your wall or on any VESA compliant monitor stand.
방문
  • www.viewsonic.com
  • LCD
    유형: 56cm / 22” (55cm / 21.5” viewable) wide
    Display Area: 21.5 inch
    Optimum Resolution: 1920x1080
    대비 비율: 1000 :1 (typical), 20,000,000:1 (DCR)
    밝기: 250 cd/m2 (typ)
    보기 각도: 170º horizontal, 160º vertical
    응답 시간: 5ms
    Panel Surface: Anti-glare, hard-coating (3H)
    광원: 30,000 hours (min.)
  • 비디오 입력
    Analog: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
    Digital: DVI-D (TMDS, 100Ω), Display Port
    Frequency: Fh: 24-82KHz; Fv: 50-75Hz
    Sync: H/V separated (TTL)
  • 호환성
    PC: VGA up to 1920 x 1080 @ 60Hz (preferred)
    Mac: Power Mac (up to 1920 x 1080)
  • 커넥터
    Analog: 15-pin mini D-sub (VGA)
    Digital: DVI-D (with HDCP), DisplayPort
    USB: x 2 (V2,0, 1-up / 2-down)
    오디오: Out: 3.5mm Headphones; In:3.5mm
    힘: Internal Power Board, 3-pin plug (CEE22)
  • 오디오
    Speakers: 2 watt (x2)
  • 힘
    전압: AC 100–240V (universal), +/-10% Wide Range
    소비.: 24W (Typ.); Optimize: 19W (Typ.); Off/Standby <= 0.5W
  • 컨트롤
    Basic: Power, 1, down, up, 2
    OSD:

    Auto Image Adjust, Contrast/Brightness, Input Select, DisplayPort, Audio Adjust, Audio Input, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
  • 작동 조건
    온도: 32° F to 104° F (0° C to 40° C)
    습도: 10% to 90% (non-condensing)
  • 치수
    Physical: 512.4mm (폭) x 418mm (신장) x 239.6mm (깊이)
  • 체중
    그물: 4.7 kg
  • 벽 마운트
    VESA® 100x100 mm
