주요 기능

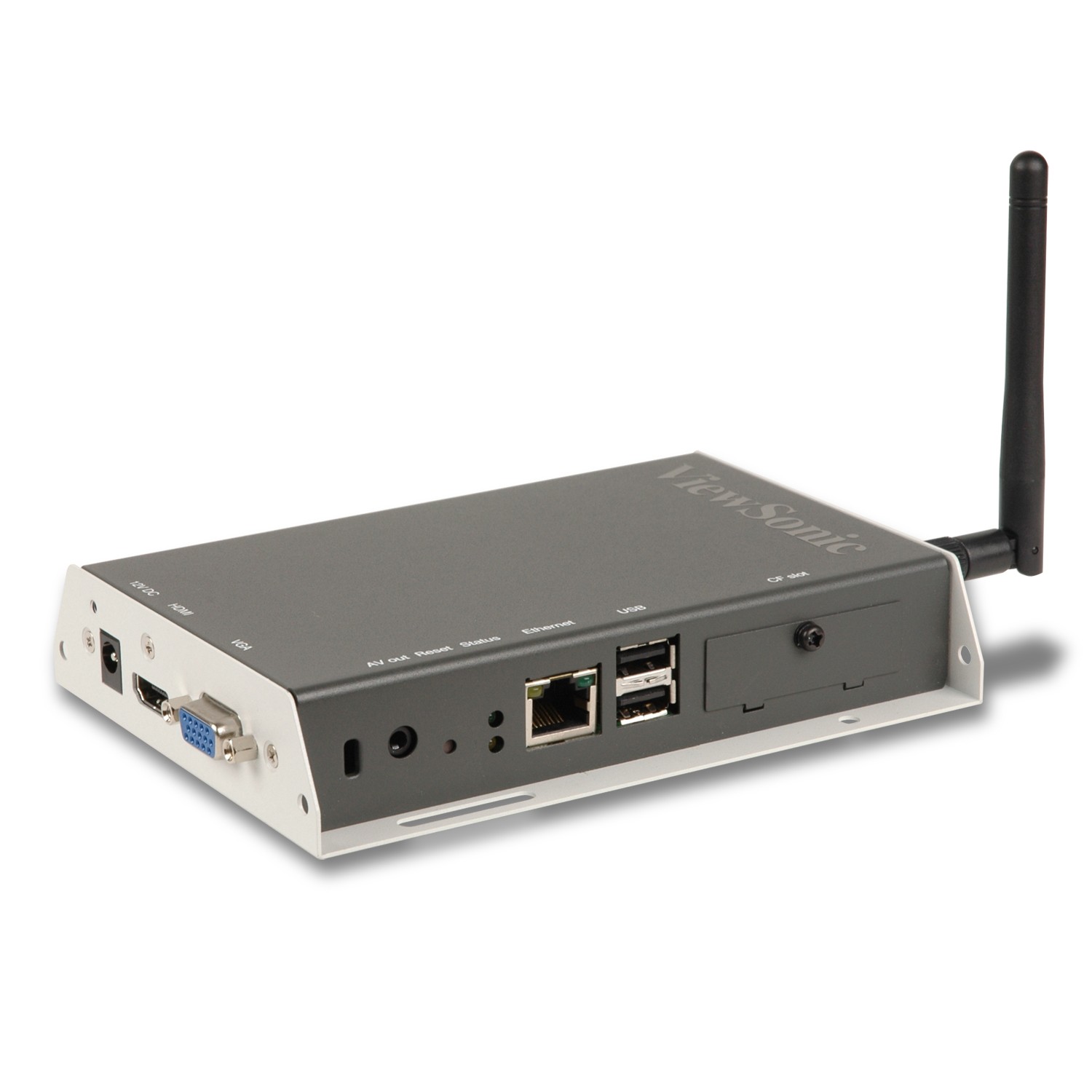

NMP-570W
제품 설명
ViewSonic’s new NMP570w full HD wireless media player provides extreme reliability and stunning 1080P video playback mixed with rich content harnessed live from the cloud. The NMP570w utilizes the latest technologies - HTML5 for delivering dynamic information at the point of service over the web or from a network server. Easy –to-use content management software – Signage Manager Express now offers expanded templates in both landscape and portrait supporting HTML5 “Smart Widgets” for multi-zone screen applications.
방문
  • www.viewsonic.com
  • 코어
    CPU: ARM
  • 기억
    유형: NAND Flash
    용량.: 4GB
  • 소프트웨어
    운영 체제: Embedded Linux
  • INPUT
    CF 카드: x1
  • OUTPUT
    RGB / VGA: x1
    HDMI: HDMI 1.3 x 1
    오디오: x1 Earphone Out
    CVBS: x1, by phone jack combine AV out
  • LAN
    RJ45: x1
  • WIRELESS
    802.11 b,g,n
  • USB
    A형: x2
  • 지원 미디어 형식
    비디오 포맷: POPAI Screen Media Standards
    S6 (MPEG-1 SIF, 3Mbps CBR)
    S7 (MPEG-1 480p, 10Mbps CBR)
    S8 (MPEG-1 720p, 15Mbps CBR)
    S9 (MPEG-2 480p, 6Mbps CBR)
    S10 (MPEG-2 720p, 12Mbps CBR)
    S11 (MPEG-4 AVC, 480p, 6Mbps CBR)
    S12 (MPEG-4 AVC, 720p, 10Mbps CBR)
    E4 (VC-1/WMV9, MP@ML, 720p)
    E5 (VC-1/WMV9, MP@HL, 1080p)
    E6 (MPEG-2, 1080p, 20Mbps CBR)
    E7 (MPEG-4 ASP, 480p, 10Mbps CBR)
    E8 (MPEG-4 AVC, 1080p, 25Mbps CBR)
    이미지 형식: POPAI Screen Media Standards
    S1 (JPEG 480p baseline)
    S2 (JPEG 720p baseline)
    S3 (JPEG 1080p baseline)
    E1 (PNG 24bpp+alpha, 480p)
    E2 (PNG 24bpp+alpha, 720p)
    E3 (PNG 24bpp+alpha, 1080p)
    오디오 코덱: POPAI Screen Media Standards
    S4 (MPEG L2 audio)
    S5 (MP3 audio, 384Kbps)
    동적 콘텐츠: W3C HTML5 (HTML, CSS, JavaScript)
    W3C SMIL 3.0 instructions (sub-set)
  • 소프트웨어 번들
    Signage Manager Express
  • 힘
    전압: DC 12V (max), AC Adapter 12V DC 1.5A
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    습도: 5% ~ 85% non-condensing
  • DIMENSIONS
    (W X H X D)
    물리적(인치/mm): 5.94 x 4.33 x 1.13 / 150.8 x 110 x 28.6
  • WEIGHT
    순(lb/kg): 0.76 / 0.35
    총중량(파운드/kg): 3 / 1.4
  • 패키지 내용물
    1. NMP-570W Media player 2. AC adapter 3. Ethernet cable 4. Quick Start Guide 5. User Guide on CD 6. Signage Manager Express CD
