주요 기능
  • Pre-assembled kit ready for instant use
  • Foldable screen with the movable flight case for easy delivery
  • Built-in stand with motorized height adjustment
  • Impressive audio from Harman Kardon speakers
  • Seamless large display for rental at any event/exhibition

LDS135-151
제품 설명
The ViewSonic® LDS135-151 is a foldable 135” All-in-One LED display that boasts instant use, easy delivery, and convenient maintenance, making it an ideal rental-ready solution for events, exhibitions, or any other short-term usage. The pre-assembled design and built-in motorized height adjustment stand enable effortless setup within just a few minutes. Delivery convenience is greatly enhanced with the new foldable screen design, reducing the packaging size of the movable flight case by nearly 50% compared to the previous generation, thus minimizing shipping costs. With the seamless large screen and superior built-in Harman Kardon speakers, be ready to impress your audience everywhere from high-end board rooms and receptions to galleries, auditoriums, and other large venues.

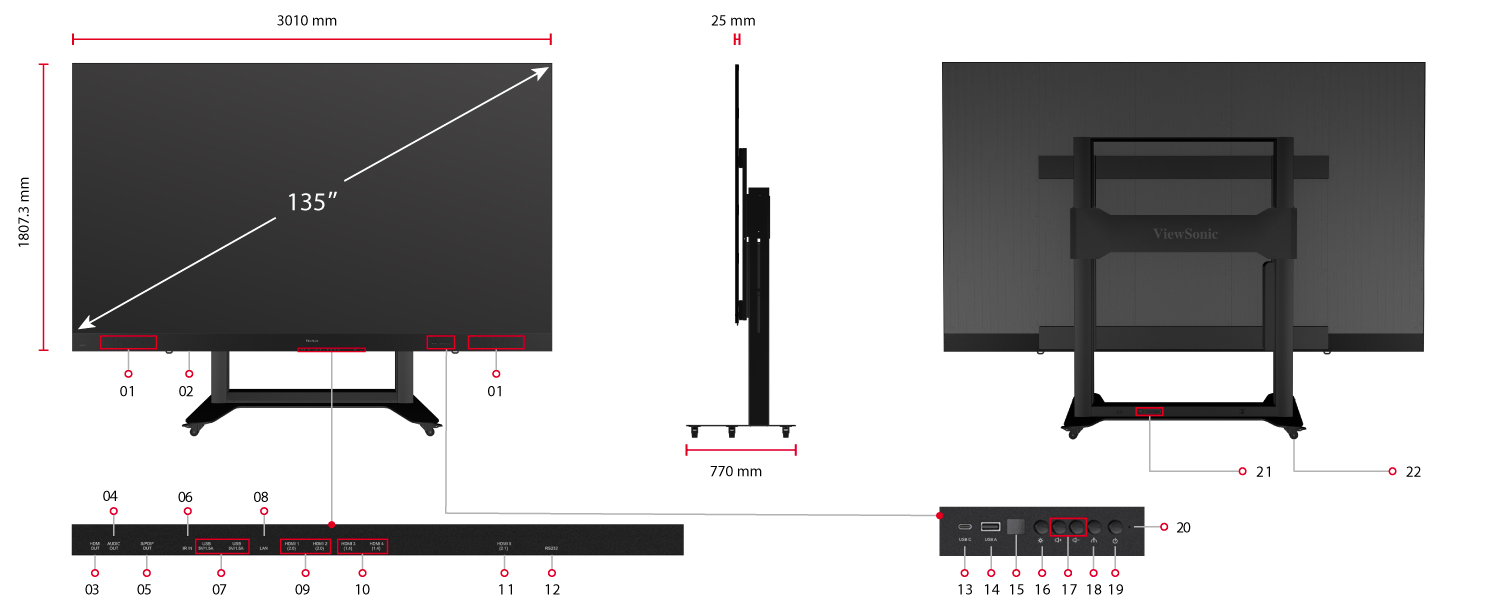

  1. Harman Kardon Speakers
  2. Power Button
  3. HDMI Out
  4. Audio Out
  5. S/PDIF Out
  6. IR In
  7. USB 2.0 (5V/1.5A) x 2
  8. LAN & Control
  9. HDMI 2.0 x 2
  10. HDMI 1.4 x 2
  11. HDMI 2.1
  12. RS232
  13. USB-C (5V/2A)
  14. USB 2.0 (5V/1.5A)
  15. IR Receiver
  16. Menu Control: Brightness Level
  17. Menu Control: Volume
  18. Menu Control: Input Source
  19. Power Button
  20. Indicator Light
  21. Control Panel: Height Adjustment
  22. 360° Silent Wheels
방문
  • www.viewsonic.com
  • 사양
    Screen Size: 135''
    표시면적(mm): 3000 (H) x 1687.5V)
    기본 해상도: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Pixel Pitch (mm): 1.56
    Refresh Rate: 4440Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    오리엔테이션: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    로컬 스토리지: Total 64GB
    (56GB available storage)
    임베디드 OS: Android 9.0
    해상도 지원: VGA(640 x 480) to
    1080p(1920 x 1080)
    HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
    수평 주파수: 23-120 kHz
    수직 검색 속도: 15-135 Hz
  • 입력
    HDMI: x6
    (HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2, HDMI 2.0 internal x1)
    USB 타입 A: x3
    ( USB2.0 x3)
    RJ45 Input (Internet): x1
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB 타입 C: x1
    (Video input、 Power output (5V/2A))
  • 산출량
    HDMI out: x2
    (HDMI 2.0 external x1,internal x1)
    스피커: 20W x2 (Harman Kardon)
    오디오 출력(3.5mm): x1
    USB 타입 A(전원): Shared with USB input
    (5V/1.5A x3)
  • 통제
    RJ45 (LAN control): x1
    USB Type A (Services): x1(shared with USB A input)
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • 다른이들
    전원 공급 전압: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
    (vary by country)
    전력 소비: 1500W (typ), 2500W (max)
    < 0.5W (Sleep), < 0W (Off)
    작동 온도: 0~40℃
    LED Module Quantity: 100
    Ingress Protection Rating: IP30
    순 중량: 564 lbs
    (253 kg)
    Gross Weight: 965 lbs
    (438 kg)
    Screen Dimensions (WxHxD): 1800x1948x770 mm(min.)
    3010x2598x770 mm(max.)
    Packing Dimensions (WxHxD): 74.8x80x31.5 inches
    (1900x2032x800 mm)
  • STANDARD ACCESSORIES
    전원 코드: x1
    LAN Cable (Cat 5A): x1 (5m)
    원격 제어: x1
    QSG: x1
    Spare Parts: LED PCB Unit x7
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
