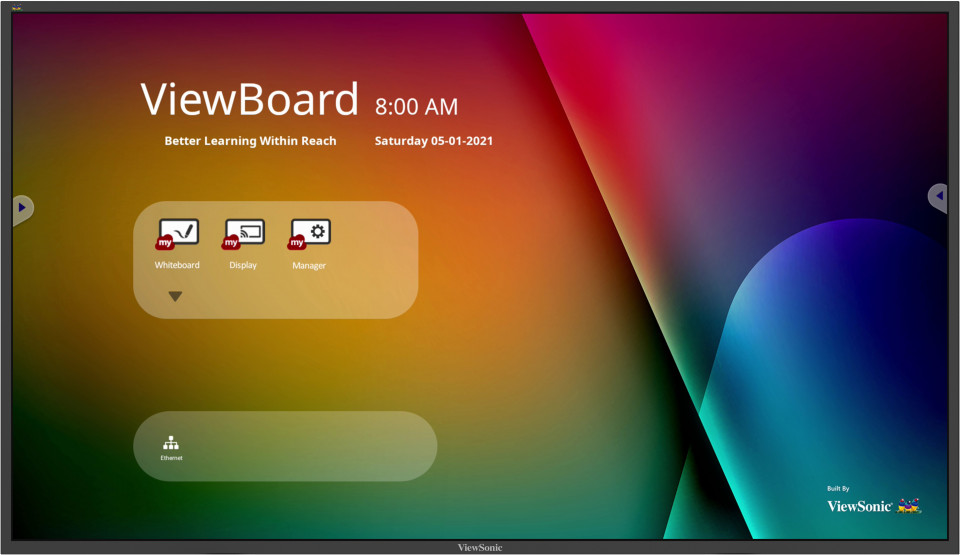

ViewBoard
IFP4320
주요 기능
- Enhanced flexibility for various huddle spaces
- Smoother writing experience from 10-point intuitive In-cell Touch technology
- Simple and seamless content sharing with USB Type-C connectivity
- Wireless casting and remote management with myViewBoard™ ecosystem
- Built-in ViewBoard® Cast for simultaneous annotation and productive collaborations
제품 설명
Give your huddle spaces the power and flexibility of hybrid collaborations with the sleek, compact ViewBoard® IFP4320 display. Designed to enhance smaller meeting spaces, the 43" screen boasts intuitive 10-point In-cell Touch technology for a smoother and more responsive writing experience with every tap, pinch, and swipe. Enjoy true interactivity and dynamic productivity with a single-cable plug-and-play solution from USB Type-C connectivity and seamless content sharing across different platforms. Integrated with myViewBoard ecosystem applications such as Whiteboard, Display, and Manager, you have complete control over huddle management, wireless content casting, and device settings wherever you are.
- Internal Speakers
- USB Type-C
- USB 2.0 Touch (Type-B)
- Audio Out
- PC Line-In
- VGA
- DVI-D
- DisplayPort
- HDMI 2.0
- VESA 400x400
- Menu Controls
- RS232
- LAN
- USB 2.0 (Type-A)
- SMART USB
- SPDIF
- AC In
- Power
방문
- www.viewsonic.com
-
표시
패널 크기: 43" 패널 유형: TFT LCD Module with ELED Backlight 표시면적(mm): 941.184 (H) x 529.416 (V) (42.51” diagonal) 가로 세로 비율: 16:9 결의안: UHD 3840x2160(Pixels) Colors: 1.07B colors (10bit) 밝기: 350 nits (typ.) 대비 비율: 1000:1 응답 시간: 9 ms 보기 각도: H = 178, V = 178 typ. 백라이트 라이프: 30,000 Hours (Typ) 표면 처리: Anti-Glare4H hardness 베젤: L:10.9/R:10.9/T:10.9/B:13.8 mm 오리엔테이션: Landscape -
플랫폼
프로세서: ARM Cortex A73 + A53 RAM: 3GB DDR4 보관소: 16 GB -
TOUCH
유형/기술: LGD In-cell 10 points touch 터치 해상도: 32767 x 32767 터치 포인트: Windows/Android: 10 points touch -
INPUT
HDMI: 2.0 x1 (3840x2160 @60Hz) RGB / VGA: x1 디스플레이 포트: x1 DVI: x1 오디오: x1 (PC audio in, 3.5mm jack) RS232: x1 -
OUTPUT
오디오: x1 (Earphone out) SPDIF: x1 (Fiber) -
LAN
RJ45: x1 -
USB
A형: USB2.0 Bottom x2 B형: x1 for HDMI/DP/DVI/VGA touch C형: x1 (DP1.2, 60W power delivery) -
스피커
10W x 2 -
COMPATIBILITY
RGB PC/HDMI PC: 1080p/4K @ 60Hz HDMI: 3840x2160 @ 60Hz 디스플레이 포트: 3840x2160 @ 60Hz DVI: 3840x2160 @ 30Hz -
임베디드 OS
Android 8.0 -
소프트웨어 번들
기본 주석 소프트웨어: myViewBoard Whiteboard for Android Wireless Presentation: ViewBoard Cast & myViewBoard Display -
특수 기능
All-in-one USB port: Bottom “Smart USB” port for all channels. -
힘
전압: 100-240VAC +/- 10% Wide Range 소비.: On:120W(typ.) / Off: <0.5W -
ERGONOMICS
벽면 장착(VESA® ): 400 x 400 -
OPERATING CONDITIONS
온도(θ C): 0°C to 40°C 습도: 20% ~ 80% RH Non-Condensing -

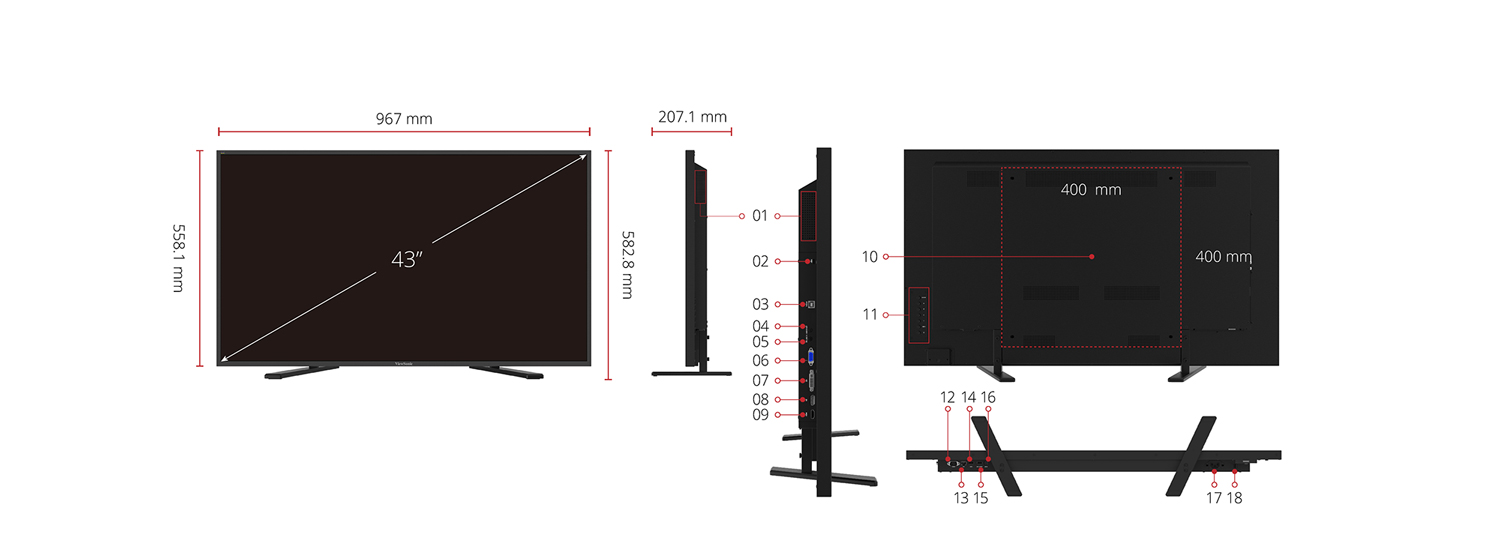

치수(가로 X 세로 X 세로)
물리적(인치/mm): 967 x 558.1 x 55.7 mm / 38.072 x 21.973 x 2.193 in. (w/o Stand); 967 x 582.8 x 207.1 mm / 38.072 x 22.943 x 8.155 in. (with Stand) 포장(inch/mm): 1200 x 785 x 210 mm / 47.24 x 30.91 x 8.27 in. -
WEIGHT
순(lb/kg): 17.83 kg / 39.3 lbs (w/o Stand); 18.41 kg / 40.59 lbs (with Stand) 총중량(파운드/kg): 22.63 kg / 49.89 lbs -
REGULATIONS
cULus, FCC, Energy Star, CEC, Mexico Energy, CE, CB, RoHS, RACH -
패키지 내용물
1. IFP4320
2. Power Cables (1.8 M)
3. Remote Control with batteries
4. Quick Start Guide
5. Stand (STND-056)
6. HDMI cable (1.0M)
7. USB Type-C Cable (1.0 M)
8. USB Touch Cable (1.0 M) (Type A – Type B)
9. RS232 Adapter (Female to Female)
