상업용 디스플레이
CDE8630
주요 기능
- Wireless presentation for enhanced efficiency
- Single USB-C cable for 65W power delivery
- 24/7 video playback for continuous communication
- Remote device management with myViewBoard Manager
- ProAV compatibility with Crestron, Extron, and AMX
- Portrait-oriented display for impactful brand signage
제품 설명
With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and vCast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze. Available in six sizes ranging from 43" to 98", the CDE30 Series features HDMI input and output for seamless tiling of up to 9 screens, meeting the communication needs of any campus, corporate, or retail space.

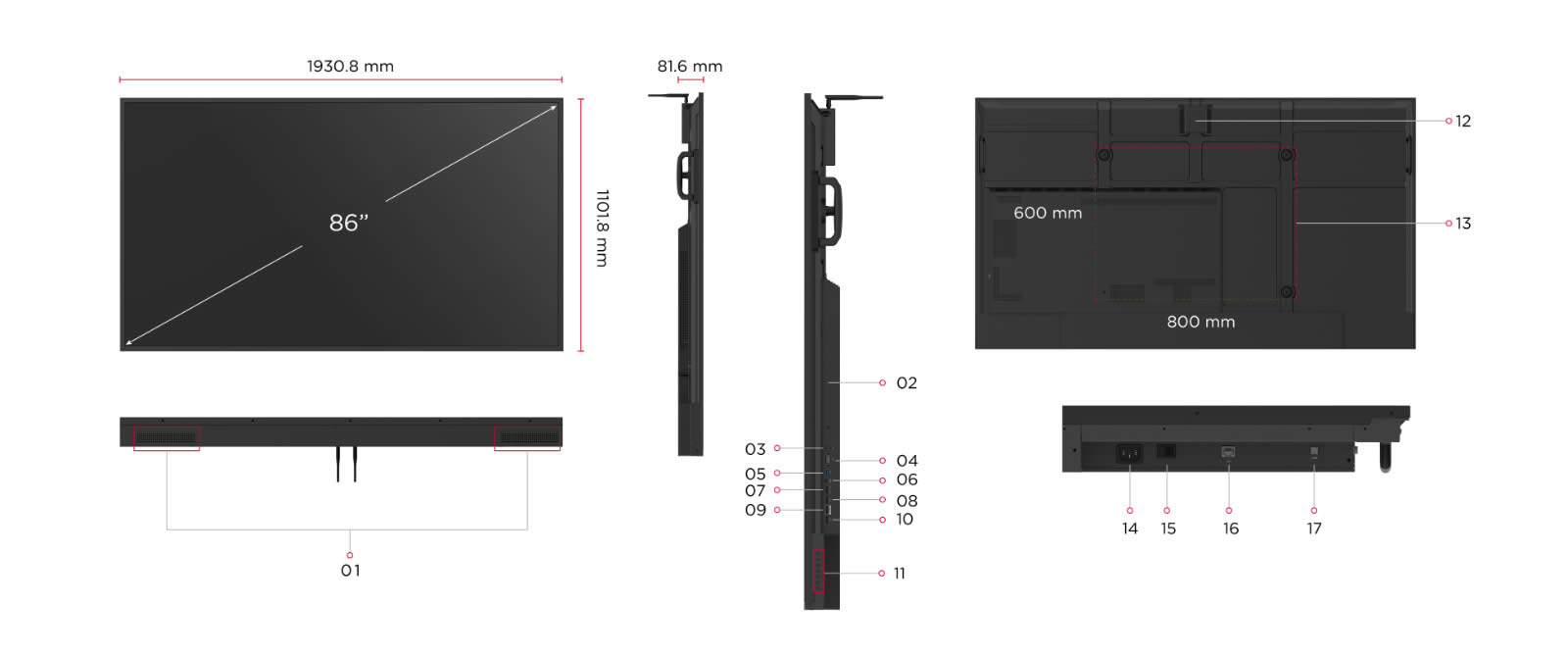

- Speaker
- OPS Slot
- USB 2.0
- RS-232
- USB 3.0
- USB-C
- HDMI 1(ARC)
- HDMI 2
- HDMI OUT
- HDMI 3
- Control Panel
- WiFi Slot
- VESA® Wall Mount (800x600mm)
- AC IN
- Power Switch
- LAN
- SPDIF
방문
- www.viewsonic.com
-
표시
패널 크기: 86" 유형/기술: TFT LCD Module. ADS type, DLED backlight 표시면적(mm): 1895.04 (H) ×1065.96 (V) (86” diagonal) 기본 해상도: 3840 x 2160 가로 세로 비율: 16:9 Colors: 1.07G (8bits + FRC-) 밝기: 450 nits (typ.) 대비 비율: 1200:1 (typ.), 5000:1 (DCR enabled) 응답 시간: 8ms 보기 각도: H = 178, V = 178 typ. 백라이트 라이프: 50,000 hours 표면 처리: Anti-Glaire, 3H hardness, Haze 25% 베젤: 14.7/14.7/14.7/14.7 mm (L/R/T/B) 오리엔테이션: Landscape & Portrait -
플랫폼
프로세서: Quad-core ARM Cortex A55 RAM: 4GB 보관소: 32GB -
INPUT
HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC) RS-232: x 1 OPS Slot: x 1 WiFi Slot: x 1 -
OUTPUT
HDMI: 2.0 x1 ( 3840x2160 @60Hz ) SPDIF: x 1 -
LAN
RJ45: x 1 -
USB
A형: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB) C형: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet) -
스피커
10W x2 -
임베디드 OS
Android 11 -
POWER
전압: 100-240 VAC +/- 10% 소비.: 172 W(typ.) < 0.5W(off) -
OPERATING CONDITIONS
온도(θ C): 0 to 40℃ 습도: 10%-90% RH -
OPERATING HOURS
7/24 -
치수(가로 X 세로 X 세로)
물리적(인치/mm): 76.02 x 43.38 x 3.21in/ 1930.8 x 1101.8 x 81.6mm 포장(inch/mm): 83.07 x 48.3 x 8.86 in./2110 x 1227 x 225 mm -
WEIGHT
순(lb/kg): 95.13 lbs/43.15 kg 총중량(파운드/kg): 133.93 lbs/60.75 kg -
REGULATIONS
cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65 -
패키지 내용물
1. Remote Control with batteries
2. Quick Start Guide
3. Power Cables
4. HDMI cable
5. USB-C cable
6. Wall Mount Screw x 4
7. RS232 adapter
8. Compliance statement
