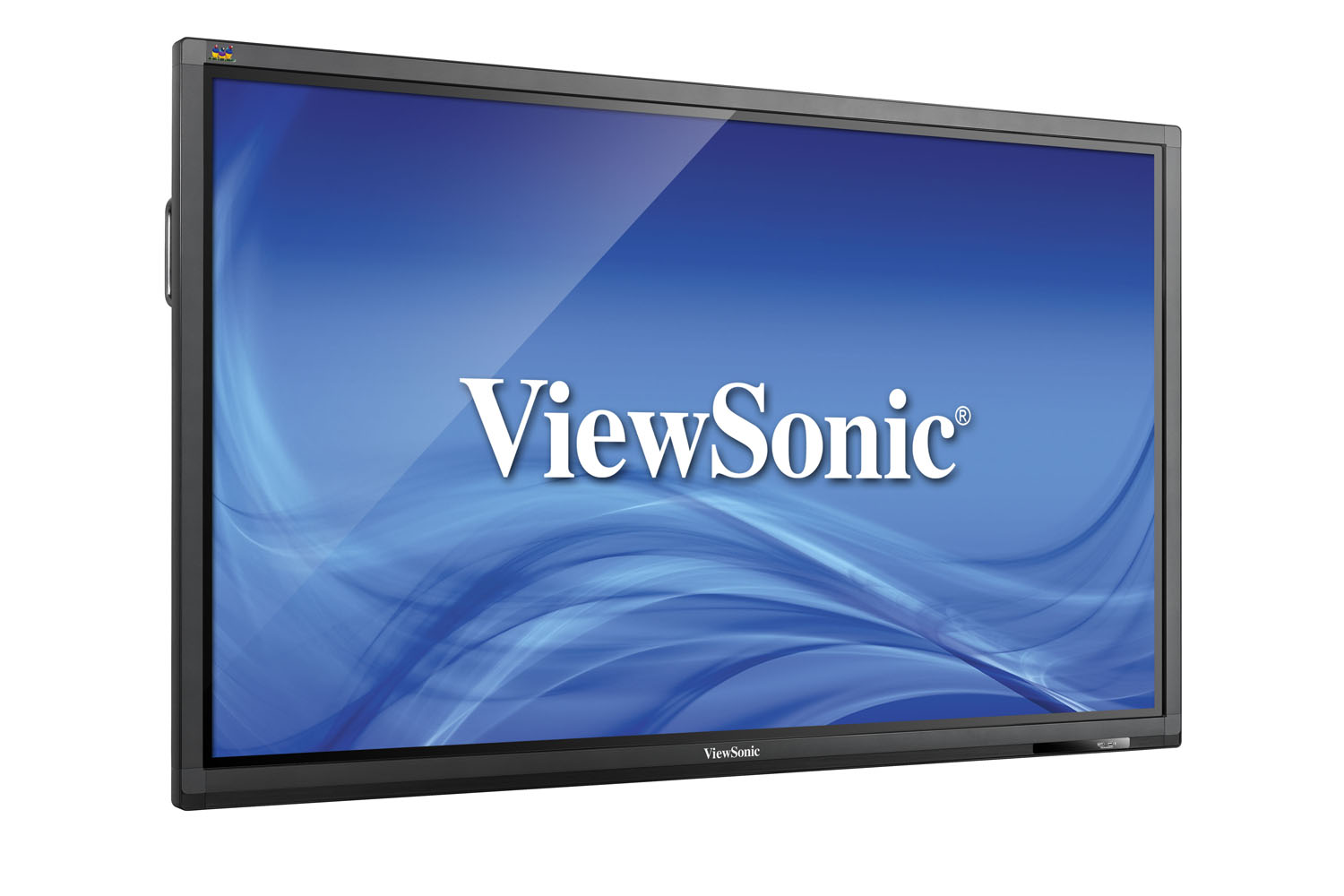

ViewSonic CDE7051-TL 70" Full HD touch interactive commercial display

표시

패널 크기:	69.5"
Type/Tech:	TFT LCD Module with LED Backlight
표시면적(mm):	1538.88(H) x 865.62(V) (69.5” diagonal)
가로 세로 비율:	16:9
기본 해상도:	1920 x 1080
Colors:	1.07 Billion
밝기:	350 nits (typ.)
대비 비율:	4000:1 Typ.
응답 시간:	6ms
보기 각도:	H = 176, V = 176 typ.
백라이트 라이프:	50,000 Hours Typ.
표면 처리:	AG coating (7H)
오리엔테이션:	Landscape

TOUCH

유형/기술: IR

터치 해상도: 32767 x 32767

터치 포인트: 6-point
INPUT

HDMI: x2

RGB / VGA: x2

오디오: x2 PC audio(3.5 mm), x1 Shared RCA audio (L+R)

CVBS: x1

YPbPr: x1

MIC(마이크): x1

RS232: x1

OPS: PC Slot (proprietary)
OUTPUT

CVBS: x1

SPDIF: x1
USB

A형: x1

B형: x2, for touch
스피커

15Wx2
COMPATIBILITY

RGB PC/HDMI PC: Refer to timing table

CVBS: 480i,

YPbPr: 480i, 480p,720p,1080i,1080p

HDMI: 480i, 480p,720p,1080i,1080p

CONTROLS

Physical- Top OSD:

PICTURE:POWER, INPUT, MENU,CH ^, CH v, VOL+, VOLPicture
Mode, Contrast,Brightness, Color, Tint, Sharpness, Color Temp., Noise
Reduction
SOUND:Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF MODE, AD Switch
TIME:Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer
LOCK:Lock System, Set Password, Block Program, Parental Guidance, Key Lock
SETUP:OSD Language, TT Language, Hearing Impaired, PVR File System, Record list,
Aspect Ratio, Blue Screen, Fist Time Installation, Reset, Software Update(USB)

소프트웨어 번들

ViewBoard 2.0
힘

전압: 100-240VAC +/- 10% 50/60Hz Wide Range

소비.: 250W (typ)
< 0.5 W ("Off")
ERGONOMICS

Wall Mount (VESA® ): 600 x 600
OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C

습도: 20% ~ 80% non-condensing
DIMENSIONS
(W X H X D)

물리적(인치/mm): 64.9x39.3x3.8 / 1649x999x97

포장(inch/mm): 70.3x44.9x 10.8 / 1785x1140x275
WEIGHT

순(lb/kg): 165.3 / 75

총중량(파운드/kg): 187.4 / 85
패키지 내용물

1. CDE7051-TL display 2. power cable 3. VGA cable 4. audio cable 5. USB cable 6. remote control with batteries 7. stylus (x3) 8. ViewSonic Wizard CD (with user guide)

유형/기술:	IR
터치 해상도:	32767 x 32767
터치 포인트:	6-point

HDMI:	x2
RGB / VGA:	x2
오디오:	x2 PC audio(3.5 mm), x1 Shared RCA audio (L+R)
CVBS:	x1
YPbPr:	x1
MIC(마이크):	x1
RS232:	x1
OPS:	PC Slot (proprietary)

RGB PC/HDMI PC:	Refer to timing table
CVBS:	480i,
YPbPr:	480i, 480p,720p,1080i,1080p
HDMI:	480i, 480p,720p,1080i,1080p

전압:	100-240VAC +/- 10% 50/60Hz Wide Range
소비.:	250W (typ) < 0.5 W ("Off")

Temperature (º C):	0°C to 40°C
습도:	20% ~ 80% non-condensing

물리적(인치/mm):	64.9x39.3x3.8 / 1649x999x97
포장(inch/mm):	70.3x44.9x 10.8 / 1785x1140x275

CVBS:	x1
SPDIF:	x1

A형:	x1
B형:	x2, for touch

순(lb/kg):	165.3 / 75
총중량(파운드/kg):	187.4 / 85
