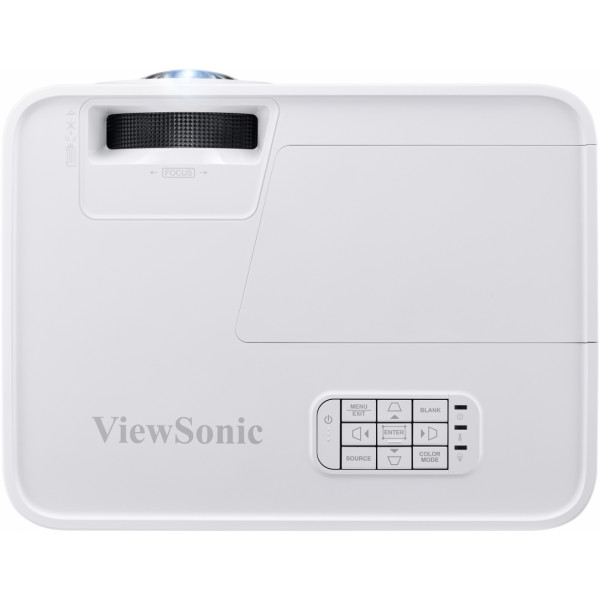

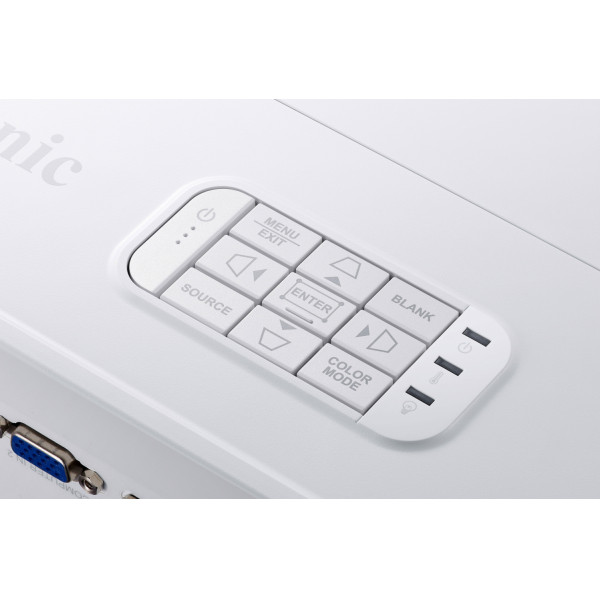

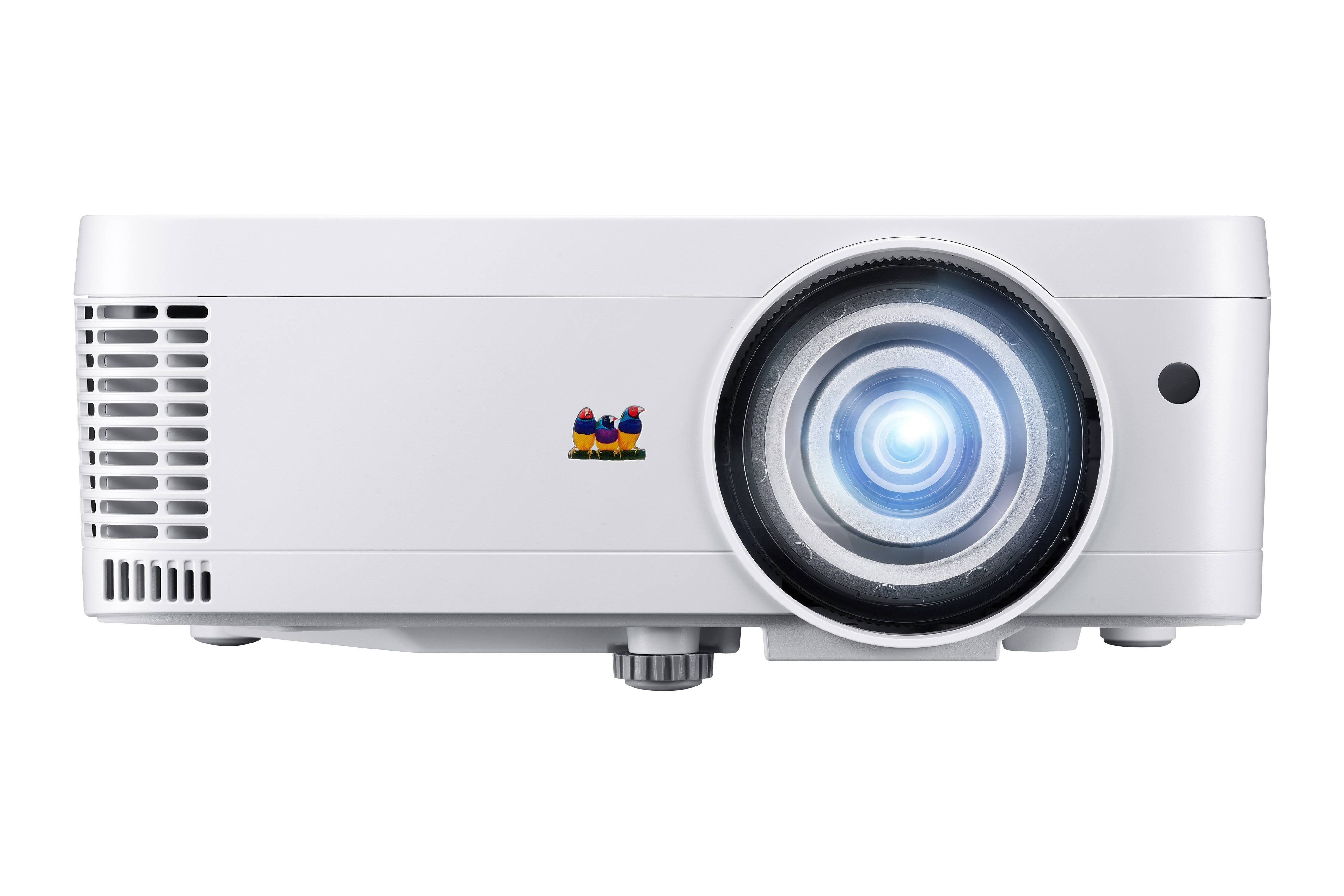

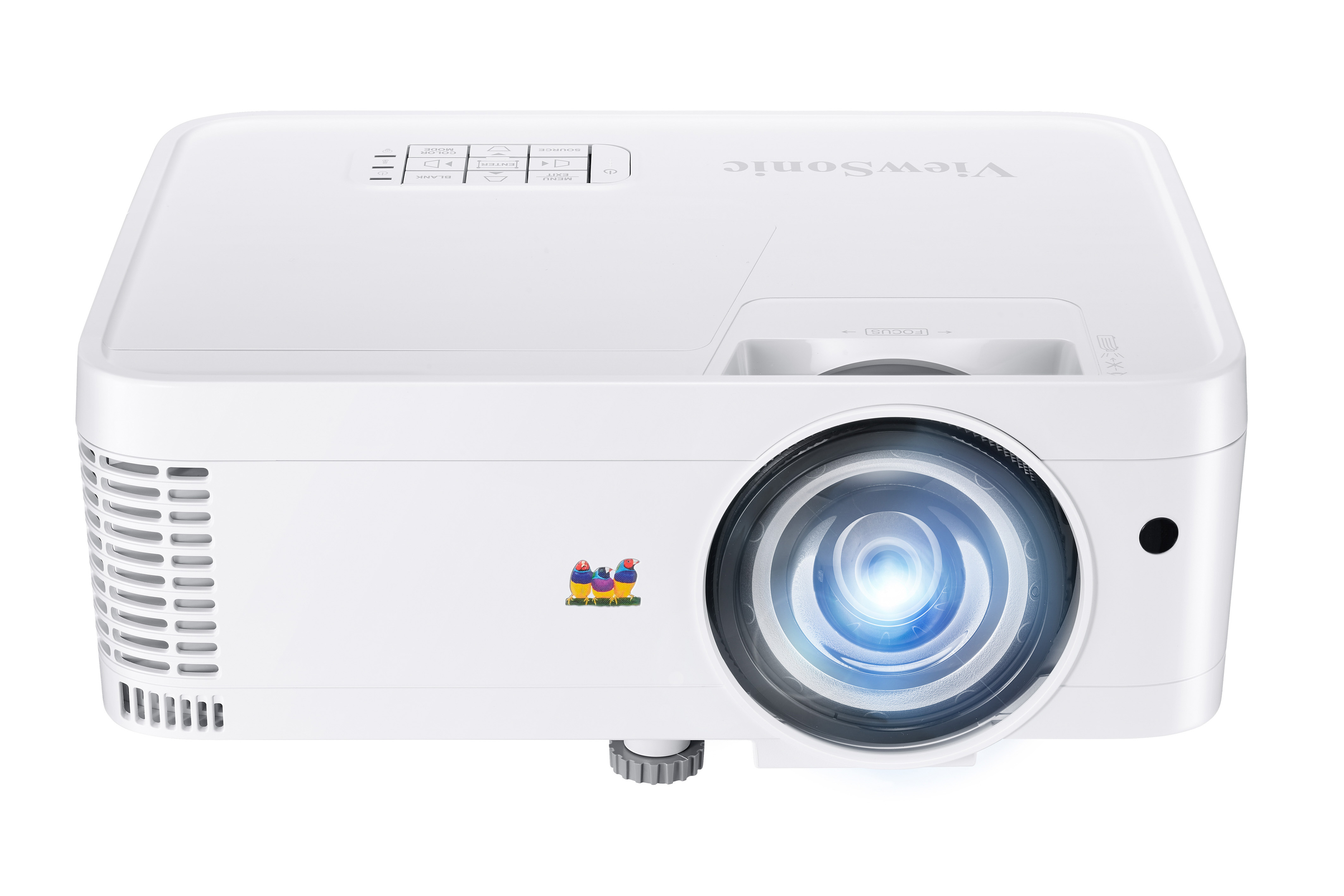

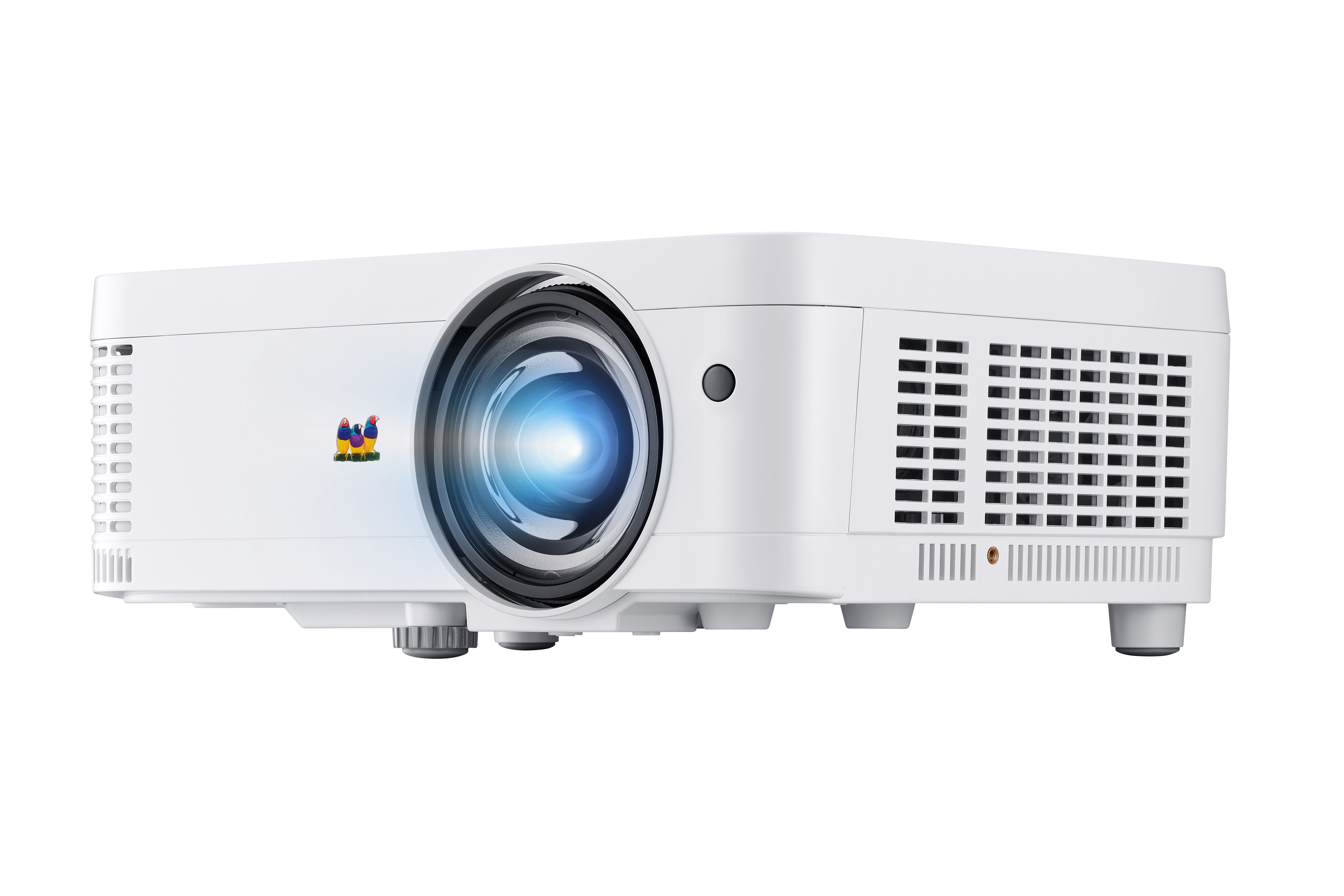

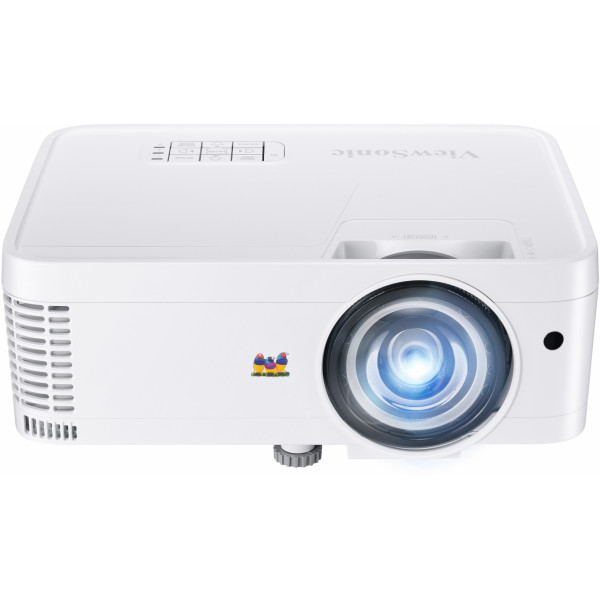

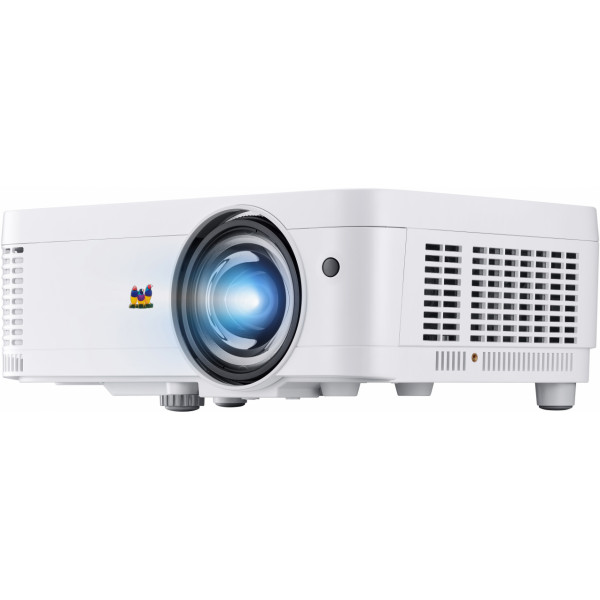

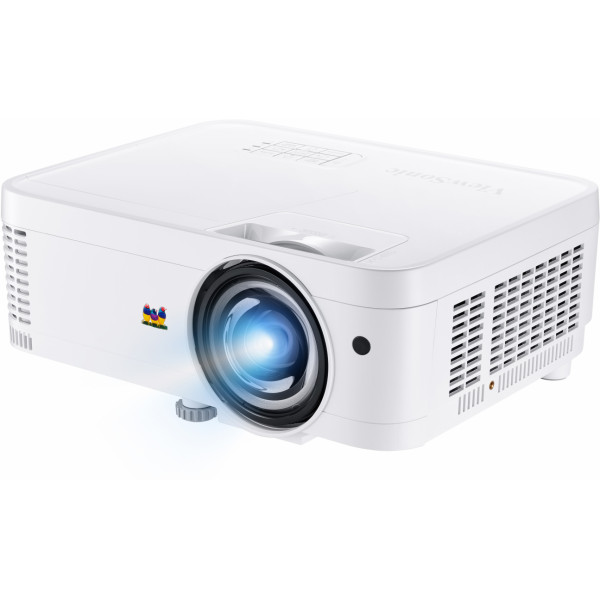

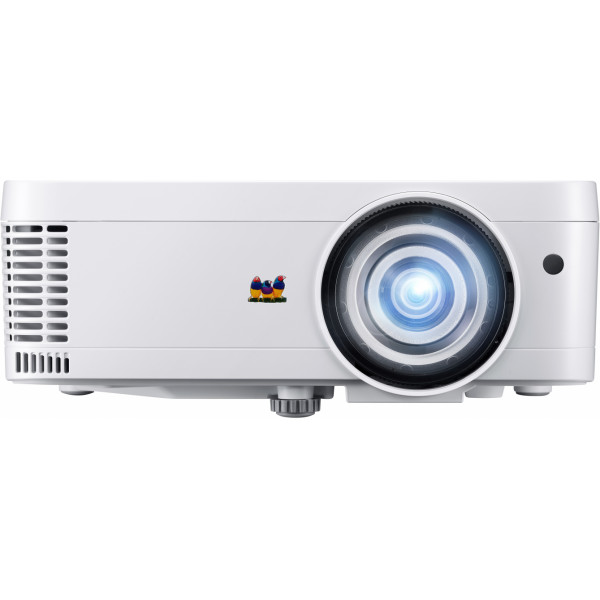

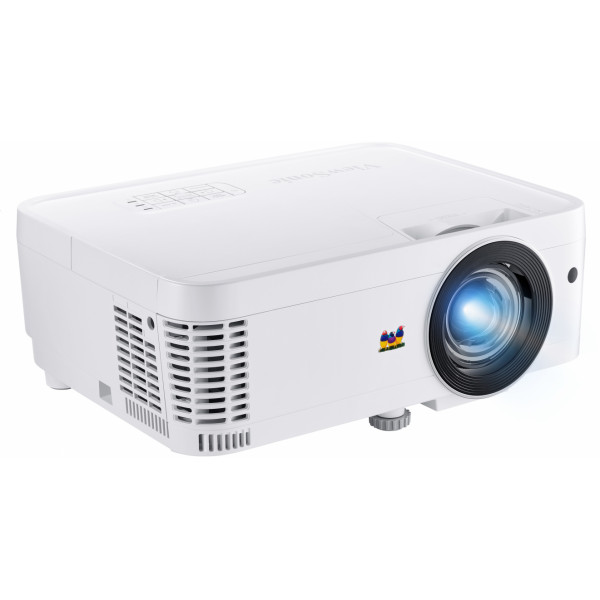

PS600X
3500 ANSI Lumens XGA Education Projector
- 0.61 short throw ratio
- 15,000 hour lamp life
- LAN control
- HV keystone and 4 corner adjustment
- Optional PJ-vTouch-10S interactive module
스펙
- SPECIFICATIONProjection system: 0.55" XGA
기본 해상도: 1024x768
DC type: DC3
밝기: 3500 ANSI Lumens
Contrast Ratio with SuperEco mode: 22000:1
Display Color: 1.07 Billion Colors
광원: Lamp
Light source life (Nor/SuperEco): 5000/15000
램프 와트: 190W
렌즈: F=2.6, f=6.9mm
투영 간격띄우기: 130%+/-5%
던지기 비율: 0.61
Image size: 60" - 300"
투척 거리: 0.74m-2.23m (100" @ 1.24m)
키스톤: HV
광학 줌: Fixed
Audible Noise (Eco): 27dB
해상도 지원: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
비디오 호환성: NTSC, PAL, SECAM
수평 주파수: 15K~102KHz

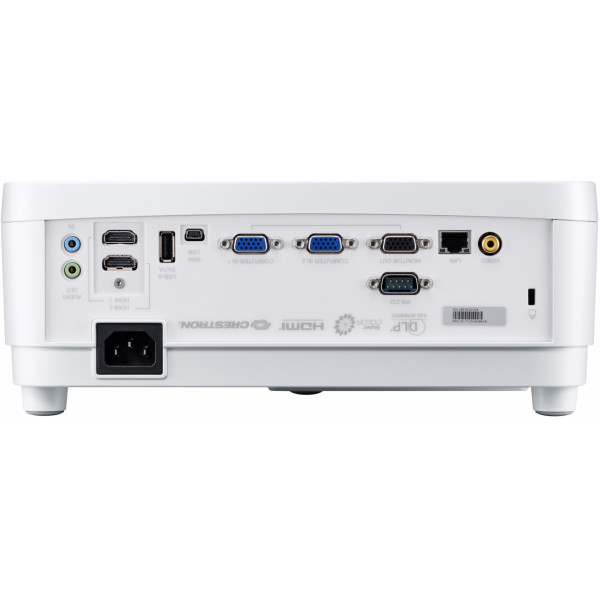

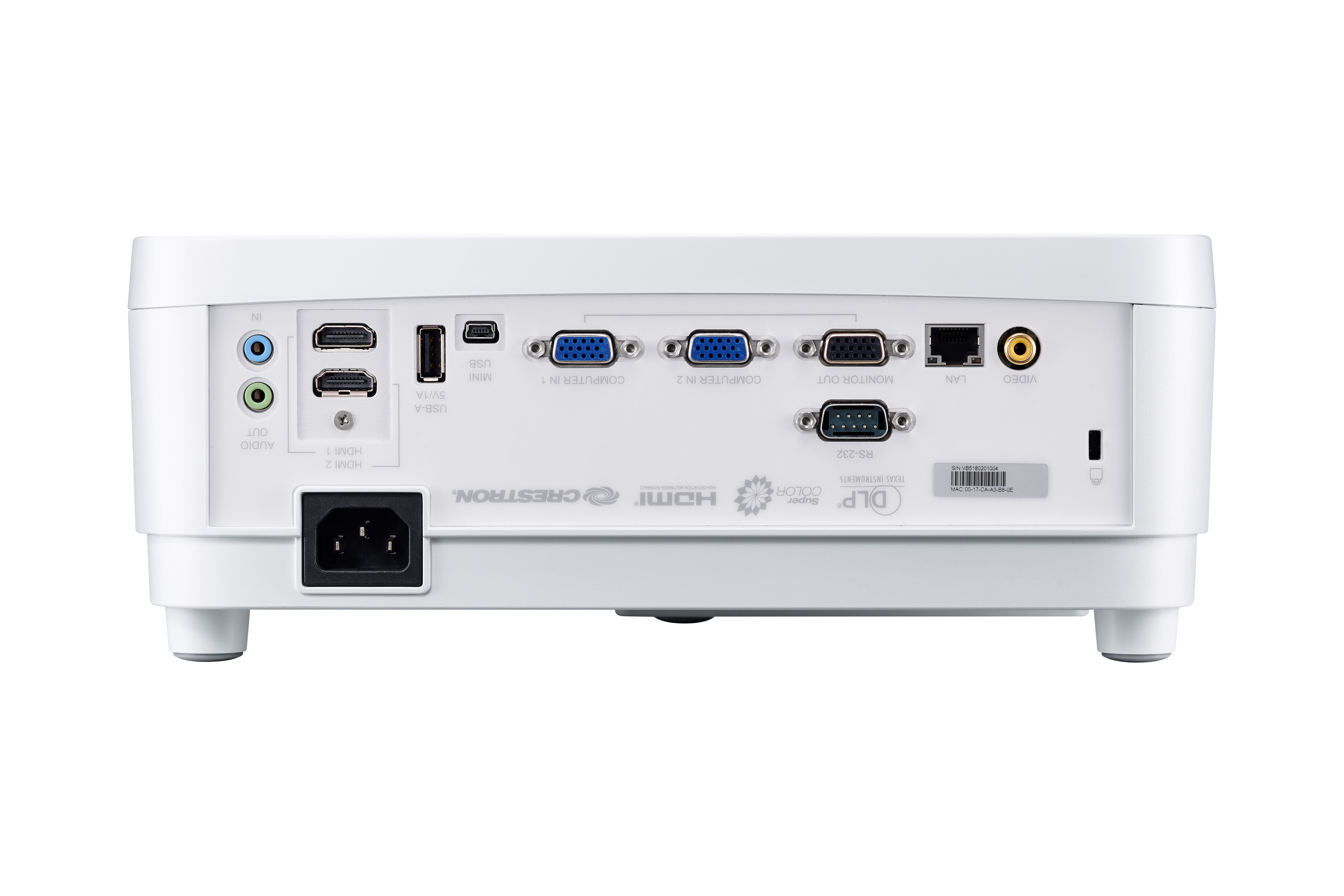

수직 검색 속도: 23~120Hz - 입력Computer in (D-SUB 15 pin): 2
컴포지트: 1
오디오 입력(3.5mm): 1
HDMI/HDCP: 2
(HDMI 1.4/ HDCP 1.4) - 산출량Monitor out (D-SUB 15 pin): 1
오디오 출력(3.5mm): 1
스피커: 10W
USB type A (Power): 1 (5V/1A)
- 통제RS232: 1
RJ45: 1
USB type mini B (Services): 1 - 다른이들전원 공급 전압: 100-240V+/- 10%, 50/60Hz AC
전력 소비: Normal: 260W
Standby: <0.5W
작동 온도: 0~40℃
Carton: Brown
순 중량: 2.6kg
Dimensions (WxDxH) w/adjustment foot: 292x236x115mm
Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese - Standard Accessory전원 코드: 1
VGA cable: 1
원격 제어: 1 (w/Laser pointer)
QSG: 1
렌즈 커버: 1 - 옵션 액세서리램프/광원: RLC-108
