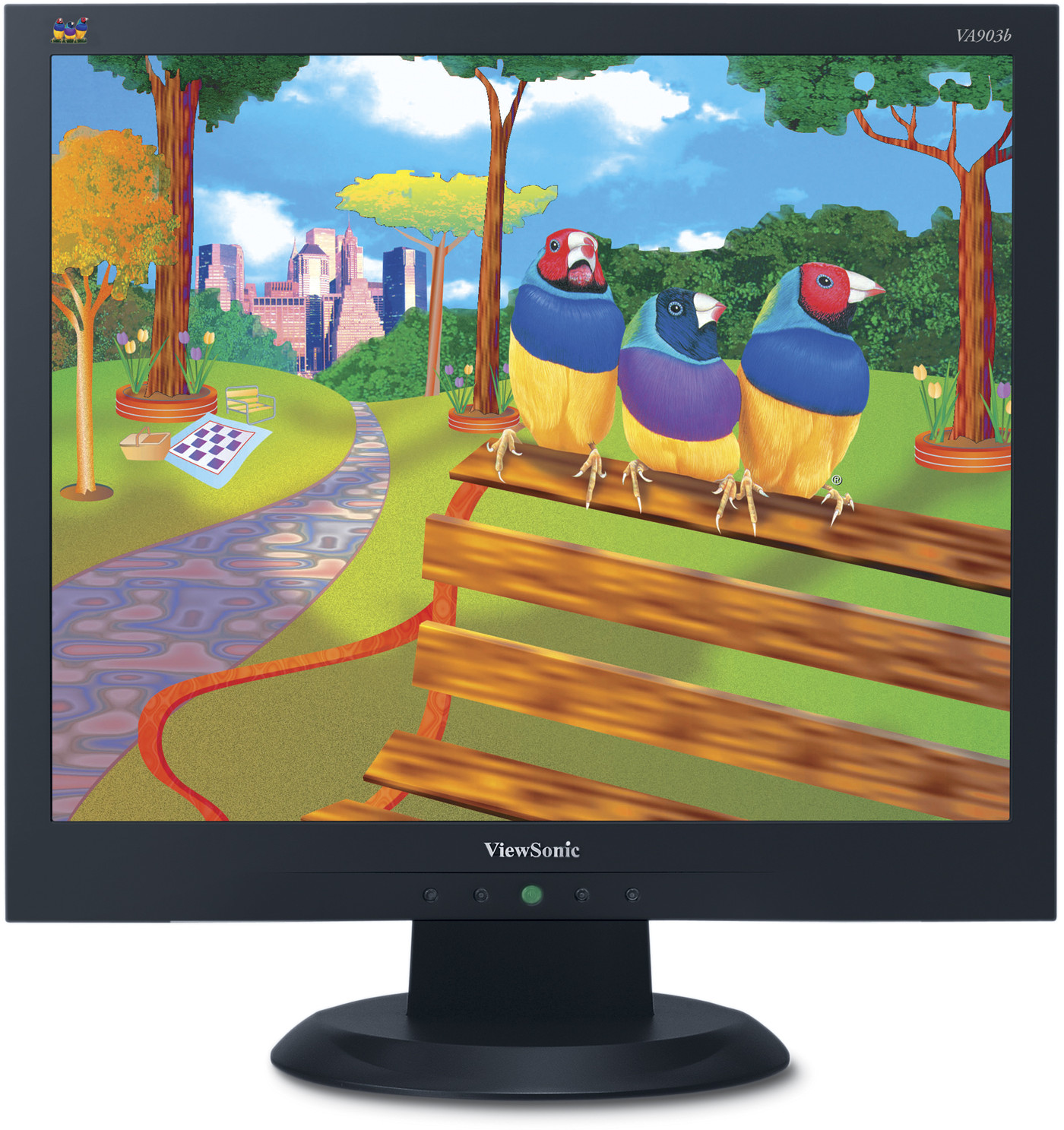

ViewSonic VA903b 19” VA SERIES LCD MONITOR

COLORS

Black

LCD

Tipo:	19” TN colour TFT active matrix SXGA LCD
Contrasto:	700:1 (typ.)
Angolo visuale:	150° horizontal, 135° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Luminosità:	300 cd/m² (typ.)
Display Area:	37.6cm horizontal x 30.1cm vertical; 48.3cm diagonal
Optimum Resolution:	1280 x 1024@60Hz
Tempo di risposta:	5ms (off-on-off) (typ.)
Tecnologia:	Long life, 50000 hrs. (typ.)
Panel Surface:	Anti-glare (3H)
Pixel Pitch:	0.294mm
Colour Support:	16.7M colours supported (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: VGA up to 1280 x 1024 non-interlaced (@60Hz preferred)

Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (@60Hz preferred)
DIMENSIONS

W x H x D mm: 416 x 428 x 210 (with stand)
CONTENUTO DELLA CONFEZIONE

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
WARRANTY

Three-year limited warranty on parts, labor and backlight
CONNECTOR

Analogue: 15-pin mini D-Sub (attached cable)

Alimentazione: 3-pin AC plug (CEE22)
POWER

Voltaggio: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumo: <35 watt (max.), <1 watt in power save mode

CONTROLS

Basic:

Power, menu [1], up, down, select [2]

OSD:

Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number, website), manual image adjust (H/V position, H size, fine tune, sharpness), setup
menu (language [English, Finnish, French German, Italian, Japanese, Spanish Simplified Chinese, Traditional Chinese], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperatura: 0°C – 40°C

Umiditá: 10% – 90% (non-condensing)
WEIGHT

Prodotto senza imballaggio: 4.6kg (with stand)

Prodotto con imballaggio: 5.8kg
VIDEO INPUT

Frequency: Fh: 30 – 82kHz,
Fv: 50 – 85Hz

Sync: H/V separated (TTL)

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm
ERGONOMICS

Inclinazione: Down 5°, Up 20°
