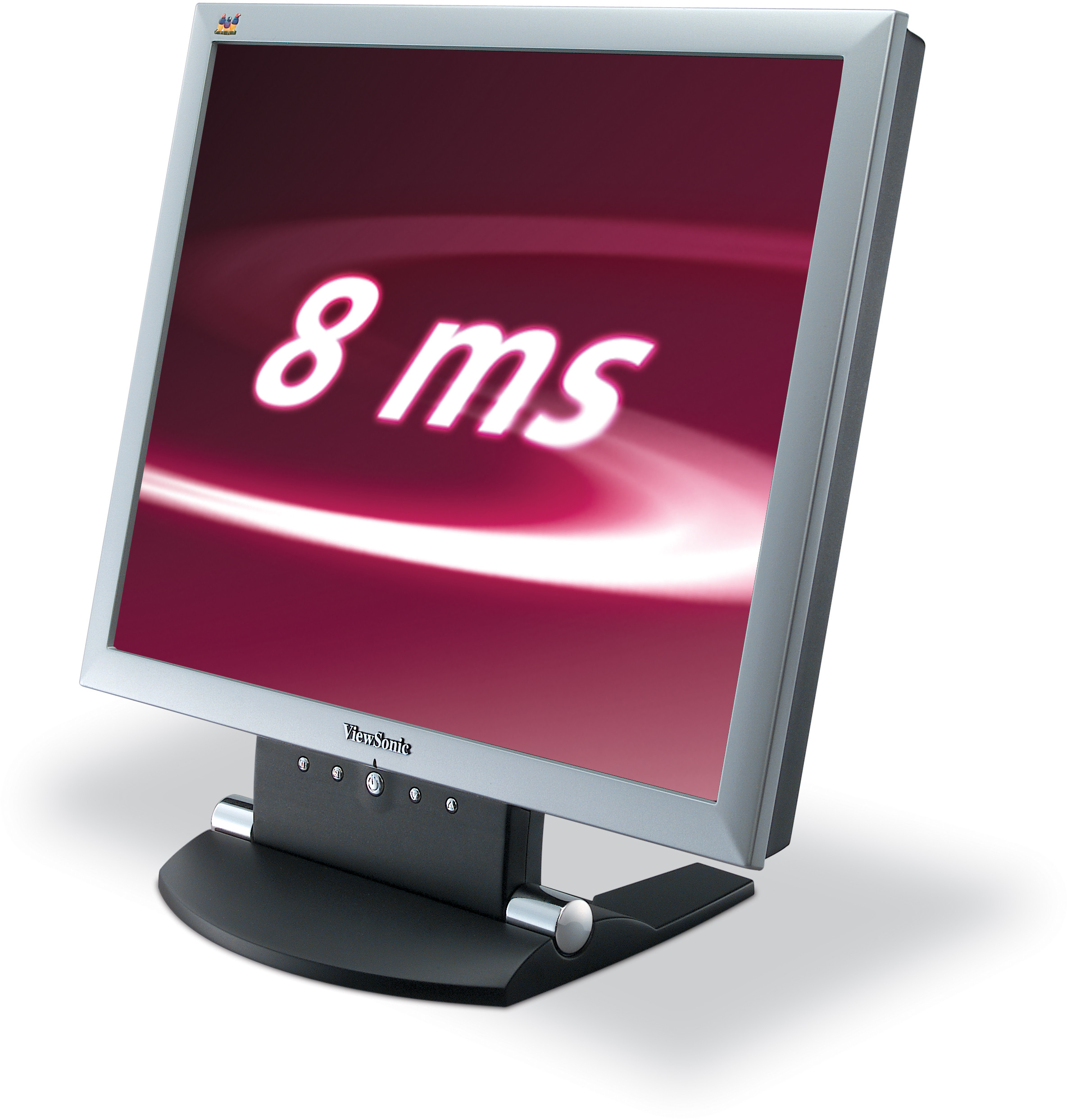

ViewSonic VA902 48 cm / 19" A series LCD Display

LCD

Tipo:	48 cm / 19" TN-Colour TFT Active Matrix SXGA LCD
Contrasto:	600:1 (typ.)
Angolo visuale:	140° horizontal, 130° vertical @ 10:1 160° horizontal, 150° vertical @ 5:1
Luminosità:	250cd/m² (typ.)
Display Area:	376mm horizontal x 301mm vertical; 48.3cm diagonal
Optimum Resolution:	1280 x 1024
Tempo di risposta:	8ms (typ.)
Panel Surface:	Anti-glare 3H
Pixel Pitch:	0.294mm
Colour Support:	16.2M colours (6-bit + 2-bit FRC)
Pixel Clock:	135MHz

COMPATIBILITY

PC: 15-pin mini D-Sub (detachable cable)

Mac®: Power Mac™ G3/G4/G5 1152 x 870 (@ max. 75Hz)
DIMENSIONS

Dimensioni unità senza supporto (mm): 414 x 407 x 219
CONTENUTO DELLA CONFEZIONE

LCD display, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD
INPUT

Sync: H/V separated (TTL)

Frequency: Fh: 30-82kHz, Fv: 50-85Hz

Video: RGB analogue (75 ohms, 0.7 Vp-p)
CONNECTOR

Analogue: 15-pin mini D-Sub (attached cable)

Alimentazione: 3-pin AC plug, (CEE22)
POWER

Voltaggio: AC 100–240V, 50–60Hz (auto switch), internal power supply

Consumo: 35W (typ.); ≤ 1 watt in power save mode

CONTROLS

OSD:

Auto image adjust, brightness, contrast, ViewMatch® colour adjust
[sRGB, 9300K, 6500K (default), 5400K, user colour (R,G,B)],
information [resolution, H. frequency, V. frequency, pixel clock,
model number, serial number], manual image adjust [H. size,
H./V. position, fine tune, sharpness, scaling], setup menu
[language (English, French, German, Italian, Spanish, Finnish,
Japanese, Traditional Chinese, Simplified Chinese),
resolution notice, OSD position, OSD timeout, OSD background],
memory recall, OSD lock, power lock

Physical:

Power on/off, menu, down, up, select

OPERATING CONDITIONS

Temperatura: 0°C to 40°C

Umiditá: 10% to 90% (non-condensation)
WEIGHT

Prodotto senza imballaggio: 5.4kg
POWER MANAGEMENT

Meets TCO’03, ENERGY and Energy Star standards
ERGONOMICS

Down 5°, Up 20°

PC:	15-pin mini D-Sub (detachable cable)
Mac®:	Power Mac™ G3/G4/G5 1152 x 870 (@ max. 75Hz)

Sync:	H/V separated (TTL)
Frequency:	Fh: 30-82kHz, Fv: 50-85Hz
Video:	RGB analogue (75 ohms, 0.7 Vp-p)

Analogue:	15-pin mini D-Sub (attached cable)
Alimentazione:	3-pin AC plug, (CEE22)

Voltaggio:	AC 100–240V, 50–60Hz (auto switch), internal power supply
Consumo:	35W (typ.); ≤ 1 watt in power save mode

Temperatura:	0°C to 40°C
Umiditá:	10% to 90% (non-condensation)
