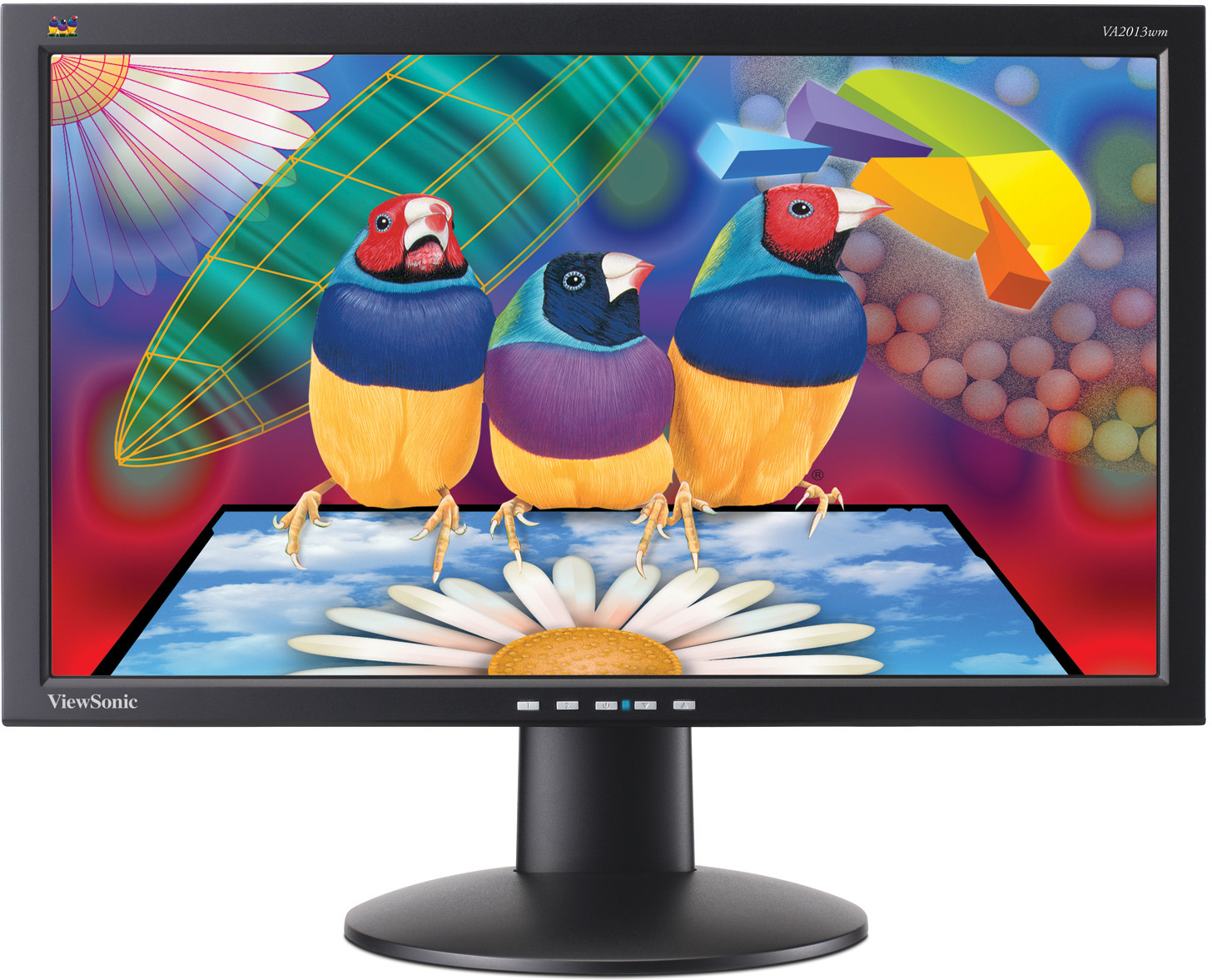

ViewSonic VA2013wm 51 cm / 20" Widescreen LCD WITH 20,000:1 DYNAMIC CONTRAST RATIO

LCD

Contrasto:	1000:1 (typ.) / 20000:1 dynamic
Angolo visuale:	170o (H), 160o (V) at 10:1 c/r, 170o (H) 170o (V) at 5:1 c/r
Luminosità:	300 cd/m² (typ.)
Display Area:	443 x 249 (mm)
Optimum Resolution:	1600×900
Tempo di risposta:	5ms (typ.)
Tecnologia:	50,000 hrs (typ.)
Panel Surface:	Anti-Glare, Hard coating (3H)
Pixel Pitch:	0.276mm(H) x 0.276mm(V)
Colour Support:	16.7 M (6-bits + Hi FRC)
Size:	50.80cm (20") wide Color TFT Active Matrix LCD 16:9 aspect ratio

COMPATIBILITY

PC: VGA up to 1600×900 Non Interlaced

Mac®: Power Mac, up to 1600×900
DIMENSIONS

Physical With Stand: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)

Physical Without Stand: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)
CONTENUTO DELLA CONFEZIONE

LCD display, VGA cable, Power cable, Quick Start Guide, ViewSonic Wizard CD
AUDIO

Speaker: W×2
INPUT

Sync: Separate Sync

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: Fh: 24-82kHz, Fv: 50-75Hz
CONNECTOR

Analogue: 1×15 pin mini D-sub

Alimentazione: Built-in power Adapter, 3-Pin plug

Audio Input: 1×3.5 mm Audio in
POWER

Voltaggio: AC 100-240V (Universal); 50/60Hz(Switch)

Consumo: 46 (typ)

Eco Mode: optimize 30W (typ.) / conserve 23W (typ.)

Save mode: ≦1W

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
On View (PC mode):	Auto Image Adjust Contrast/Brightness Audio adjust: Volume mute Color Adjust: sRGB, 9300K, 7500K, 6500K, 5000K User Color: [R, G, B] Information Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, setup menu, language select, resolution notice, OSD Position, OSD Time Out, OSD Background, memory recall.

OPERATING CONDITIONS

Temperatura: 41°F - 95°F (5°C - 35°C)

Umiditá: 20 - 80% (Non condensed)
WEIGHT

Prodotto senza imballaggio: 4.12kg (9.08lbs)

Prodotto con imballaggio: 5.21kg (11.49lbs)
POWER MANAGEMENT

TCO'03, ENERGY STAR
ERGONOMICS

20° ~ -5°
VESA MOUNT COMPLIANT

VESA 100mm x 100mm

PC:	VGA up to 1600×900 Non Interlaced
Mac®:	Power Mac, up to 1600×900

Physical With Stand:	481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)
Physical Without Stand:	481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)

Analogue:	1×15 pin mini D-sub
Alimentazione:	Built-in power Adapter, 3-Pin plug
Audio Input:	1×3.5 mm Audio in

Temperatura:	41°F - 95°F (5°C - 35°C)
Umiditá:	20 - 80% (Non condensed)

Prodotto senza imballaggio:	4.12kg (9.08lbs)
Prodotto con imballaggio:	5.21kg (11.49lbs)
