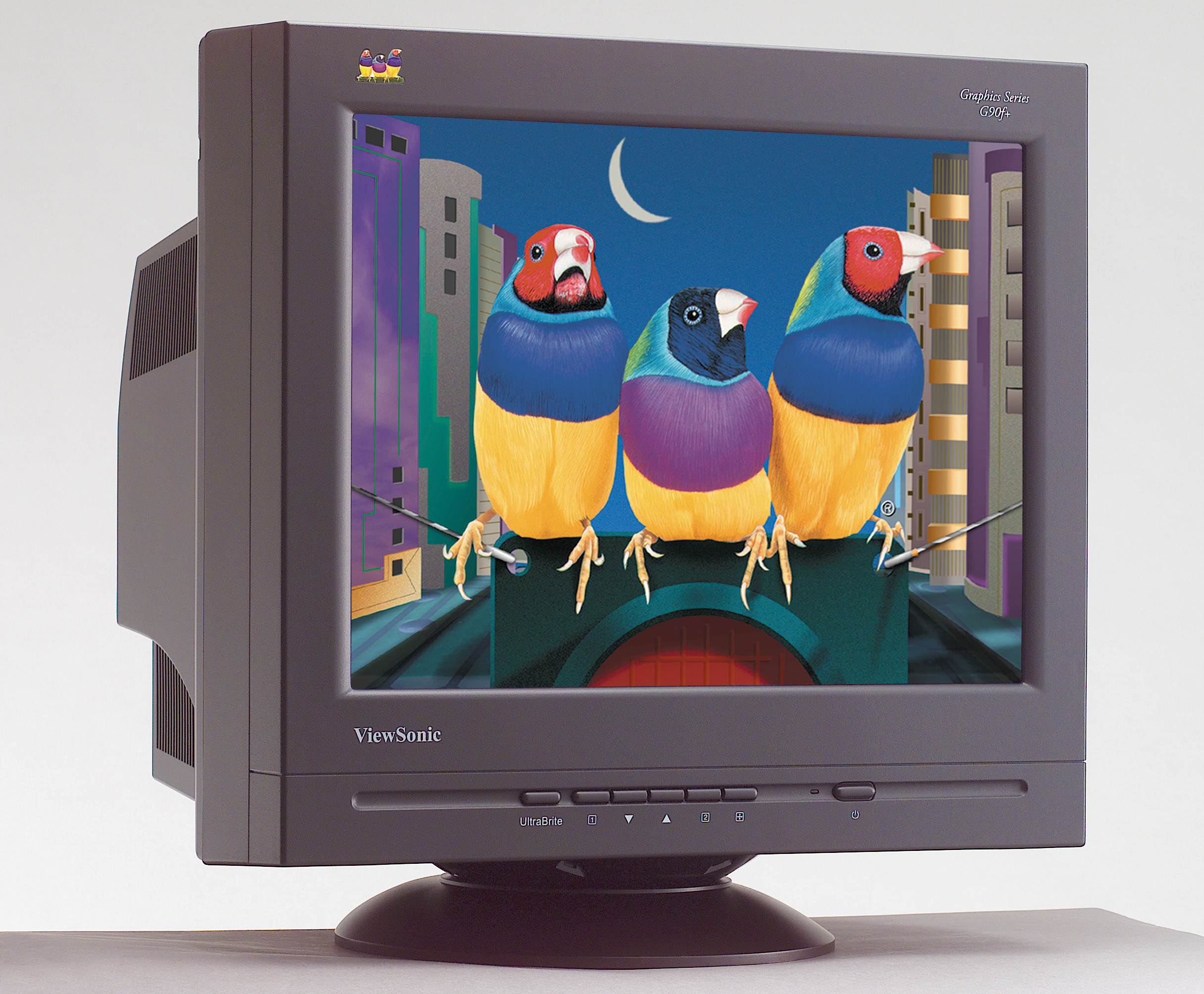

ViewSonic G90FB 19" PROFESSIONAL COLOUR MONITOR WITH PERFECTFLAT® TECHNOLOGY

COLORS

Black
COMPATIBILITY

PC: IBM compatible from VGA up to 2048 x 1536

Mac®: PowerMac™, G3/G4 from 640 x 480 up to 1152 x 864
DIMENSIONS

Prodotto senza imballaggio (LxPxH): 448mm (W) x 465mm (H) x 459mm (D)

17.6" (W) x 18.3" (H) x 18.05" (D)
INPUT SIGNAL

Frequency: Fh: 30-97kHz, Fv: 50-180Hz

Video: RGB analogue (75 ohms, 0.70 Vp-p,)

Sync: H/V separate (TTL), Composite
CONNECTOR

Alimentazione: 3-pin plug (IEC320)

Signal: 15-pin mini D-sub (high density)
POWER

Voltaggio: AC 90-240V (auto switch) 50-60(+/-2)Hz

Consumo: 90W (typ), 110W (max)

CONTROLS

Basic:	Power on/off, 1, Down, Up, 2, UltraBrite, Auto sizing
OnView®:	Contrast, Brightness, H. Size/Position, V. Size/ Position, Pincushion, Pinbalance, Trapezoid, Parallelogram, Top/Bottom hook, Tilt, H/VMoiré, Degauss, Colour Temperature (9300, 6500, 5000, User), OSD Function, Language, ViewMeter, Memory Recall, Zoom.

CRT

Tipo:	48cm / 19" (18.0" viewable) 90° deflection, PerfectFlat
Dot Pitch:	0.25mm diagonal, 0.21mm horizontal, 0.14mm vertical
Phosphor:	RGB medium/short persistance B22
Glass Surface:	Tint (TM=52.6%), ARAG® screen treatment

MISCONVERGENCE

0.25mm (max at centre), 0.35mm (max at corner)
DISPLAY AREA

Factory Setting: 352mm (H) x 264mm (V)

Maximum Scan: 360mm (H) x 270mm (V)
OPERATING CONDITIONS

Umiditá: 5% - 95% (non-condensation)

Temperatura: 0°C to 40°C (32°F to 104°F )

PC:	IBM compatible from VGA up to 2048 x 1536
Mac®:	PowerMac™, G3/G4 from 640 x 480 up to 1152 x 864

Alimentazione:	3-pin plug (IEC320)
Signal:	15-pin mini D-sub (high density)

Voltaggio:	AC 90-240V (auto switch) 50-60(+/-2)Hz
Consumo:	90W (typ), 110W (max)

Factory Setting:	352mm (H) x 264mm (V)
Maximum Scan:	360mm (H) x 270mm (V)

Umiditá:	5% - 95% (non-condensation)
Temperatura:	0°C to 40°C (32°F to 104°F )
