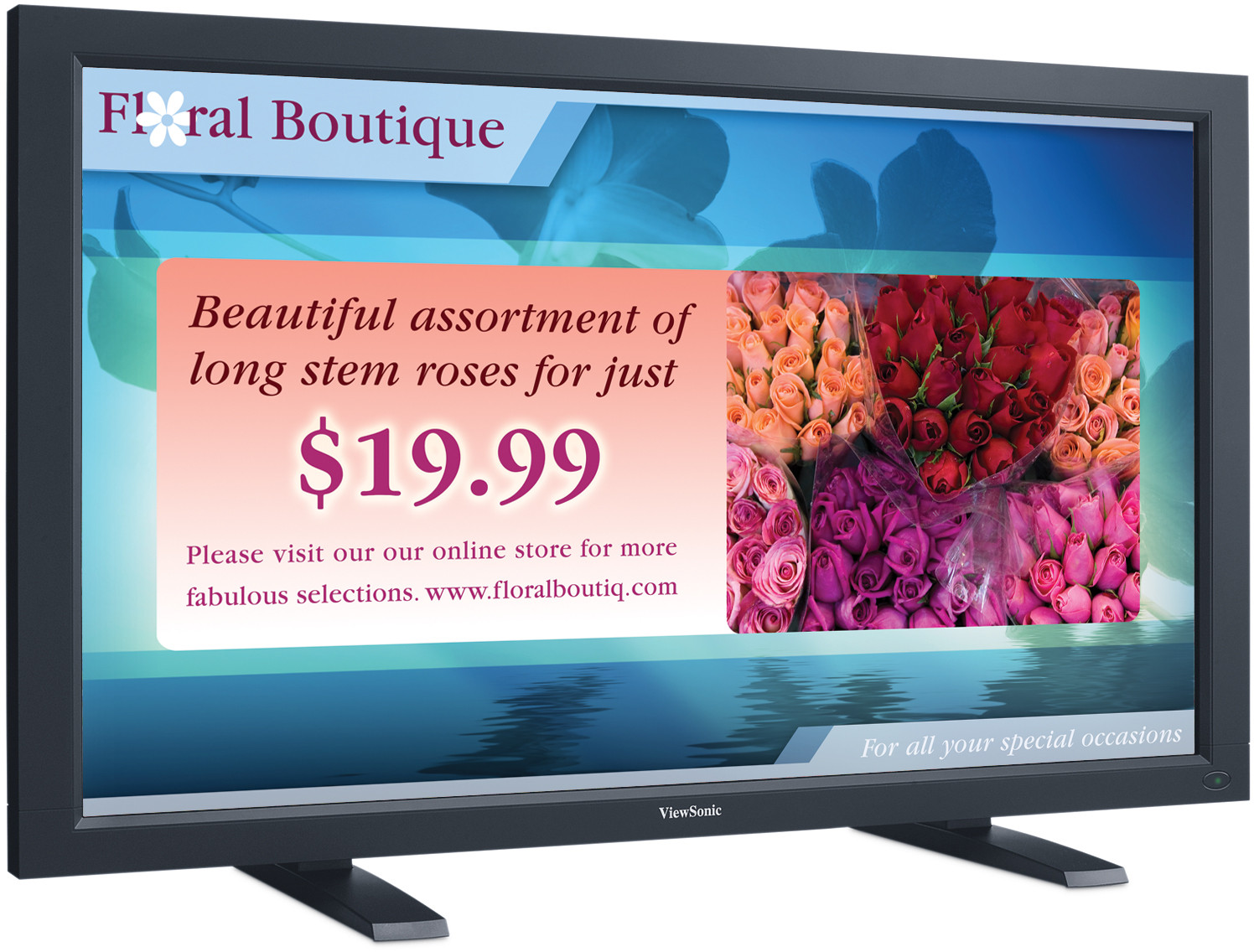

ViewSonic CD4220 High impact digital signage

COLORS

Black

LCD

Tipo:	107 cm / 42" wide colour TFT active matrix
Contrasto:	1500:1 (typ.)
Angolo visuale:	178° horizontal, 178° vertical (at 10:1)
Luminosità:	500cd/m²
Display Area:	93.0cm horizontal x 52.3cm vertikal, 106.7cm diagonal
Tempo di risposta:	8 ms (Grey-to-Grey)
Rapporto d'aspetto:	16:9
Risoluzione:	1366 x 768
Panel Surface:	Anti-glare, hard coating (2H)

DIMENSIONS

Prodotto senza imballaggio (LxPxH): 1022 x 612 x 127 mm (without stand)
CONTENUTO DELLA CONFEZIONE

LCD display, 1.8m power cables (Europe [Schuko]/UK), remote control, batteries, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
AUDIO

Speakers: 2 x 7 watt with SRS TruSurround¹

CONNECTOR

Audio Out:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Composite Video Input:	1 x RCA (CVBS) 1 x BNC (CVBS)
Component Video Input:	3 x BNC (YPbPr/YCbCr)
Audio Input:	1 x 3.5mm mini stereo 2 x RCA (left/right)
Analogue-In:	1 x 15-pin mini D-Sub (detachable cable)
Analogue-Out:	1 x 15-pin mini D-Sub (detachable cable)
Composite Video Output:	1 x BNC (CVBS)
Alimentazione:	1 x 3-pin plug
Control/Net-Out:	1 x 9-pin mini D-sub RS-232
Control/Net-In:	1 x 9-pin mini D-sub RS-232
Digital-In:	1 x HDMI (with HDCP)

POWER

Voltaggio: AC 100–240V (universal), 50/60Hz

Consumo: <246 watt, <5 watt in power save mode

CONTROLS

Basic:

Power, menu, exit, source, up/down, volume, mute, main power switch

OSD:

Picture Menu (brightness, contrast, sharpness, black level, NR, tint, colour, colour temperature, colour User-RGB, picture reset),
Screen Menu (H/V position, H size, fine tune, zoom [H&V zoom, H zoom, V zoom, H/V zoom position], screen reset),
Audio Menu (balance, treble, bass), PIP Menu (PIP size, PIP audio source, PIP reset),
Configuration Menu (auto setup, auto adjust, power save, OSD language, screen saver, colour TV system, OSD turn off, information OSD, off timer, OSD H/V position, display information, config. reset),
Advanced Menu (input resolution, black level expansion, Gamma, scan mode, scan conversion, film mode, remote control, display ID, tiling [H/V monitors, position, frame compensation, enable], power on delay, date/time, auto on/off scheduler [day, hour, minute, input], monitor ID, DDC/CI, sync type, advanced reset)

OPERATING CONDITIONS

Temperatura: 0°C–40°C landscape mode, 5°C–35°C portrait mode

Umiditá: 20%–80% (non-condensing)
WEIGHT

Prodotto senza imballaggio: 29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)

Prodotto con imballaggio: 34.7kg

VIDEO INPUT

Frequency:	Fh: 15.6kHz, 15.7kHz, 31-91kHz, Fv: 50-75Hz
Sync:	H/V separate (TTL), composite, sync on green
Analogue:	RGB analogue (0.7/1.0 Vp-p, 75 ohm), PAL, SECAM, NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
Digital:	HDMI (HDCP enabled; TMDS, 100 ohm)

VESA MOUNT COMPLIANT

VESA FDMI 400mm x 200mm, M6 screws

Voltaggio:	AC 100–240V (universal), 50/60Hz
Consumo:	<246 watt, <5 watt in power save mode

Temperatura:	0°C–40°C landscape mode, 5°C–35°C portrait mode
Umiditá:	20%–80% (non-condensing)

Prodotto senza imballaggio:	29.9kg (w/o stand, w/o speakers), 31.7kg (w stand, w/o speakers)
Prodotto con imballaggio:	34.7kg
