Key Features
  • 4K UHD resolution with Mini LED delivers ultra-fine detail, vivid color, and deep contrast for premium visual impact
  • Advanced COB technology ensures enhanced durability with water, dust, and impact resistance—ideal for high-traffic professional spaces
  • All-in-One integration simplifies installation by combining power, control, image stitching, and display
  • Energy-efficient design with common cathode LEDs and smart ICs reduces power consumption and supports sustainable operation
  • Smart collaboration tools include PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare and AirSync

LDP163-091C
Product Description
The ViewSonic LDP163-091C 163” 4K UHD All-in-One Direct View LED Display is a premium large-format display engineered for high-impact visual experiences in corporate boardrooms, auditoriums, lobbies, and control centers. Featuring stunning native 4K UHD resolution (3840 x 2160) on a massive 163-inch seamless display, it delivers ultra-sharp visuals, vibrant colors, and exceptional clarity for presentations, branding, and digital signage. Advanced Chip-on-Board (COB) technology enhances durability while providing superior contrast and tighter pixel pitch for incredibly detailed imagery. Designed as a true all-in-one solution, it integrates the display, power supply, controller, and image stitching system into a single package for streamlined installation and operation. With 600 nits brightness, 10,000:1 contrast ratio, dual 30W speakers, and front-serviceable LED modules, the LDP163-091C combines premium performance with easy maintenance—making it ideal for professional environments demanding both visual excellence and reliability.

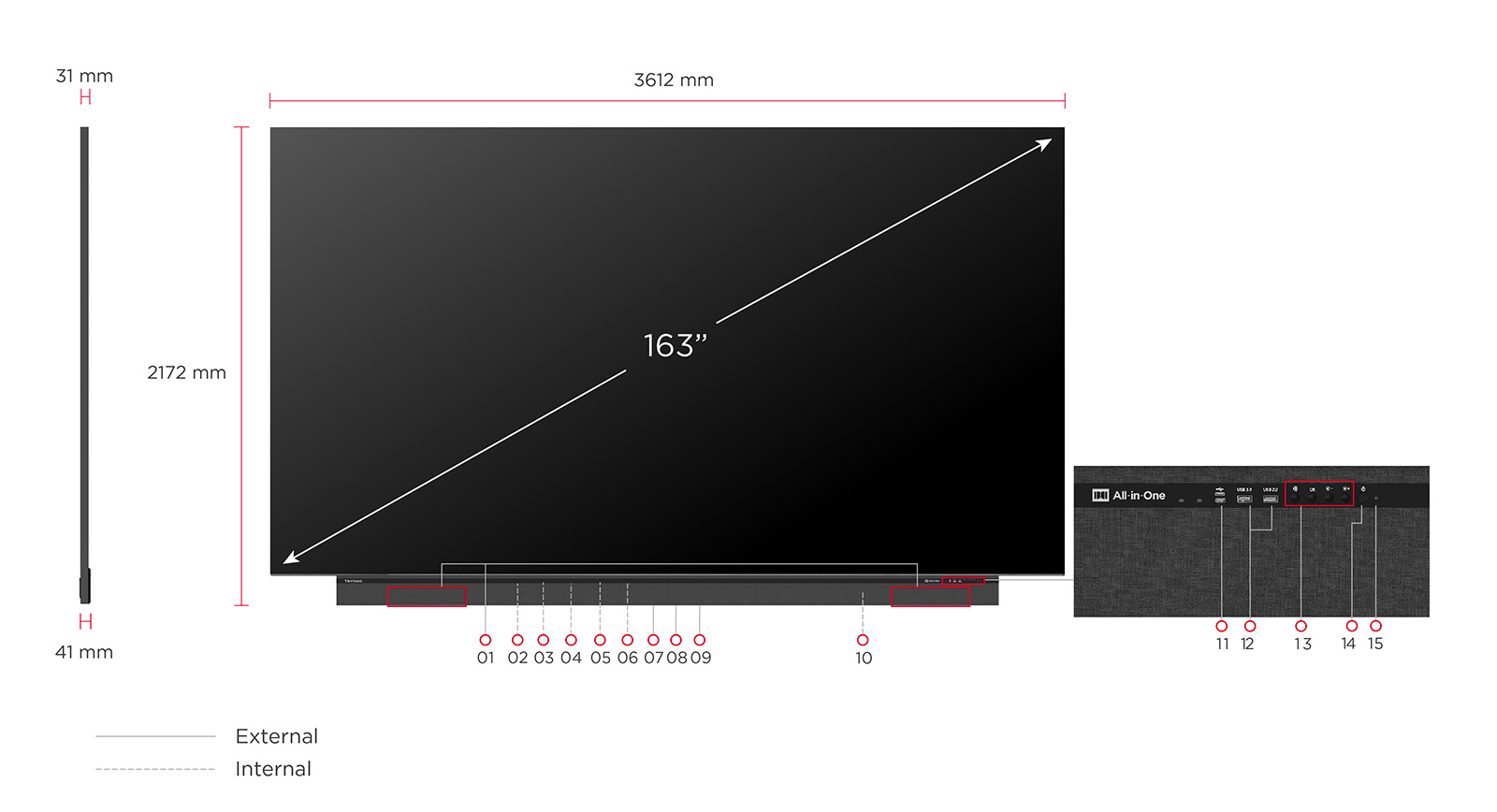

  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver
  1. Speakers
  2. HDMI 2.0 x3
  3. RJ45 (Internet, Control) x2
  4. Audio Out x1
  5. IR Out x1
  6. USB-A (Power) x1
  7. HDMI 2.0 x1
  8. RS232 x1
  9. Audio Out x1
  10. Wireless/ Bluetooth Antenna
  11. USB-C (Data only) x1
  12. USB-A (2.0, 3.0) x2
  13. Keypad
  14. Power Button
  15. IR Receiver
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Screen Size: 163"
    Display Area (mm): 3600 (H) x 2025(V)
    Native Resolution: 3840x2160
    Panel Technology: Direct view LED
    LED Package Type: Flip Chip COB
    Pixel Pitch (mm): 0.93
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 10000:1
    Color Temperature: 3000K -10000K
    Orientation: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Local Storage: Total 32GB
    (26GB available storage)
    Embedded OS: Android 9.0
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
    Horizontal Frequency: 31K-94kHz
    Vertical Scan Rate: 56-85Hz
  • INPUT
    HDMI: 4
    (HDMI 2.0/HDCP 2.2)
    (internal x3, external x1)
    USB Type A: 3
    (USB3.0 x1, USB2.0 x2)
    RJ45 Input: 3
    (internet x2, control x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: 1
    (data only)
  • OUTPUT
    HDMI out: 1
    (HDMI 2.0/HDCP 2.2)
    (internal x1)
    Speaker: 30Wx2
    Audio out (3.5mm): 2
    S/PDIF: 1
    USB Type A (Power): Shared with USB A input
    (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (Power): Shared with USB Type C input
    (5V/1A x1)
  • CONTROL
    RJ45 (LAN control): 1(shared with internet)
    USB Type A (Services): 1(shared with USB A input)
    RS232 (DB 9-pin female): 1
    IR Receiver: 1
  • OTHERS
    Power Supply Voltage: 100-240V ~ 50/60Hz
    (vary by country)
    Power Consumption (W/unit): 805W (typ), 2414W (max)
    < 0.5W (Hibernate)
    Operating Temperature: 0~40℃
    Total LED Module Quantity: 288
    Ingress Protection Rating: IP54(Front)
    Impact Protection Rating: IK08(Front)
    Net Weight: 511.47 lbs
    (232kg)
    Gross Weight: 798.87 lbs
    (361kg)
    Product Dimensions (WxHxD): 142.20 x 85.51 x 1.61 inches
    (3612 x 2172 x 41mm)
    Product Dimensions (WxHxD) with wall mount: 142.20 x 85.51 x 2.35 inches
    (3612 x 2172 x 59.8mm)
    Packing Dimensions (WxHxD): 89.76 x 42.52 x 47.24 inches
    (2280 x 1080 x 1200mm)
  • STANDARD ACCESSORIES
    Power Cord: 1
    LAN Cable (Cat 5E): 1
    IR Extender Cable: 1
    Remote Control: 1
    Installation Guide: 1
    Wall Mount: 1
    Spare Parts: LED module x20
    2 in 1 hub board x1
    Receiving board x1
    Maintenance Tool: LD-MK-004 x1
    LD-MK-006 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-004
    LD-MK-006
    Floor Stand: LD-STND-009
