Key Features
  • Embrace simplicity and organization with the USB-C one-cable solution
  • Intuitive user interface and fast app launch for smooth operation
  • Powered by Android 14

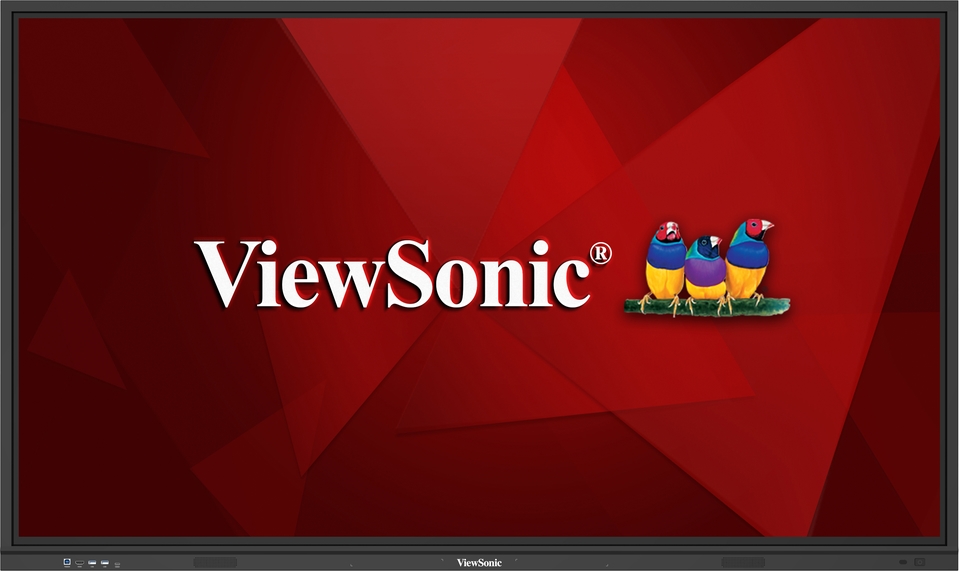

ViewBoard IN7501-G
Product Description
The ViewBoard IN7501-G is the interactive flat panel that delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in speakers and a USB-C port sort out for a complete and convenient user experience.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 75"
    Panel Type: TFT LCD Module with DLED Backlight, ADS
    Display Area (mm): 1649.664(H) × 927.936(V)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07B colors
    Brightness: 450 nits
    Contrast Ratio: 5000:1
    Response Time: 8ms
    Viewing Angles: H=178, V=178
    Backlight Life: 50,000 Hours
    Surface Treatment: Hardness: 9H Anti-glare coating
    Orientation: Landscape
  • PLATFORM
    Processor: Octa-core ARM Cortex (A55*8 )
    RAM: 8GB DDR4
    Storage: 128GB
  • TOUCH
    Type/ Tech: Ultra Fine Touch Technology
    Touch Point: Windows: 40 Android: 40
  • INPUT
    HDMI: x3 (Frontx1:HDMI2.0 ; Rearx2 [(HDMI2.0 with CEC/ARC)x1, (HDMI2.0 with CEC)x1]
    RGB / VGA: x1
    Audio: x1
    RS232: x1
    OPS: x1 (Optional Intel Standard OPS)
    WiFi: x1(Built-in)
  • OUTPUT
    HDMI: x1
    Audio: x1
    SPDIF: x1
  • LAN
    RJ45: x1
  • USB
    Type A: USB3.0:Front x1, Rear x1；
    USB2.0:Front x1, Rear x1(Support OTG)
    Type B: USB 2.0:Frontx1, Rear x1
    Type C: USB 2.0:Frontx 1
  • SPEAKERS
    20W x 2
  • EMBEDDED OS
    Android 14
  • SPECIAL FEATURES
    All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
  • POWER
    Voltage: 100-240V AC
    Consumption: On: 245W
    Off: <0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 600*400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 67.54x40.23x3.69(in) / 1715.6x1021.9x93.7 (mm)
    Packaging (inch / mm): 72.17x45.60x7.87(in) / 1833x1158x200 (mm)
  • WEIGHT
    Net (lb / kg): 101.4lb/43.0kg
    Gross (lb / kg): 121.9lb/55.3kg
  • REGULATIONS
    BIS
  • PACKAGE CONTENTS
    1. 3m power India power plug x 1 2. 3m HDMI cable x 1 3. 3m Touch USB cable (USB2.0) x 1 4. Touch pen x 2 5. Retractable stylus x 1 6. WiFi Dual band antenna x 2 7. Remote control x 1 8. AAA battery x 2 9. Quick Start Guide with Compliance statement 10. Screw x 4 (wall mount M8*25mm)
  • COMPATIBLE SLOT-IN PC
    VPCF5-W55-G1 / VPC37-W53-G1 / VPC35-W53-G1
