Fitur Utama
  • Compact, lightweight, and designed for effortless portability
  • Full HD (1920x1080) IPS display with 60Hz refresh rate
  • 10-point multi-touch* technology offering intuitive screen control
  • USB-C one-cable solution for audio, visual, touch, and power delivery
  • Magnetic protective cover that turns into an adjustable stand

    *To enable the touch function on macOS, please download vTouch
    **External power adaptor required for power charging

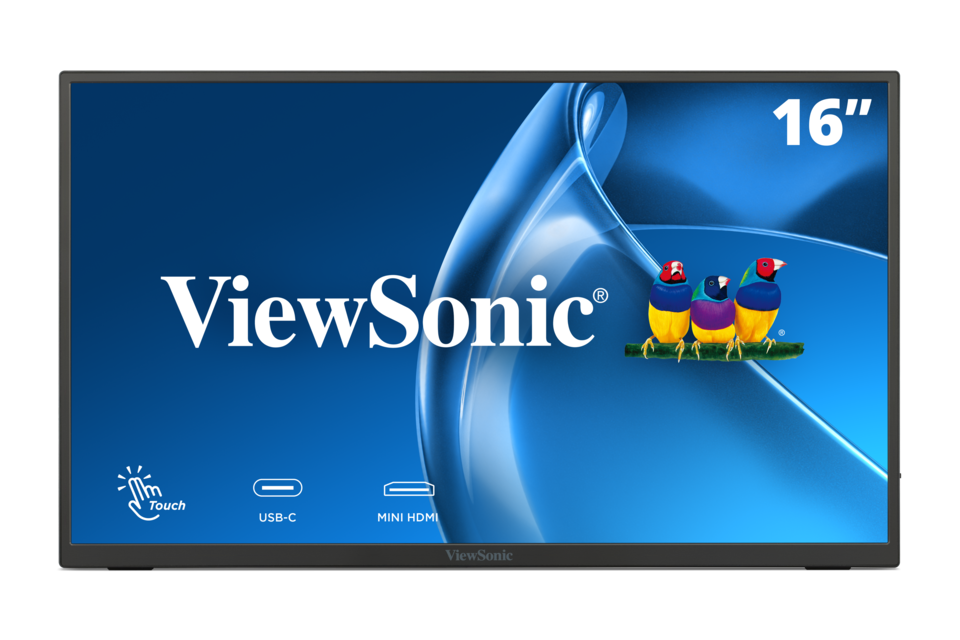

TD1607
Deskripsi Produk
Featuring a compact and lightweight design, the ViewSonic TD1607 is a Full HD (1920 x 1080) portable touch monitor built for hybrid work and multitasking on the go. Its IPS panel delivers clear visuals and wide viewing angles, making it easy to share your screen with others. Responsive 10-point multi-touch brings smooth, intuitive control to everyday tasks, while a single USB-C cable carries audio, video, and touch signals with power delivery for a more simplified setup. Mini HDMI adds plug-and-play compatibility with a wider range of devices. The display comes protected by a magnetic cover that doubles as an adjustable stand. It is easy to carry, quick to set up, and ready to help you stay productive wherever work takes you.

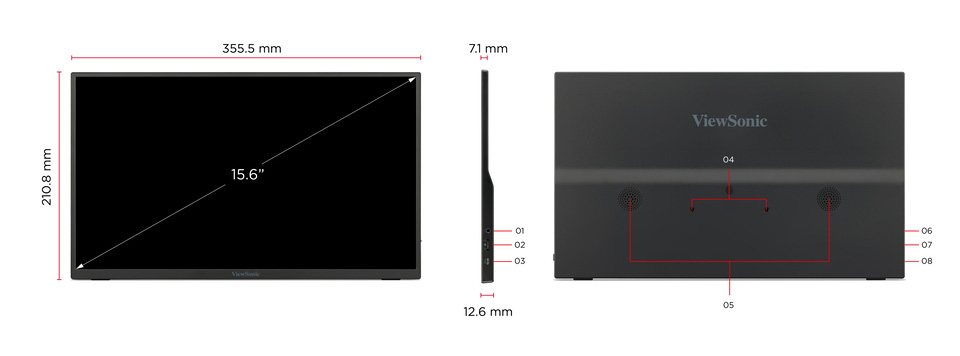

  1. Audio Out
  2. Menu Control Dial
  3. Power Button
  4. VESA Compatible (Wall Mount 75mm)
  5. Speakers
  6. USB-C (Power Input)
  7. USB-C (Power Charger 65W)
  8. Mini HDMI
Kunjungi Kami
  • www.viewsonic.com
  • TAMPILAN
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Jenis Panel: IPS Technology
    Resolusi: 1920 x 1080
    Jenis Resolusi: FHD (Full HD)
    Rasio Kontras Statis: 1,000:1 (typ)
    Rasio Kontras Dinamis: 50M:1
    Sumber cahaya: LED
    Kecerahan: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 7ms
    Waktu Respon (GTG w / OD): 7ms
    Response Time (Typical Tr+Tf): 20ms
    Sudut Pandang: 178º horizontal, 178º vertical
    Backlight Life (Jam): 50000 Hrs (Min)
    Glass thickness: 0.58mm
    Glass Hardness: 3H
    Lengkungan: Flat
    Refresh Rate (Hz): 60
    Filter Cahaya Biru: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 65% size (Typ)
    Ukuran Piksel: 0.179 mm (H) x 0.179 mm (V)
    Layar sentuh: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (3H)
    Cover Glass Thickness: 0.58mm
  • KESESUAIAN
    Resolusi PC (max): 1920x1080
    Resolusi Mac® (maks): 1920x1080
    Sistem Operasi PC: Windows 10/11 certified; macOS tested
    Resolusi Mac® (min): 1920x1080
  • KONEKTOR
    USB 3.2 Tipe C Up Stream; DisplayPort Mode Alternatif: 2 (65W power charger)
    3.5mm Audio Out: 1
    Mini HDMI: 1
    Power in: USB Type C (with video & data)
  • AUDIO
    Speaker Internal: 1Watts x2
  • POWER
    Mode Eco (Hemat): 6W
    Eco Mode (optimized): 7.5W
    Konsumsi (khas): 8W
    Konsumsi (maks): 8.5W
    Tegangan: DC 5V/9V/12V/15V/20V
    Stand-by: 0.5W
    Sumber Daya listrik: External (Optional)
  • KONTROL
    Kontrol Fisik: Lever push key: Up, Enter, Down, Return (power)
    Pada Tampilan Layar: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Suhu: 32°F to 104°F (0°C to 40°C)
    Kelembaban (tanpa kondensasi): 20% to 90%
  • PEMASANGAN DI DINDING
    VESA Compatible: Customized, 75 mm
  • SINYAL INPUT
    Frekuensi Horizontal: mini HDMI (v1.4): 15 ~ 82KHz, Type C: 24 ~ 82KHz
    Frekuensi Vertikal: mini HDMI (v1.4): 50 ~ 75Hz, Type C: 50 ~ 75Hz
  • VIDEO INPUT
    Sinkronisasi Digital: TMDS - mini HDMI (v1.4), Micro-Packet - Type C
  • ERGONOMIS
    Miring (Maju / Mundur): 20º / 30º
  • BERAT (IMPERIAL)
    Net (lbs): 1.8
    Bersih Tanpa Dudukan (lbs): 1.8
    Gross (lbs): 4.4
  • BERAT (METRIC)
    Net (kg): 0.8
    Jaring Tanpa Dudukan (kg): 0.8
    Gross (kg): 2
  • DIMENSI (IMPERIAL) (WXHXD)
    Kemasan (in.): 17.1 x 11.2 x 3.5
    Fisik (in.): 14 x 8.3 x 0.5
    Fisik Tanpa Berdiri (masuk): 14 x 8.3 x 0.5
  • DIMENSI (METRIK) (WXHXD)
    Kemasan (mm): 435 x 284 x 88
    Fisik (mm): 355.5 x 210.8 x 12.6
    Physical Without Stand (mm): 355.5 x 210.8 x 12.6
  • UMUM
    Regulasi: BSMI
    ISI PAKET: TD1607 x1, USB Type-C Gen2 Cable (Male-Male) x1, Quick Start Guide x1, Sleeve case x1
    Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
