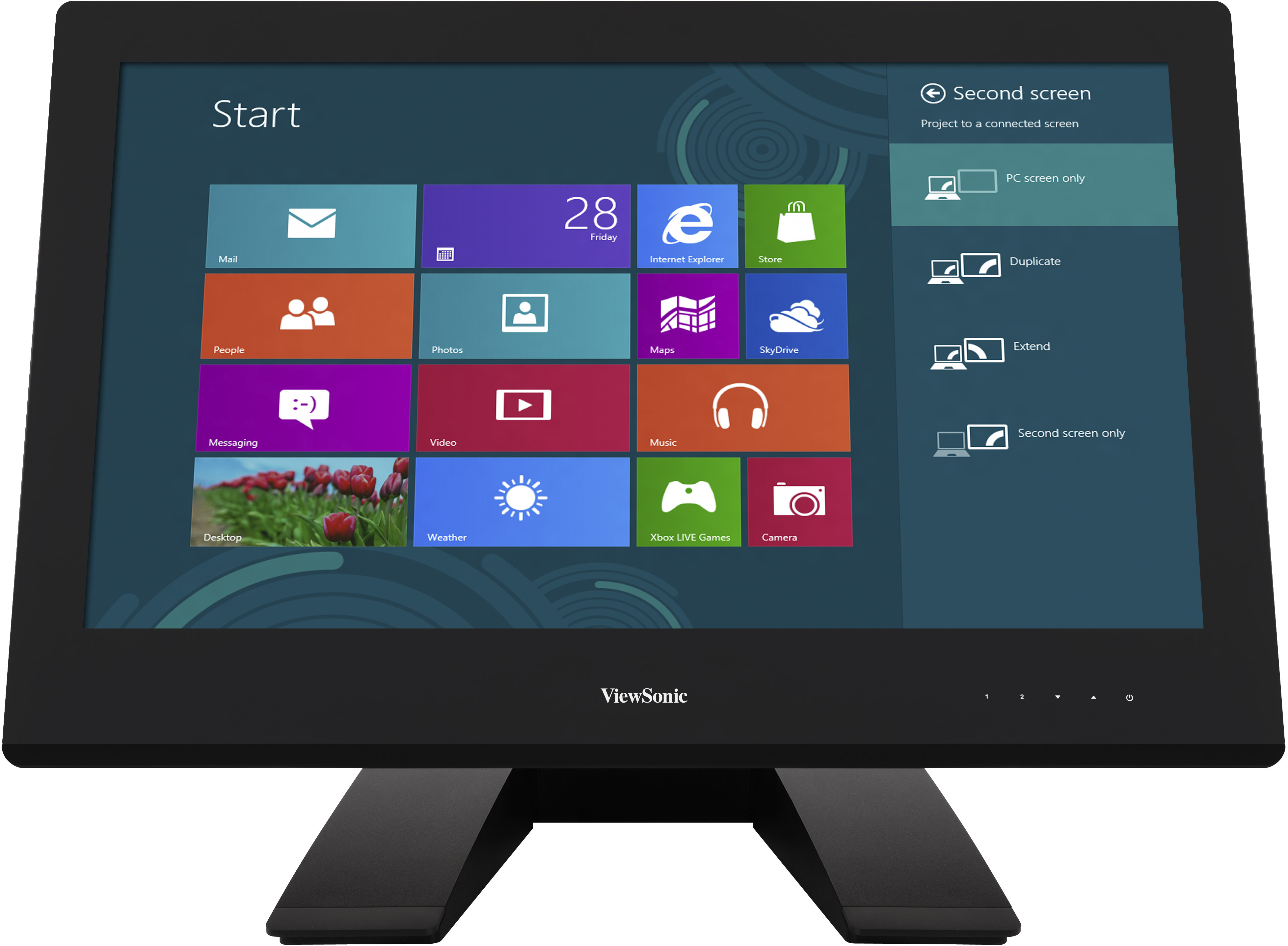

ViewSonic TD2340 23" FHD 10 Points Touch Flicker Free IPS LED with VGA, HDMI, DisplayPort, 2 USB, Speakers, Pivot and Height adjustment

Főbb Tulajdonságok

Termék leírás

Exceptional interactivity comes standard in the ViewSonic® TD2340 Windows® 8 certified 23"" 10-point multi-touch IPS monitor. 1920x1080 Full HD resolution with projected capacitive touch technology delivers seamless and accurate touch experience. Stunning color performance with IPS technology and 20,000,000:1 MEGA Dynamic Contrast Ratio. Integrated speakers with SRS Premium Sound® complete the multimedia package. DisplayPort®, HDMI, VGA inputs provide flexible and convenient connectivity. Dual hinge stand design ensures outstanding ergonomic comfort and productivity. Even VESA mountable design for additional convenience. The TD2340 is fully USB HID compliant and certified with Windows 8. This is the gateway to the new world of interactivity.

Látogasson el hozzánk

www.viewsonic.com

LCD

Típus:	23" Wide Color TFT Active Matrix LED
Optimum Resolution:	1920x1080
Kontrasztarány:	1000:1 (typ.)
Betekintési szögek:	178º horizontal, 178º vertical
Válaszidő:	7ms (typ.)
Panel Surface:	hard-coating (7H)
Display Area:	20.0" horizontal x 11.3" vertical; 23.0" diagonal
Fényerő:	250 cd/m² (typ.)
Dinamikus kontrasztarány:	20,000,000:1
Backlight:	White-light LED
Háttérvilágítás élettartama:	30,000 hours (min.)

VIDEó BEMENET

Digital: HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)

Frequency: Fh: 24~83kHz, Fv: 50~76Hz

Sync: Separate Sync

Analogue: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
KOMPATIBILITáS

PC: PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)

Mac®: Power Mac (up to 1920 x 1080)
CSATLAKOZó

Analog: 15-pin mini D-sub (VGA)

Audió: Audio In (3.5mm mini-jack)

Earphone Out (3.5mm mini-jack)

USB: USB x2, USB Upstream x1

Teljesítmény: Internal power board, 3-pin plug (CEE22)
VEZéRLőK

Front Panel: 1, 2, Down, Up, Power

DIMENSIONS

Physical Without Stand:	22.7 x 17.9 x 2.6 in. / 576.6 x 453.8 x 66.5 mm
Packaging:	26.4 x 20.1 x 9.2 in. / 671 x 510 x 234 mm
Physical With Stand:	22.7 x 17.9 x 12.8 in. / 576.6 x 453.8 x 324.5 mm

WARRANTY

Three-year limited warranty on parts, labor and backlight.
RECYCLE/DISPOSAL

Please dispose of in accordance with local, state or federal laws.
POWER

Fogyasztás: w/o audio 22W (typ.) / w/ audio 45W (typ.)

Optimize: 23W (typ.)

Conserve: 18.5W (typ.)

Feszültség: AC 100–240V (universal), 50 / 60Hz
VESA® MOUNT

100mm x 100mm
POWER MANAGEMENT

ENERGY STAR® standards / EPEAT Gold
ERGONOMICS

Rotation: 90º

Dönthető: 50º~-5º
WEIGHT

Net With Stand: 20.4 lb. / 9.2 kg

Net Without Stand: 14.5 lb. / 6.6 kg

Bruttó: 26.9 lb. / 12.2 kg
OPERATING CONDITIONS

Hőmérséklet: 32–104º F (0–40º C)

Páratartalom: 20–90% (non-condensing)
AUDIO OUT

Speakers: 2-watt (x2)
CSOMAG TARTALMA

TD2340 display, power cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD (available in some countries only)

Digital:	HDMI (TMDS, 100 ohms) / DisplayPort (PCI-E)
Frequency:	Fh: 24~83kHz, Fv: 50~76Hz
Sync:	Separate Sync
Analogue:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

PC:	PC compatibles (VGA up to 1920 x 1080 Non-Interlaced)
Mac®:	Power Mac (up to 1920 x 1080)

Analog:	15-pin mini D-sub (VGA)
Audió:	Audio In (3.5mm mini-jack) Earphone Out (3.5mm mini-jack)
USB:	USB x2, USB Upstream x1
Teljesítmény:	Internal power board, 3-pin plug (CEE22)

Fogyasztás:	w/o audio 22W (typ.) / w/ audio 45W (typ.)
Optimize:	23W (typ.)
Conserve:	18.5W (typ.)
Feszültség:	AC 100–240V (universal), 50 / 60Hz

Net With Stand:	20.4 lb. / 9.2 kg
Net Without Stand:	14.5 lb. / 6.6 kg
Bruttó:	26.9 lb. / 12.2 kg

Hőmérséklet:	32–104º F (0–40º C)
Páratartalom:	20–90% (non-condensing)

Rotation:	90º
Dönthető:	50º~-5º
