Toll kijelző

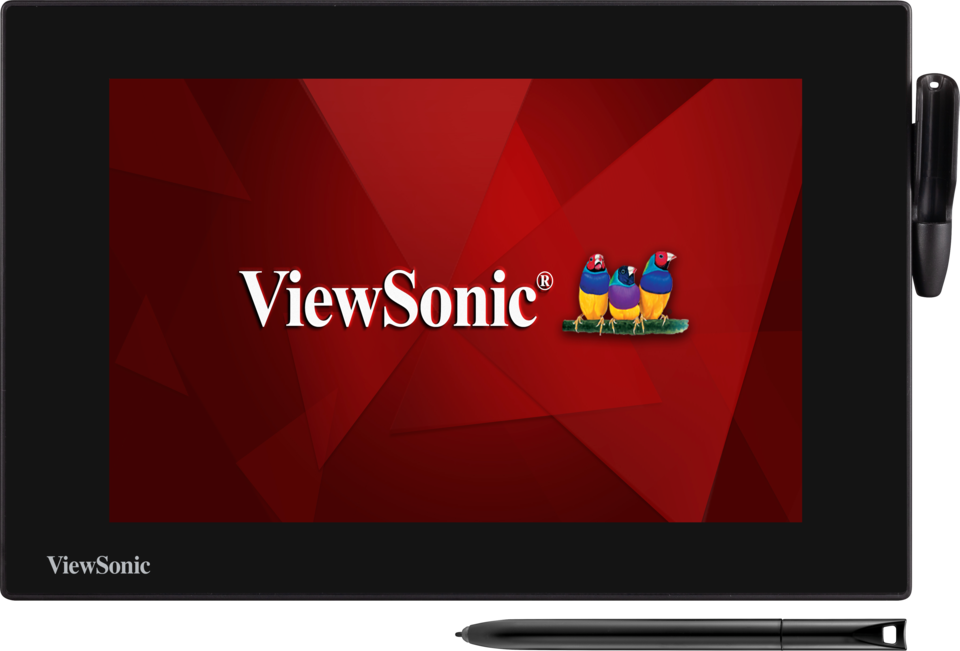

PD1013
Főbb Tulajdonságok
- Implemented antimicrobial technology on pen and housing
- High performance and e-Signature precision with 2048 pen pressure
- Ergonomic design, VESA compliance, and Kensington lock security
- Windows® compatible and supports e-Signature software
- 8H tempered glass with anti-scratch, anti-glare, and anti-fingerprint
- Ergonomic design in portrait and landscape mode
Termék leírás
ViewSonic PD1013 is an ideal solution for optimizing the user experience with streamlined service via Kiosk solution. 10.1-inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and sign documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.
Látogasson el hozzánk
- www.viewsonic.com
-
LCD PANEL
Display Area: 216.96 x 135.6 mm (10.1" TFT LCD) Optimum Resolution: 1280 x 800 pixels Fényerő: 200 cd/m2 Kontrasztarány: 800:1 Backlight: LED Light-Bar Betekintési szögek: H:170° (85°/ 85°) V:170° (85°/ 85°) Panel Surface: Anti-glare, Hard coating (8H) -
CONNECTOR
USB: Micro USB 2.0 x 1 -
TOUCH
Accuracy: +/- 0.5mm(center) -
ERGONOMICS
Dönthető: Portrait : 0/ 15°/ 20°
Landscape: 0/ 9°/ 13° -
COMPATIBILITY
PC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request) -
POWER
Feszültség: USB 5V Fogyasztás: 4.55W (Typ.) / 5.06W (Max.) -
OPERATING CONDITIONS
Temperature (º F / º C): 0℃ to 50℃ Páratartalom: 20%-80%(Max), Non-condensation -
DIMENSIONS W X H X D (INCH/MM)
Physical (in / mm): 287.0 x 185.6 x 14.3 mm Box (in / mm): 350.0 x 273.0 x 76.0 mm -
WEIGHT
Nettó (font / kg): 0.66 kg Bruttó (font / kg): 1.09 kg -
REGULATIONS
CE/ FCC/ BSMI -
WARRANTY
1 Year -
WHAT'S IN THE BOX
1. PD1013 Pen display x 1
2. USB 2.0 2-in-1 Y-cable (Micro USB to Type A x 2) x 1
3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power adapter 5V/2A x 1
9. Quick start guide x 1
