Főbb Tulajdonságok
  • 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
  • 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
  • High native contrast ratio powered by a 0.65” DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
  • Centralized LAN control for efficient management

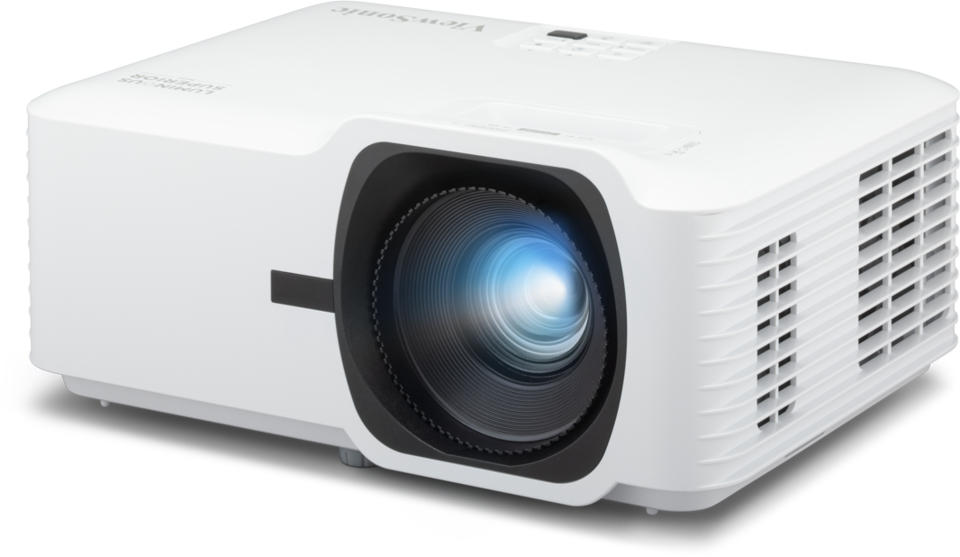

LSD401HD
Termék leírás
The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

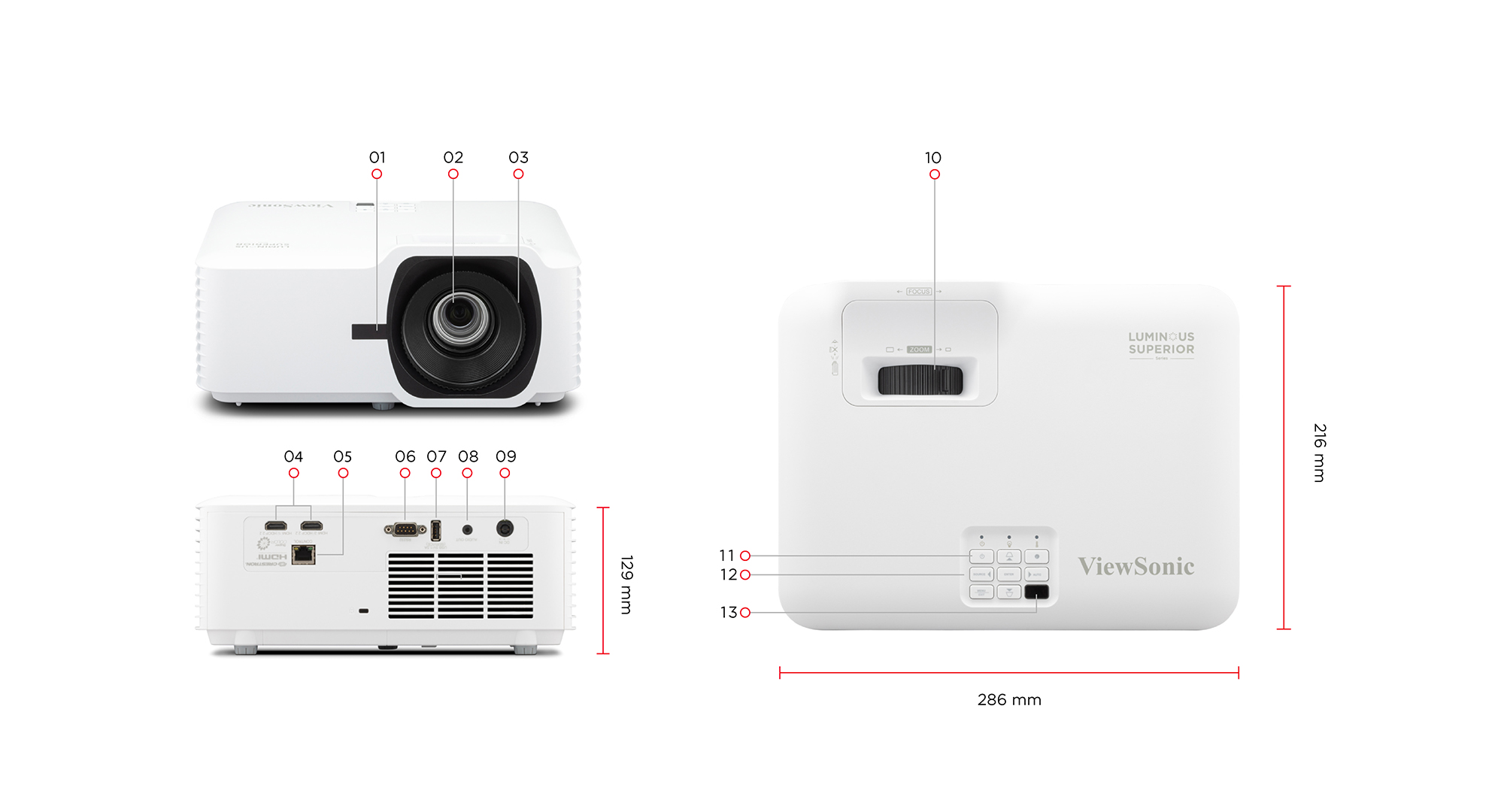

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 2.0 / HDCP 2.2 x2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR
Látogasson el hozzánk
  • www.viewsonic.com
  • SPECIFIKáCIó
    Vetítési rendszer: 0.65" 1080P
    Natív felbontás: 1920x1080
    Fényerő: 4000 (ANSI Lumens)
    Brightness (Center Lumens): 4400
    Kontrasztarány: 3000000:1
    Display Color: 1.07 Billion Colors
    Fényforrás típusa: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Objektív: F=2.43-2.78, f=16.90-21.61mm
    Vetítési eltolás: 132%+/-10%
    Vetítési arány: 1.13-1.47
    Optikai zoom: 1.3X
    Digitális zoom: 0.8x-2.0x
    Képméret: 30"-300"
    Vetítési távolság: 0.75-9.76m
    (100"@2.50m)
    Keystone: H:+/-30° , V:+/-30°
    Hallható zaj (normál): 32dB
    Hallható zaj (Eco): 27dB
    Bemeneti késleltetés: 16.7ms
    Támogatott felbontás: VGA(640 x 480) to 4K UHD(3840 x 2160)
    HDTV kompatibilitás: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Vízszintes frekvencia: 15K-135KHz
    Függőleges letapogatási sebesség: 24-120Hz
  • BEMENET
    HDMI: 2
    (HDMI 2.0, HDCP 2.2)
  • KIMENET
    Audio-out (3.5mm): 1
    Hangszóró: 15W
    A típusú USB (tápellátás): 1 (5V/1.5A)
  • VEZéRLéS
    RS232 (DB 9-tűs hím): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • EGYéB
    Tápegység feszültség: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Energiafogyasztás: Normal: 143W
    Standby: <0.5W
    Üzemi hőmérséklet: 0~40℃
    Carton: Brown
    Nettó súly: 3kg (6.61 lbs)
    Gross Weight: 4.5kg (9.92 lbs)
    Méretek (SzxHxM) állító lábbal együtt: 286x216x129mm (11.3x8.5x5.1 in)
    Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
    OSD nyelv: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD TARTOZéK
    Hálózati kábel: 1
    Távirányító: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPCIONáLIS TARTOZéK
    Wall/Ceiling Mount: PJ-WMK-007
    Hordtáska: PJ-CASE-008
