Főbb Tulajdonságok
  • Pre-assembled kit, ready for immediate use—no installation required
  • Foldable screen that fits easily into large passenger elevators for convenient transport
  • Shockproof, dustproof, and moisture-resistant with GOB surface treatment
  • Built-in stand with an integrated control box and motorized height adjustment
  • Seamless large display designed to captivate audiences in any space

LDS138-151
Termék leírás

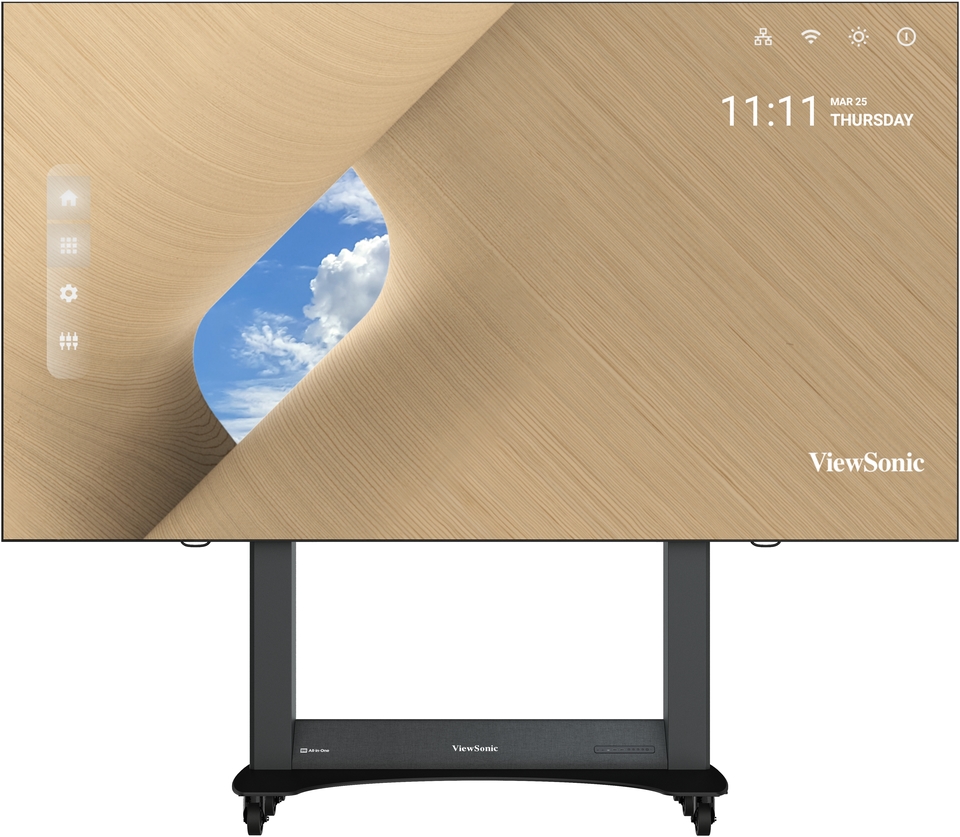

The ViewSonic® LDS138-151 is a foldable 138” All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.
  1. HDMI Out
  2. Audio Out
  3. HDMI In x4
  4. S/PDIF Out
  5. USB 2.0 (5V/2A)
  6. LAN
  7. IR Extension
  8. Control Panent:Height Adjust
  9. Light Sensor
  10. IR Receiver
  11. USB-C (5V/1.0A)
  12. USB 3.0 (5V/0.9A)
  13. USB 2.0 (5V/0.5A)
  14. Menu Control: Setting
  15. Menu Control: Enter
  16. Menu Control: Brightness Level
  17. Power Button
  18. Indicator Light
Látogasson el hozzánk
  • www.viewsonic.com
  • SPECIFIKáCIó
    Screen Size: 138"
    Megjelenített terület (mm): 3050 (H) x 1715 (V)
    Natív felbontás: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.588
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K -10000K
    Orientáció: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Helyi tároló: Total 32GB
    (26GB available storage)
    Beágyazott operációs rendszer: Android 9.0
    Támogatott felbontás: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    HDTV kompatibilitás: 480p, 576p, 720p, 1080p, 2160p
    Vízszintes frekvencia: 31K-94kHz
    Függőleges letapogatási sebesség: 56-85Hz
  • BEMENET
    HDMI: 4
    (HDMI 2.0/HDCP 2.2)
    (internal x3, external x1)
    USB A típus: 3
    (USB3.0 x1, USB2.0 x2)
    RJ45 bemenet: 3
    (internet x2, control x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    C típusú USB: 1
    (data only)
  • KIMENET
    HDMI out: 1
    (HDMI 1.4/HDCP 1.4)
    (internal x1)
    Hangszóró: 30Wx2
    Audió kimenet (3,5 mm): 2
    S/PDIF: 1
    A típusú USB (tápellátás): Shared with USB A input
    (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1)
    USB Type C (Power): Shared with USB Type C input
    (5V/1A x1)
  • VEZéRLéS
    RJ45 (LAN control): 1(shared with internet)
    USB Type A (Services): 1(shared with USB A input)
    RS232 (DB 9-pin female): 1
    IR Receiver: 1
    Light Sensor: 1
  • EGYéB
    Tápegység feszültség: 100-240V ~ 50/60Hz
    (vary by country)
    Power Consumption (W/unit): 581W (typ), 1745W (max)
    < 0.5W (Hibernate)
    Inrush Current:
    220V: 84A / 110V: 58A
    Üzemi hőmérséklet: 0~40℃
    Total LED Module Quantity: 200
    Ingress Protection Rating: IP54(Front)
    Impact Protection Rating: IK06(Front)
    Nettó súly: 676.82 lbs
    (307 kg)
    Gross Weight: 1044.99 lbs
    (474 kg)
    Product Dimensions (WxHxD): 72.87x76.71x30.71 inches (min.)
    (1850.81x1948.4x780 mm (min.))
    120.63x102.28x30.71 inches (max.)
    (3064x2598x780 mm (max.))
    Packing Dimensions (WxHxD): 81.5x78.58x33.35 inches
    (2070x1996x847 mm)
  • STANDARD ACCESSORIES
    Hálózati kábel: 1
    LAN Cable (Cat 5E): 1
    IR Extender Cable: 1
    Távirányító: 1
    QSG: 1
    Spare Parts: LED module x14
    3 in 1 hub board x3
    Maintenance Tool: LD-MK-006 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-006
