Kereskedelmi kijelző
CDE3205-EP
Főbb Tulajdonságok
- Full HD 1080p resolution
- Integrated USB Multimedia Player
- Dual 10W Integrated Speakers
- Supports HDMI CEC pass-through
- Blue Light Filter eyecare technology
Termék leírás

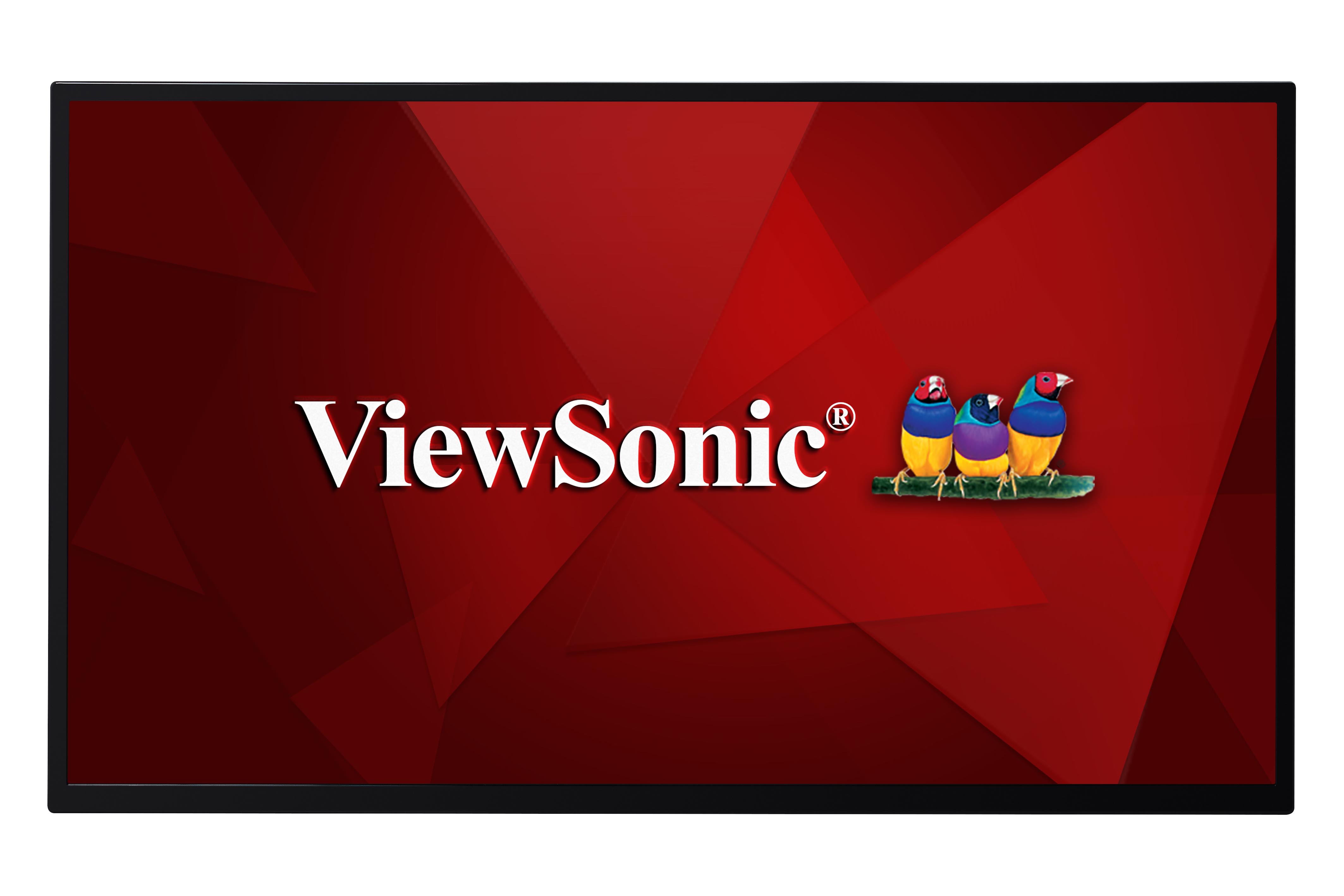

The ViewSonic CDE3205 is a great value 32’’ (31.5” viewable) Full HD LED presenation display with high reliability working time 16 hours per day/7 days a week for retail, hospitality, and QSR (Quick Service Restaurant) environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, YPbPr, USB, IR, RJ45, the display comes with a convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, IPS 178-degree wide viewing angles and 2 x 10W stereo speakers, the slim-bezel CDE3205 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. Creating a more comfortable viewing experience, the display is equipped with Blue Light Filter technology.
Látogasson el hozzánk
- www.viewsonic.com
-
LCD PANEL
Panel mérete: 32" Típus/ Technika: TFT LCD Module with LED Backlight Megjelenített terület (mm): 698.4 (H) x 392.85 (V) Képarány: 16:09 Felbontás: 1920 x 1080 Colors: 16.7M colors Fényerő: 350 nits (typ.) Kontrasztarány: 1200:1 (typ.) Válaszidő: 8 ms Betekintési szögek: H = 178, V = 178 (typ.) Backlight: WLED Háttérvilágítás élettartama: 30,000 Hours Min. Hardness: 3H -
INPUT
HDMI: x 1 RGB / VGA: x 1 DVI: x 1 Audió: x1 PC audio (3.5 mm), x 1 (RCA L/R) CVBS (AV): x 1 (Share with Y) YPbPr: x 1 RS232: x 1 IR: x 1 (over audio port) -
OUTPUT
Audió: x 1 (RCA L/R) RS232: x 1 IR: x 1 (over audio port) -
LAN
RJ45: x 1 -
USB
2.0 Type A: x 1 (USB Playback) -
HANGSZÓRÓK
10W x 2 -
COMPATIBILITY
VGA: Up to 1920 x 1080 DVI: Up to 1920 x 1080 HDMI: 480i, 480p,720p, 1080i, 1080p CVBS: 480i YPbPr: 480i, 480p,720p, 1080i, 1080p -
POWER
Feszültség: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz Fogyasztás: Normal 57 W, Max 81 W -
ERGONOMICS
Falra szerelhető (VESA® ): 100x100mm / 200x200mm ; Screw: M4*8 mm -
OPERATING CONDITIONS
Hőmérséklet (ºC): 5°C to 40°C Páratartalom: 20% ~ 80% non-condensing -
MÉRETEK (SZ X H X M)
Physical (mm / inch): 726.5 x 462.93 x 239.8 mm / 28.6 x 18.23 x 9.44 in. (with Stand) Physical w/o Stand (mm / inch): 726.5 x 425.4 x 63.6 mm / 28.6 x 16.75 x 2.5 inch Packaging (mm / inch): 818 x 547 x139 mm / 32.2 x 21.54 x 5.47 inch -
WEIGHT
Net (kg / lb): 6.67 kg / 14.7 lbs (with Stand) Net w/o Stand (kg / lb): 5.20 kg / 11.46 lbs Gross (kg / lb): 7.8 kg / 17.20 lbs -
WHAT'S IN THE BOX?
1. CDE3205-EP presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. RS232 daisy chain cable (2.4mm – 2.4mm)
9. IR sensor cable
