關鍵功能
  • Pre-assembled kit ready for instant use
  • Foldable screen with the movable flight case for easy delivery
  • Built-in stand with motorized height adjustment
  • Impressive audio from Harman Kardon speakers
  • Seamless large display for rental at any event/exhibition

LDS135-151
產品說明
The ViewSonic® LDS135-151 is a foldable 135” All-in-One LED display that boasts instant use, easy delivery, and convenient maintenance, making it an ideal rental-ready solution for events, exhibitions, or any other short-term usage. The pre-assembled design and built-in motorized height adjustment stand enable effortless setup within just a few minutes. Delivery convenience is greatly enhanced with the new foldable screen design, reducing the packaging size of the movable flight case by nearly 50% compared to the previous generation, thus minimizing shipping costs. With the seamless large screen and superior built-in Harman Kardon speakers, be ready to impress your audience everywhere from high-end board rooms and receptions to galleries, auditoriums, and other large venues.

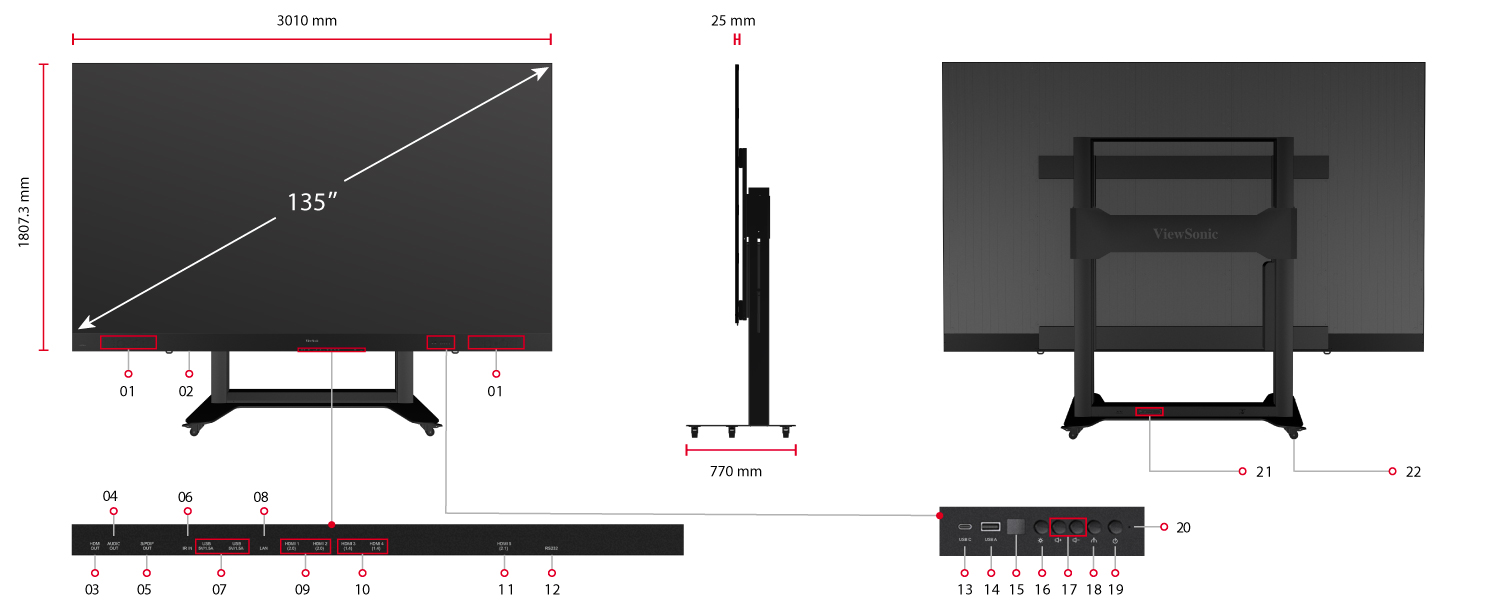

  1. Harman Kardon Speakers
  2. Power Button
  3. HDMI Out
  4. Audio Out
  5. S/PDIF Out
  6. IR In
  7. USB 2.0 (5V/1.5A) x 2
  8. LAN & Control
  9. HDMI 2.0 x 2
  10. HDMI 1.4 x 2
  11. HDMI 2.1
  12. RS232
  13. USB-C (5V/2A)
  14. USB 2.0 (5V/1.5A)
  15. IR Receiver
  16. Menu Control: Brightness Level
  17. Menu Control: Volume
  18. Menu Control: Input Source
  19. Power Button
  20. Indicator Light
  21. Control Panel: Height Adjustment
  22. 360° Silent Wheels
造訪我們
  • www.viewsonic.com
  • 規格資訊
    Screen Size: 135''
    顯示區域 (mm): 3000 (H) x 1687.5V)
    原始解析度: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1
    Bonding Wire: Gold
    Pixel Pitch (mm): 1.56
    Refresh Rate: 4440Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    顯示方向: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    本機儲存空間: Total 64GB
    (56GB available storage)
    內建作業系統: Android 9.0
    支援解析度: VGA(640 x 480) to
    1080p(1920 x 1080)
    HDTV 相容性: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
    水平頻率: 23-120 kHz
    垂直掃描率: 15-135 Hz
  • 輸入
    HDMI: x6
    (HDMI 2.1 x 1, HDMI 2.0 x 3, HDMI 1.4 x 2)
    USB Type A: x3
    ( USB2.0 x3)
    RJ45 Input (Internet): x1
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: x1
    (Video input、 Power output (5V/2A))
  • 輸出
    HDMI out: x2
    (HDMI 2.0 external x1,internal x1)
    喇叭: 20W x2 (Harman Kardon)
    耳機輸出孔 (3.5 mm): x1
    USB Type A (供電): Shared with USB input
    (5V/1.5A x3)
  • 調整選項
    USB Type A (Services): x1(shared with USB A input)
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • 其他
    電源供應電壓: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
    (vary by country)
    電源消耗: 1500W (typ), 2500W (max)
    < 0.5W (Sleep), < 0W (Off)
    運作時溫度: 0~40℃
    LED Module Quantity: 100
    Ingress Protection Rating: IP30
    淨重: 564 lbs
    (253 kg)
    Gross Weight: 998 lbs
    (453 kg)
    Screen Dimensions (WxHxD): 1800x1948x770 mm(min.)
    3010x2598x770 mm(max.)
    Packing Dimensions (WxHxD): 74.8x80x31.5 inches
    (1900x2032x800 mm)
  • STANDARD ACCESSORIES
    電源線: x1
    LAN Cable (Cat 5A): x1 (5m)
    遙控器: x1
    快速使用手冊: x1
    Spare Parts: LED PCB Unit x7
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
