Key Features
  • Designed for Xbox with 1440p @ 120Hz for an unrivaled gaming experience ​
  • True 4K HDR immersive visual experience​
  • Advanced LED technology with 60,000 hours lifespan​
  • 2,900 LED Lumens for bright and clear images in any environment​​
  • Flexible installation: V lens shift, optical zoom and side projection capabilities​
  • Theater-level sound by Harman Kardon speakers

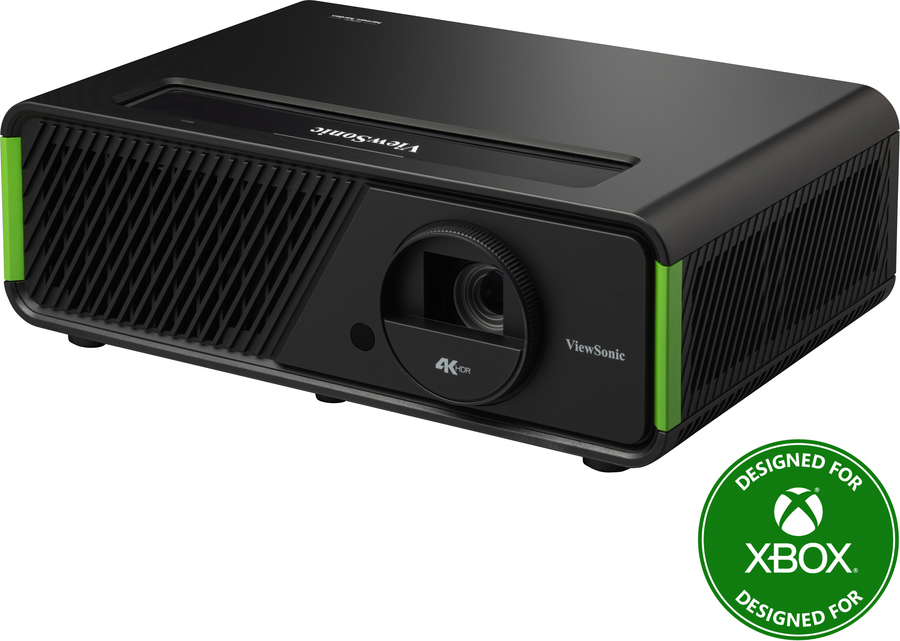

X1-4K
Product Description
Experience gaming like never before with the world's first “Designed for Xbox” projector series. Boasting 1440p resolution delivered with an ultra-smooth 120Hz refresh rate on a 100+” screen, the ViewSonic X1-4K transforms gaming sessions into a larger-than-life experience. The projector combines crisp visuals rendered in 4K HDR with cinematic audio produced by Harman Kardon speakers to deliver a truly enthralling audiovisual experience. Immerse yourself in brilliant image quality powered by advanced 3rd generation LED technology that offers a 60,000-hour lifespan without lamp replacement, a high brightness of 2,900 LED Lumens, and vibrant colors covering 125% Rec.709. With vertical lens shift, 1.3x optical zoom, and side projection capabilities including H/V keystone and 4 corner adjustment, the projector enhances installation flexibility, making set-up for big-screen viewing a breeze. Screen mirroring via Wi-Fi also allows seamless content streaming, and the Bluetooth connectivity enables additional audio options, offering an intuitive and cinematic audiovisual experience. ​
  1. Zoom/Focus Ring
  2. Lens Shift Control Knob
  3. Keypad
  4. LED Indicator
  5. Sliding Door
  6. Front IR
  7. Speakers
  8. Audio Out
  9. RS232
  10. USB-A (Service)
  11. HDMI 2.0/ HDCP 2.2 x 2
  12. USB-C (5V/1A)
  13. USB-A Reader (5V/1A)
  14. Rear IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 3840x2160
    Brightness: 2900 (LED Lumens)
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: LED
    Light Source Life (hours) with Normal Mode: 60000
    Lens: F=2.48-2.78, f=16.89-21.87mm
    Projection Offset: 110%+/-5%
    Throw Ratio: 1.15-1.5
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-150"
    Throw Distance: 1.53m-4.98m
    (100"@2.55m)
    Keystone: H:+/-40° , V:+/-40°
    Lens Shift V. Range: +10%, -0%
    Audible Noise (Normal): 33dB
    Audible Noise (Eco): 29dB
    Local Storage: Total 16GB
    (12GB available storage)
    Input Lag: 4.2ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-240Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
    USB Type C: 1 (5V/1A)
    Audio-in (Bluetooth): 1 (BT4.2)
    USB Type A: 1
    (USB2.0 Reader)
    Wifi Input: 1 (5Gn)
  • OUTPUT
    Audio-out (3.5mm): 1
    Audio-out (Bluetooth): 1 (BT4.2)
    Speaker: 6W Cube x2
    (Full range x2)
    USB Type A (Power): 1
    (USB2.0 - 5V/1A x1,
    share with USB A Input)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 236W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Color
    Net Weight: 3.6kg
    Gross Weight: 5.5kg
    Dimensions (WxDxH) with Adjustment Foot: 355x244x121mm
    Packing Dimensions: 490x376x313mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian Total 24 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    USB-C Cable: 1 (1m)
    Remote Control: 1
    (BT w/ backlit)
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-009
