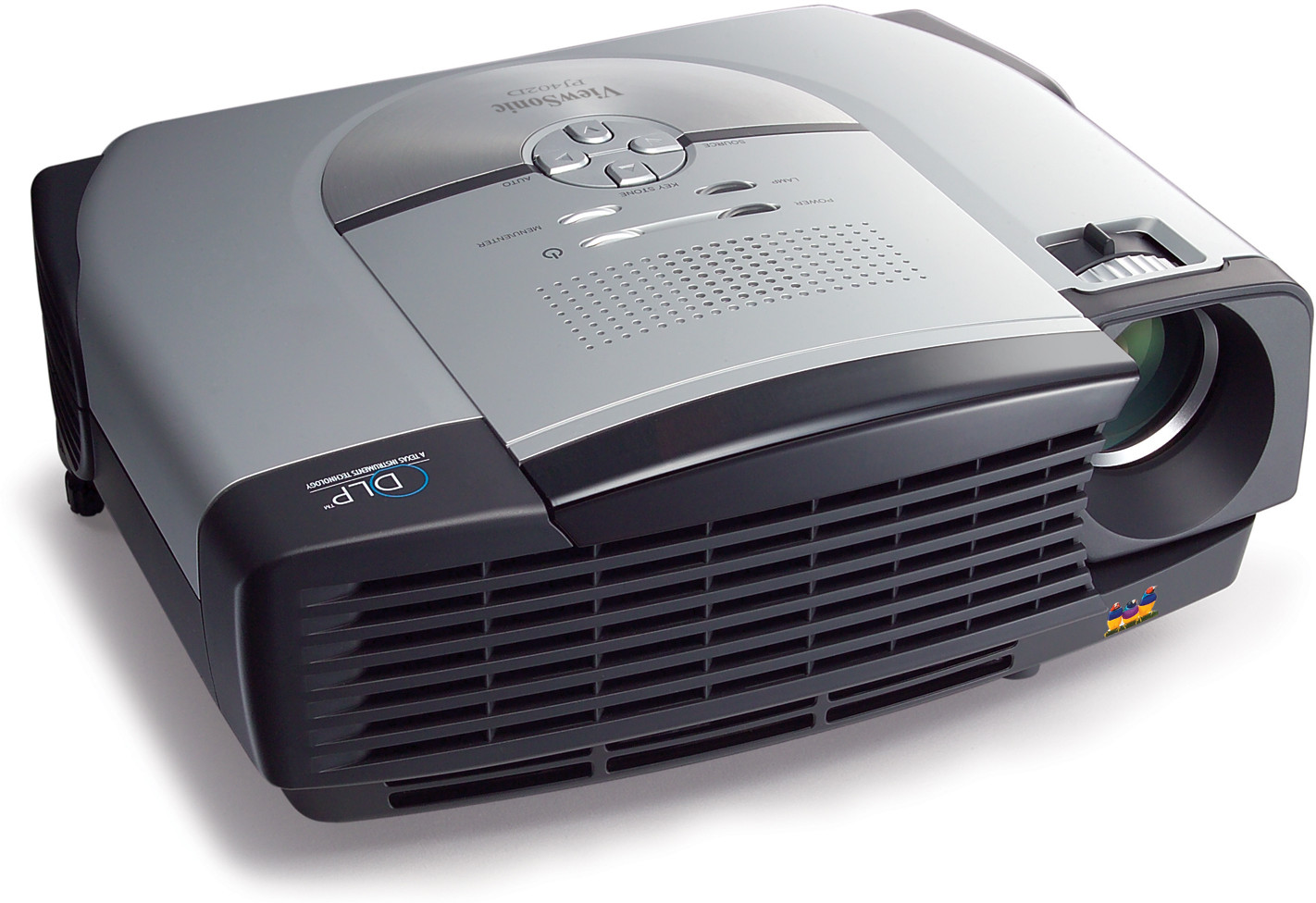

ViewSonic PJ402D ULTRA-PORTABLE SVGA DLP™ PROJECTOR

COMPATIBILITY

Mac®: Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred

PC: Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred
DIMENSIONS

Physical (WxHxD): 256 x 88 x 200 (physical)

W x H x D mm: 360 x 300 x 250 (packaging)

PACKAGE CONTENTS

DLP™ projector, power cables (Europe [Schuko]/UK), VGA video cable,
S-video cable, RCA video cable, audio cable, remote control, batteries,
soft carry case, lens cap, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers)

WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 1 x 2-Watt
INPUT SIGNAL

Frequency: Fh: 31 – 79kHz, Fv: 50 – 85Hz

Video: RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV (480i/p, 576i/p), HDTV (720p, 1080i)

CONNECTOR

Composite Video Input:	RCA jack
Component Video Input:	15-pin mini D-sub to 3x RCA Component video adapter1
USB:	USB Typ B (for service only)
Audio:	3.5mm stereo mini jack
S-Video:	4-pin mini-DIN
PC-RGB:	15-pin mini D-sub

POWER

Voltage: AC 100 – 240V, 50/60Hz (auto switch)

Consumption: 250 watts (typ.)

CONTROLS

OSD:

Auto image adjust, Image (contrast, brightness, keystone, aspect ratio
[1:1, 16:9, 4:3], blank screen, Gamma [film, photo, RGB, video], white
peaking, colour temperature [high, mid, low, user], colour-RGB), Video
(sharpness, saturation, tint), Display (phase, H size, H/V position),
Language (English, French, German, Italian, Japanese, Korean,
Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese)
Advanced (auto source detection, projection [front, rear, ceiling], ECO mode, lamp timer, lamp timer reset, OSD timeout, OSD position, reset), Audio (volume, mute)

Physical:

Standby on/off, menu, input, auto image adjust, keystone

WEIGHT

Net: 2.2kg

Gross: 5.0kg

DISPLAY

Contrast Ratio:	2000:1
Aspect Ratio:	4:3 (native), 16:9, 1:1
Throw Distance:	1.2m – 10m
Throw Ratio:	1.79 ~ 2.1:1
Brightness:	2000 ANSI lumens
Size:	27.8" – 278" (0.71m – 7.06m) (diagonal)
Lamp:	200 watts, 2000 hours (Eco mode 3000 hours2)

NOISE LEVEL

Normal: 36dB (typ.)

Eco-mode: 34dB (typ.)

DLP

Type:	1.4 cm / 0.55" DDR XGA DMD DLP™
Resolution:	SVGA, 800 x 600 native (max. 1280 x 1024 compressed)
Lens:	Manual focus/manual zoom
Digital Keystone:	Vertical ± 15°
Zoom Factor:	1.2, F 2.5 (f = 20.2mm – 24.2mm)

OPERATING CONDITIONS

Humidity: 35% – 85% (non condensation)

Temperature: 5°C – 40°C

Mac®:	Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred
PC:	Analogue: (640 x 480, expanded) to SXGA (scaled), 800 x 600 @ 60Hz preferred

Physical (WxHxD):	256 x 88 x 200 (physical)
W x H x D mm:	360 x 300 x 250 (packaging)

Frequency:	Fh: 31 – 79kHz, Fv: 50 – 85Hz
Video:	RGB analogue, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV (480i/p, 576i/p), HDTV (720p, 1080i)

Voltage:	AC 100 – 240V, 50/60Hz (auto switch)
Consumption:	250 watts (typ.)

Humidity:	35% – 85% (non condensation)
Temperature:	5°C – 40°C

Net:	2.2kg
Gross:	5.0kg

Normal:	36dB (typ.)
Eco-mode:	34dB (typ.)
