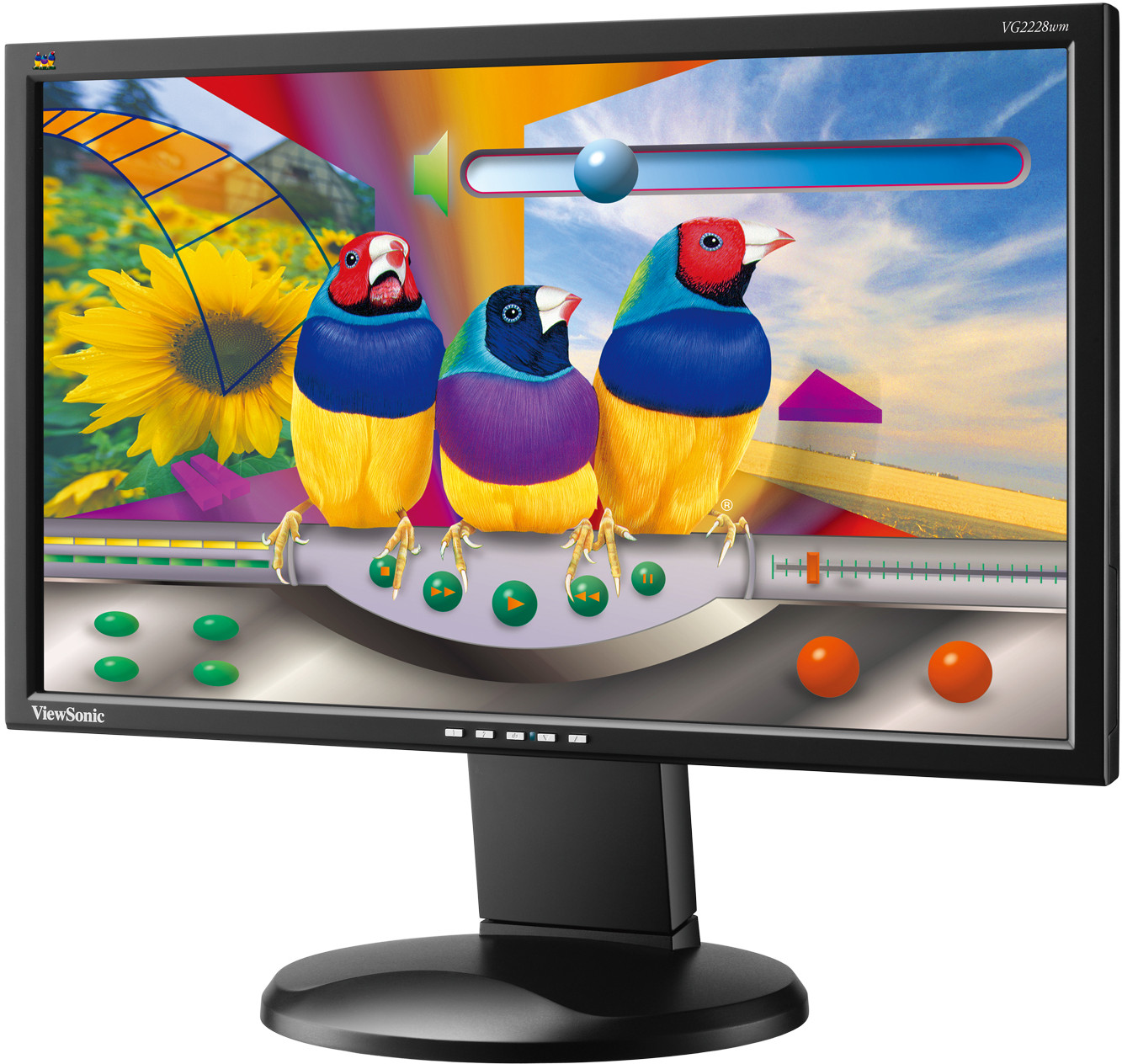

ViewSonic VG2228wm 56cm/22" (55cm/21.5" VIEWABLE) WIDESCREEN LCD WITH DYNAMIC CONTRAST RATIO

COLORS

Black

LCD

Rapport de contraste:	1000:1 typical, 100,000:1 dynamic
Angles de vue:	160o(H), 160o(V)
Zone d'affichage:	476.64mm (H) x 268.11mm (V)
Résolution optimale:	1920×1080
Temps de réponse:	5ms typical
Source lumière:	50,000 hrs typical
Surface panneau:	Anti-Glare
Pas de pixel:	0.248mm(H)×0.248mm(V)
Prise en charge des couleurs:	16.7 M(6-bits + Hi FRC)
Taille:	55cm/21.5" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Luminosité:	300 cd/m² typical

COMPATIBILITÉ

Ordinateur: VGA up to 1920×1080 non-interlaced

Mac®: Mac os, up to 1920×1080
DIMENSIONS (MM)

Physique avec support: 511mmx412mmx230mm

Physique sans support: 511mmx306mmx62mm
CONTENU DE L'EMBALLAGE

DVI-D Cable, Power Cable, Audio cable, USB cable
ENTRéE

Synchronisation: H/V Separated

Numérique: DVI-D(TMDS, 100 ohms)

Analogique: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)

Fréquence: Fh: 24-82kHz, Fv: 50-75Hz
CONNECTEURS

Analogique: 15 pin mini D-sub×1

Numérique: DVI-D

USB: down stream x 2 / up stream x 1

Audio: 3.5 mm Audio in

Alimentation: Built-in power Adapter, 3-Pin plug
ALIMENTATION

Tension: AC 100-240V(Universal); 50/60Hz(Switch)

Consommation: 42W typical

Mode Eco: Optimize 31W (typ.) / conserve 26W (typ.)

Mode Economie (W): ≦0.5W

COMMANDES

De base:

Power, Mute,[1], Up[▲], Down[▼], [2]

OnView®:

Power, Mute,[1], Up[▲], Down[▼], [2]
Auto image adjust, Contrast/Brightness, Audio adjust: Volume,
mute, Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user
colour [R, G, B] Information, Manual image adjust: H/V position,
Horizontal size, fine tune, sharpness, dynamic contrast, aspect
ratio, Eco mode, Setup menu: Language select, resolution
notice, OSD position, OSD timeout, OSD background, memory
recall

GESTION ALIMENTATION

VESA 100mmx100mm
ERGONOMIE

Inclinaison: 20˚~-5˚

Rotation horizontale: 360˚(180 ˚left / 180 ˚right)

Réglage de la hauteur: 0~80mm
AUDIO

Haut-parleurs: 2 x 2 watt
POIDS

Brut: 7.1 kg

Net: 5.2 kg
CONDITIONS D'EXPLOITATION

Humidité: 10-90%(Non condensed)

Température: 0-40°C(32-104°F)

Ordinateur:	VGA up to 1920×1080 non-interlaced
Mac®:	Mac os, up to 1920×1080

Physique avec support:	511mmx412mmx230mm
Physique sans support:	511mmx306mmx62mm

Synchronisation:	H/V Separated
Numérique:	DVI-D(TMDS, 100 ohms)
Analogique:	RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Fréquence:	Fh: 24-82kHz, Fv: 50-75Hz

Analogique:	15 pin mini D-sub×1
Numérique:	DVI-D
USB:	down stream x 2 / up stream x 1
Audio:	3.5 mm Audio in
Alimentation:	Built-in power Adapter, 3-Pin plug

Tension:	AC 100-240V(Universal); 50/60Hz(Switch)
Consommation:	42W typical
Mode Eco:	Optimize 31W (typ.) / conserve 26W (typ.)
Mode Economie (W):	≦0.5W

Inclinaison:	20˚~-5˚
Rotation horizontale:	360˚(180 ˚left / 180 ˚right)
Réglage de la hauteur:	0~80mm

Humidité:	10-90%(Non condensed)
Température:	0-40°C(32-104°F)

Brut:	7.1 kg
Net:	5.2 kg
