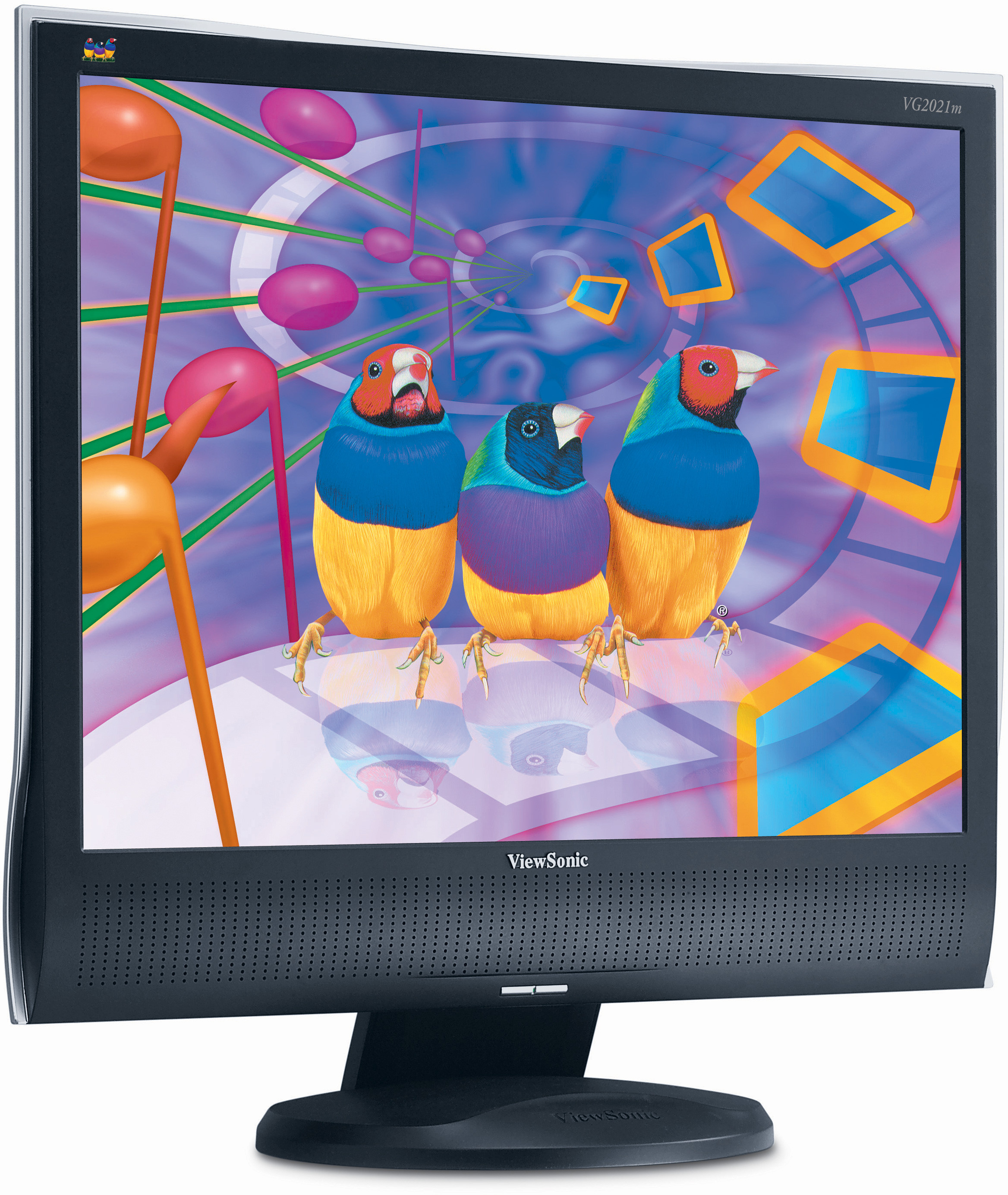

ViewSonic VG2021m 51cm / 20" MEDIA GRAPHICS SERIES LCD MONITOR

Clé Caractéristiques

Produit Description

ViewSonic’s VG2021m 51cm / 20" sleek two-tone LCD is your top choice in high-performance multimedia monitors. Class-leading features like ClearMotiv™ 8ms broadcast-quality video response DELIVER SUPERIOR CLARITY AND PERFECT FOCUS WHEN VIEWING MOVING IMAGES. You will enjoy a superb multimedia experience with the bezel-integrated speakers. Crystal-clear pictures featuring 300cd/m² brightness (typ.) along with ergonomic adjustments enhance productivity in graphic production, medical and financial fields. Professionals demanding high performance, elegant design, and great value will choose the ViewSonic VG2021m LCD monitor.

Visitez Nous

www.viewsonic.com

LCD

Type:	50.80cm (20") TN colour TFT active matrix SXGA+ LCD
Rapport de contraste:	500:1 (typ.)
Angles de vue:	150° horizontal, 130° vertical (at 10:1) 170° horizontal, 155° vertical (at 5:1)
Luminosité:	300 cd/m² (typ.)
Zone d'affichage:	40.9cm horizontal x 30.6cm vertical; 50.8cm diagonal
Résolution optimale:	1400 x 1050
Temps de réponse:	8ms (off-on-off) (typ.)
Source lumière:	Long life, 50000 hrs. (typ.)
Surface panneau:	Anti-glare
Pas de pixel:	0.292mm
Prise en charge des couleurs:	16.2M colours (6-bit + 2-bit FRC)
Horloge pixel:	140MHz

COMPATIBILITÉ

Ordinateur: VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Mac®: Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
DIMENSIONS (MM)

Physique avec support: 458 x 465 x 205

Physique sans support: 459 x 404 x 61

Emballage (LxHxP): 520 x 520 x 160
CONTENU DE L'EMBALLAGE

LCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers)
AUDIO

Haut-parleurs: 2 x 2.5 watt integrated stereo speakers
CONNECTEURS

Analogique: 15-pin mini D-sub (detachable cable)

Alimentation: 3-pin AC plug (CEE22)

Audio: 3.5mm stereo audio line-in
ALIMENTATION

Tension: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consommation: 55 watt (max.), <1 watt in power save mode

COMMANDES

De base:	Power, menu [1], down, up, select [2], mute
OSD:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), audio (volume, mute), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

CONDITIONS D'EXPLOITATION

Température: 5°C – 35°C

Humidité: 20% – 80% (non-condensation)
POIDS

Net avec support: 6.2kg
ENTRéE VIDéO

Fréquence: Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz

Synchronisation: H/V separated (TTL)

Analogique: RGB analogue (0.7 Vp-p , 75 ohms)
GESTION ALIMENTATION

Meets TCO’03 and Energy Star standards
SÉCURITÉ

Kensington® security port
MONTAGE MURAL

VESA® FPMPMI 75mm x 75mm

Ordinateur:	VGA up to 1400 x 1050 non-interlaced (@ 60Hz preferred)
Mac®:	Power Mac™ G3/G4/G5 up to 1400 x 1050 non-interlaced (@ 60Hz preferred)

Physique avec support:	458 x 465 x 205
Physique sans support:	459 x 404 x 61
Emballage (LxHxP):	520 x 520 x 160

Analogique:	15-pin mini D-sub (detachable cable)
Alimentation:	3-pin AC plug (CEE22)
Audio:	3.5mm stereo audio line-in

Tension:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consommation:	55 watt (max.), <1 watt in power save mode

Température:	5°C – 35°C
Humidité:	20% – 80% (non-condensation)

Fréquence:	Fh: 30 ~ 82kHz, Fv: 56 ~ 76Hz
Synchronisation:	H/V separated (TTL)
Analogique:	RGB analogue (0.7 Vp-p , 75 ohms)
