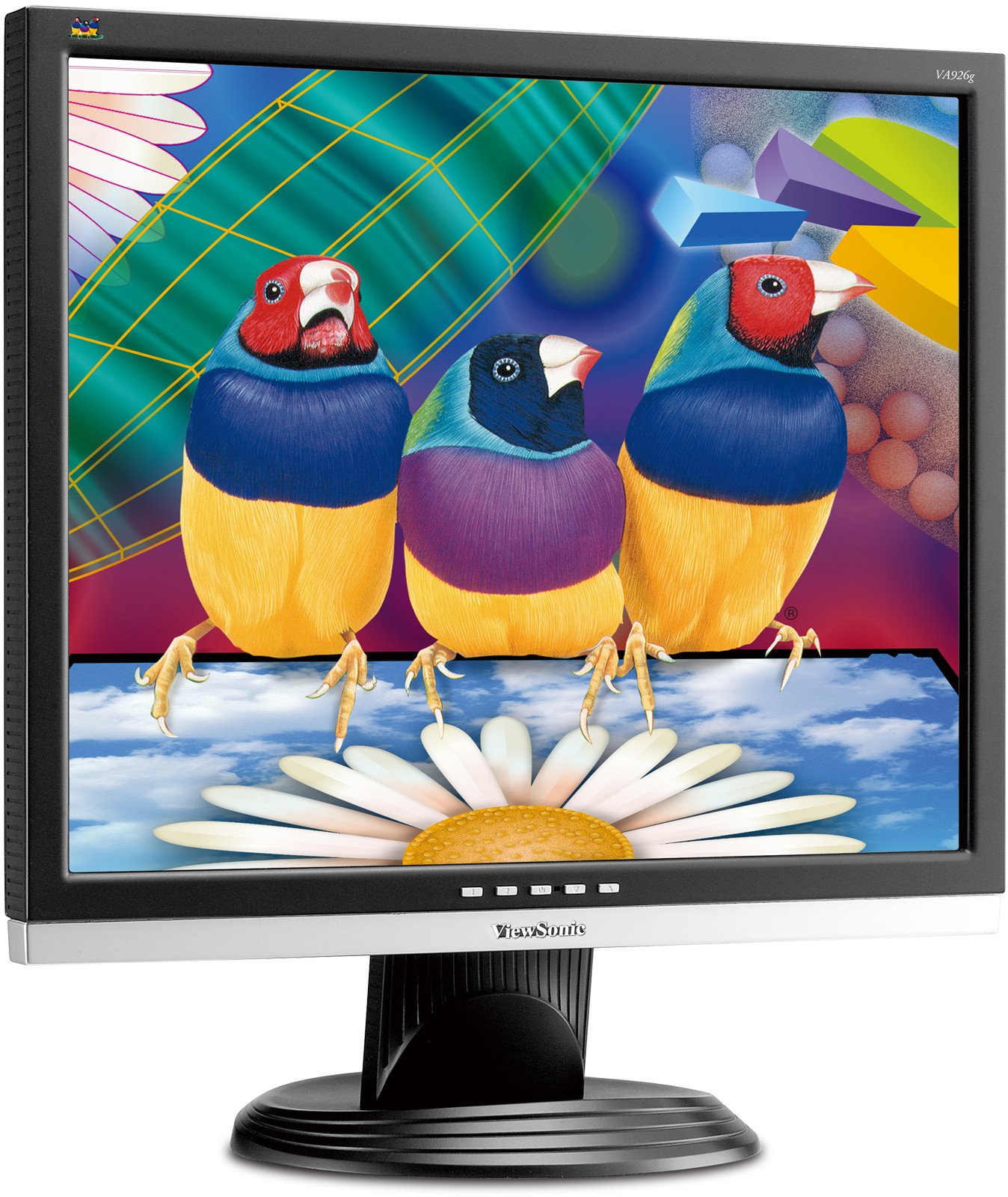

ViewSonic VA926g 48cm/19" LED DISPLAY

LCD

Rapport de contraste:	1000:1
Angles de vue:	170° horizontal, 160° vertical
Résolution optimale:	1280×1024
Temps de réponse:	5ms (typical)
Source lumière:	40,000 (typical)
Surface panneau:	Anti-Glare
Pas de pixel:	0.294 × 0.294 (mm)
Prise en charge des couleurs:	16.7 Millions
Taille:	48cm/19” TN colour TFT active matrix SXGA LCD
Luminosité:	250cd/㎡ (Typical)
Rapport de contraste dynamique:	100,000:1

COMPATIBILITÉ

Ordinateur: VGA up to 1280×1024 Non Interlaced

Mac®: 1280×1024 Non Interlaced
ENTRéE

Synchronisation: H/V Sperate(TTL)

Numérique: DVI-D(TMDS,100 ohm)

Analogique: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Fréquence: 24–82kHz / 50–75Hz
CONNECTEURS

Analogique: 15-pin mini D-Sub

Numérique: 24-pin DVI-D

Alimentation: 3-pin AC plug (CEE22)
ALIMENTATION

Tension: AC 100-240V (Universal); 50/60Hz(auto switch), internal power supply

Consommation: 25 W (typical)

Mode Economie (W): <1W

COMMANDES

De base:	Power, menu [1], up, down, select [2]
OSD:	Auto image adjust, contrast, brightness, ViewMatchcolour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall

MONTAGE MURAL

100 x 100 mm
POIDS

Net: 4.1 kg (9.02lbs)
CONDITIONS D'EXPLOITATION

Humidité: 20 - 90 (%)

Température: 0 - 40 (°C) / 32 - 104 (°F)

Ordinateur:	VGA up to 1280×1024 Non Interlaced
Mac®:	1280×1024 Non Interlaced

Tension:	AC 100-240V (Universal); 50/60Hz(auto switch), internal power supply
Consommation:	25 W (typical)
Mode Economie (W):	<1W

Humidité:	20 - 90 (%)
Température:	0 - 40 (°C) / 32 - 104 (°F)
